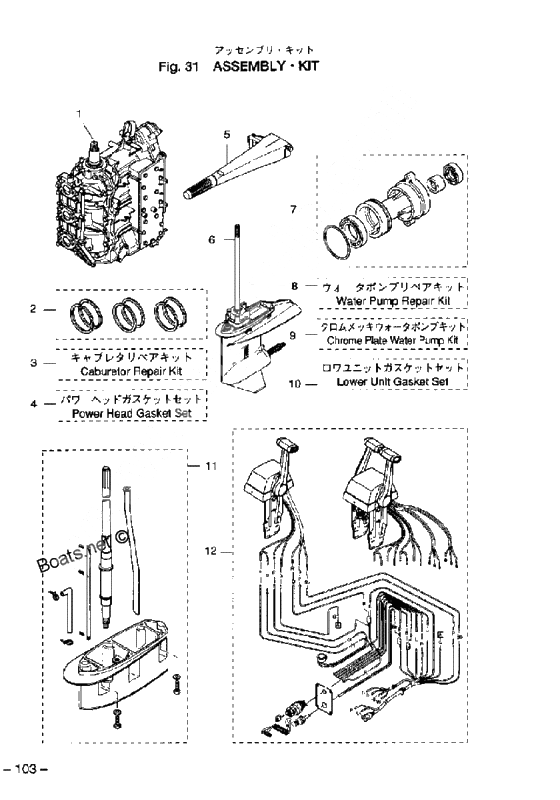

Assembly kit для Tohatsu M70B - 2002 года выпуска

№

Артикул

Название
1

3F3B87110-0 Engine short block
INCL. ENGINE BASE GASKET & SPARK PLUGS

Engine short block
INCL. ENGINE BASE GASKET & SPARK PLUGS

443 970 ₽
2

3F3-00015-1 Piston ring 2nd, 0. 5mm 0/s

Piston ring 2nd, 0. 5mm 0/s

1 330 ₽
2

3F3-87123-2 Кольца поршневые

Кольца поршневые

7 610 ₽
2

3F3-00011-2 New part

New part

1 510 ₽
2

3F3-00012-1 New part

New part

1 320 ₽
2

3F3-87124-2 Piston ring set (0.5)

Piston ring set (0.5)

8 330 ₽
2

3F3-00014-2 Piston ring 1st, 0. 5mm 0/s

Piston ring 1st, 0. 5mm 0/s

1 760 ₽
3

3F3-03232-0 Arm Pin Float

Arm Pin Float

280 ₽
3

334-03242-0 Игольчатый клапан

Игольчатый клапан

150 ₽
3

346-03240-0 Float Valve

Float Valve

840 ₽
3

3F3-87122-1 Carburetor Rerair Kit

Carburetor Rerair Kit

18 080 ₽
3

344-03244-0 Clip

Clip

550 ₽
3

3F3-02012-0 O-Ring

O-Ring

210 ₽
3

3F3-03234-0 Screw arm pin

Screw arm pin

140 ₽
3

3F3-03222-0 O-ring float chamber

O-ring float chamber

670 ₽
3

346-03256-0 Rubber cap

Rubber cap

570 ₽
3

922503-6414 Stud Bolt

Stud Bolt

190 ₽
3

3F3-03182-0 Gaket,carburetor cover

Gaket,carburetor cover

900 ₽
3

3F3-03231-0 Float

Float

2 420 ₽
3

336-03293-0 O-Ring

O-Ring

300 ₽
4

126-00121-0 Oil seal 30-45-8

Oil seal 30-45-8

1 260 ₽
4

3F3-01303-0 Gasket, engine base

Gasket, engine base

750 ₽
4

3B7-09002-0 O-Ring

O-Ring

460 ₽
4

3F3-01215-0 Oil seal 16.8-28-8

Oil seal 16.8-28-8

570 ₽
4

3C8-09082-0 Gasket blind plate

Gasket blind plate

130 ₽
4

3F3-87121-1 Power Head Gasket Set

Power Head Gasket Set

21 460 ₽
4

346-04901-0 Gasket fuel pump

Gasket fuel pump

90 ₽
4

3F3-02305-1 Gasket,exhaust cover

Gasket,exhaust cover

550 ₽
4

3F3-01005-0 Gasket, Cyl. Head

Gasket, Cyl. Head

3 590 ₽
4

3B7-02235-0 O-Ring A

O-Ring A

420 ₽
4

3F3-01024-0 New part

New part

830 ₽
4

3B7-02236-0 O???? b

O???? b

330 ₽
4

353-00108-0 O-Ring

O-Ring

450 ₽
4

353-01032-0 Прокладка крышки термостата

Прокладка крышки термостата

890 ₽
4

151-33159-0 Gasket,combination gauge

Gasket,combination gauge

250 ₽
4

3F3-02104-0 Gasket inlet manifold

Gasket inlet manifold

150 ₽
4

151-00053-0 O-Ring

O-Ring

210 ₽
4

3C8-71016-0 Gasket 36-52-2

Gasket 36-52-2

260 ₽
4

3F3-02418-0 Seal rubber air silencer

Seal rubber air silencer

600 ₽
5

3B7S63010-1 Handle ass'y

Handle ass'y

20 ₽
6

3F3S87302-0 Lower unit ass'y l
FOR TRANSOM L

Lower unit ass'y l
FOR TRANSOM L

20 ₽
6

3F3S87304-0 Lower unit ass'y lul
FOR TRANSOM XL

Lower unit ass'y lul
FOR TRANSOM XL

20 ₽
7

3A3S87323-0 Propeller shaft housing ass'y

Propeller shaft housing ass'y

12 180 ₽
8

3B7-65021-1 Impeller (60/70b-c 90a)

Impeller (60/70b-c 90a)

3 590 ₽
3B7-65021-2 Impeller (60/70b-c 90a)

Impeller (60/70b-c 90a)

6 430 ₽
8

941303-0800 Spring Washer

Spring Washer

70 ₽
8

3B7-65022-0 Key, water pump impeller

Key, water pump impeller

1 360 ₽
8

3B7-65011-0 New part

New part

1 270 ₽
8

3B7-65018-0 Прокладка насоса

Прокладка насоса

300 ₽
8

3F3-65025-1 Guide Plate Water Pump

Guide Plate Water Pump

1 130 ₽
8

3B7-65029-0 Gasket, guide plate

Gasket, guide plate

300 ₽
8

3F3-87322-0 ウォ-タ-ポンプリペアキット

ウォ-タ-ポンプリペアキット

11 020 ₽
8

940103-0800 Washer -> 940113-0800

Washer -> 940113-0800

120 ₽
9

3F3-65231-0 Chrome Plated Water Pump Kit

Chrome Plated Water Pump Kit

11 020 ₽
9

3B7-65238-0 Liner, chrome plated water pump case

Liner, chrome plated water pump case

8 370 ₽
9

3F3-65239-1 Guide plate,chrome plated

Guide plate,chrome plated

3 980 ₽
10

3F3-02312-0 Gasket exhaust pipe

Gasket exhaust pipe

220 ₽
10

3B7-66023-0 O-Ring

O-Ring

570 ₽
10

3F3-61181-0 Gasket exhaust housing

Gasket exhaust housing

690 ₽
10

353-60103-0 O-Ring

O-Ring

270 ₽
10

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
10

353-60111-0 New part

New part

990 ₽
10

3B7-60016-0 O-Ring

O-Ring

100 ₽
10

3B7-60219-0 Packing, Trim Tab

Packing, Trim Tab

540 ₽
10

3F3-60223-0 Oil Seal 22-37-8

Oil Seal 22-37-8

770 ₽
10

3F3-87321-1 Lower Unit Gasket Set

Lower Unit Gasket Set

5 050 ₽
10

345-65015-0 O-Ring

O-Ring

360 ₽
10

3F3-61012-0 Gasket drive shaft housing

Gasket drive shaft housing

690 ₽
10

345-66021-0 O-Ring

O-Ring

290 ₽
11

3N4S87314-0 Extension housing kit ul
FOR TRANSOM XL

Extension housing kit ul
FOR TRANSOM XL

20 ₽
12

3B7-84540-1 Twin top mount remocon kit(rc6ft)
FOR TWIN ENGINES

Twin top mount remocon kit(rc6ft)
FOR TWIN ENGINES

161 860 ₽
12

3B7-84490-1 Top mount remote control ass'y kit(rc6f)
FOR SINGLE ENGINE

Top mount remote control ass'y kit(rc6f)
FOR SINGLE ENGINE

85 890 ₽
