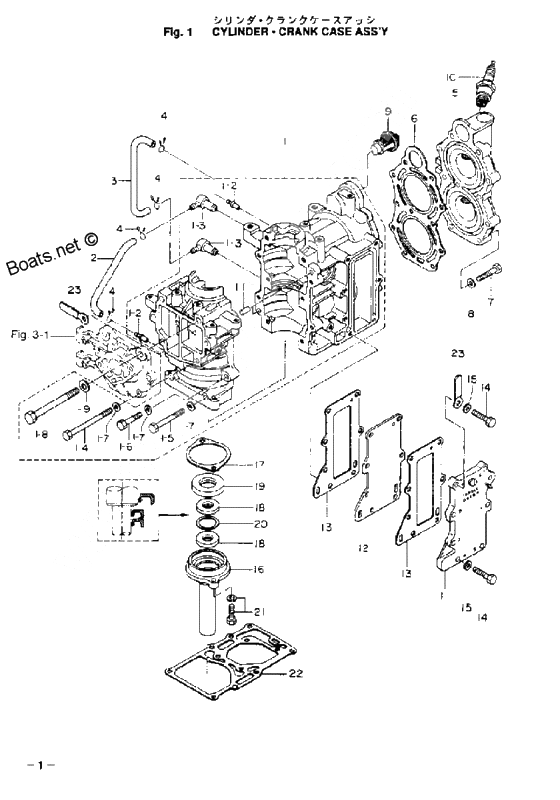

Cylinder crank assembly для Tohatsu M9.8B - 2002 года выпуска
-
№АртикулНазвание
-
13B2-00030-0 Crankshaft assyCrankshaft assy
-
3B2-00069-0 Crankshaft assyCrankshaft assy
-
13K9B01100-0 Cylinder & crank case assyCylinder & crank case assy
-
1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
13B2B01100-1 Cylinder & crankcase assy
8B#40401-Cylinder & crankcase assy
8B#40401- -
2338-01131-1 ЗолотникЗолотник
-
33B2-01160-0 Check valve nipple assyCheck valve nipple assy
-
4338-01133-0 ClipClip
-
4916129-0675 BoltBolt
-
53K9B01001-0 New partNew part
-
5916129-0650 BoltBolt
-
7940121-0600 WasherWasher
-
8910124-0880 BoltBolt
-
9940121-0800 WasherWasher
-
9350-01030-1 ThermostatThermostat
-
113B2B02300-0 Exhaust cover outerExhaust cover outer
-
123K9B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
133K9-02305-0 Gasket exhaust coverGasket exhaust cover
-
14910124-0625 BoltBolt
-
163B2-01210-0 Head crank caseHead crank case
-
173B2-01214-0 Gasket Crank Case HeadGasket Crank Case Head
-
183B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
193B2-00122-0 Oil seal 20-40-7Oil seal 20-40-7
-
203B2-01217-0 Spacer 22-27.5-1Spacer 22-27.5-1
-
21910103-6620 BoltBolt
-
223B2-01303-0 New partNew part
-
3B2-01303-2 New partNew part
-
23309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
