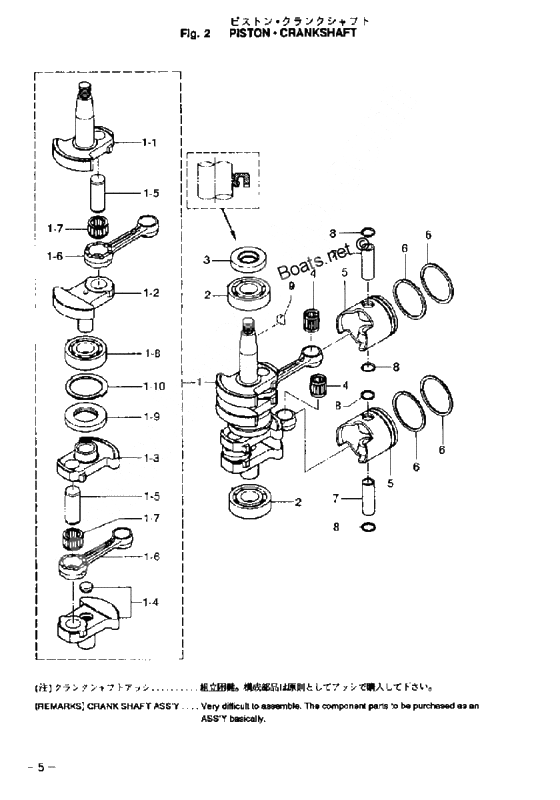

Piston & crank shaft для Tohatsu M9.8B - 2002 года выпуска
-
№АртикулНазвание
-
13B2B02010-0 Inlet ManifoldInlet Manifold
-
1-13B2-00031-0 Вал коленчатыйВал коленчатый
-
1-10369-00115-0 Retainer ball bearingRetainer ball bearing
-
1-23B2-00032-0 Crankshaft bCrankshaft b
-
1-33B2-00033-0 Кольцо стопорноеКольцо стопорное
-
1-43B2-00034-0 Crankshaft dCrankshaft d
-
1-53B2-00061-0 Crank pinCrank pin
-
1-63B2-00040-0 Connecting RodConnecting Rod
-
1-73B2-00043-0 Needle BearingNeedle Bearing
-
1-89603-3-6204 Ball BearingBall Bearing
-
1-93B2-00051-0 Oil seal 25-47-7Oil seal 25-47-7
-
3101-00121-0 Oil seal,20-35-7Oil seal,20-35-7
-
4338-00042-0 Needle BearingNeedle Bearing
-
53B2-00001-0 Piston (std)Piston (std)
-
53B2-00004-0 Piston (0.5mm o/s)
OPTPiston (0.5mm o/s)
OPT -
63B2-00011-0 Кольцо поршняКольцо поршня
-
63B2-00014-0 Кольцо поршня
OPTКольцо поршня
OPT -
73B2-00021-0 Палец поршняПалец поршня
-
8350-00024-1 Clip piston pinClip piston pin
-
9338-00131-0 Magneto KeyMagneto Key
