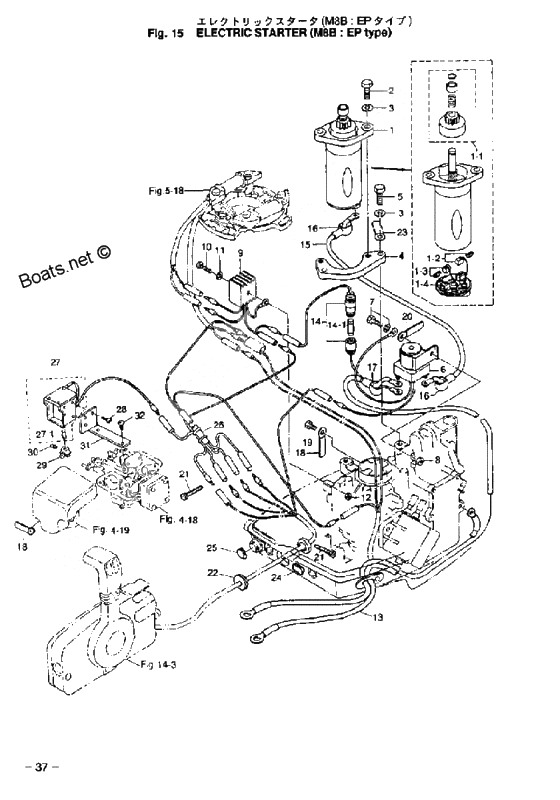

Electric starter для Tohatsu M9.8B - 2002 года выпуска
-
№АртикулНазвание
-
1350-76010-0 New partNew part
-
1-1350-76015-0 Pinion Ass'yPinion Ass'y
-
1-2350-76012-0 Щётка карбоноваяЩётка карбоновая
-
1-3350-76013-0 Carbon brush (-)Carbon brush (-)
-
2916103-0830 BoltBolt
-
3941303-0800 Spring WasherSpring Washer
-
4350-76011-0 Bracket starter motorBracket starter motor
-
6346-76040-0 Starter SolenoidStarter Solenoid
-
7910103-6620 BoltBolt
-
8930103-0600 NutNut
-
93B2-76060-0 Rectifier completeRectifier complete
-
10921503-0525 Stud BoltStud Bolt
-
11941303-0500 Spring WasherSpring Washer
-
12930103-0500 NutNut
-
133B2-76120-0 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
143B2-76062-0 Fuse wire ass'yFuse wire ass'y
-
14-1346-76212-0 Fuse (15a)Fuse (15a)
-
153B2-76147-1 STARTER CORDSTARTER CORD
-
163A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
173B7-76145-0 Terminal CapTerminal Cap
-
18309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
20398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
21353-84398-0 Band Lead WireBand Lead Wire
-
22345-67193-0 Grommet,16-2.5Grommet,16-2.5
-
23345-06917-1 Clamp 9-20uClamp 9-20u
-
243B2-63624-0 GrommetGrommet
-
25345-67117-0 New partNew part
-
263B2-76166-0 Assist wire complateAssist wire complate
-
27361-76050-0 Choke SolenoidChoke Solenoid
-
28921503-6408 Stud BoltStud Bolt
-
29346-76057-0 Hook choke solenoidHook choke solenoid
-
313B2-76055-0 Bracket choke solenoidBracket choke solenoid
-
32921503-0510 Stud BoltStud Bolt
Все узлы модели:
- Assembly kit
- Bracket & reverse lock
- Carburetor
- Cylinder crank assembly
- Drive shaft housing - gear case
- • Electric starter
- Fuel tank (remote)
- Gauges, rigging & maintenance
- Gear shift
- Inlet reed valve
- Magneto
- Motor cover
- Piston & crank shaft
- Recoil starter - starter lock
- Remote control
- Steering handle mf-ef type
- Throttle mechanism
- Transmission - water pump
