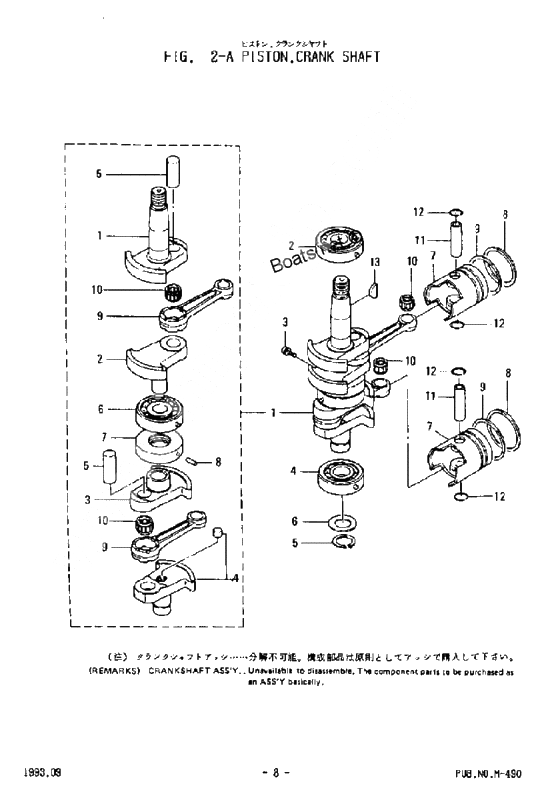

Piston & crank shaft для Tohatsu M9.9C - 2002 года выпуска
-
№АртикулНазвание
-
00350-00001-0 Piston (std)
NS18DPiston (std)
NS18D -
00351-00014-0 New part
NS15C,9.9CNew part
NS15C,9.9C -
00350-00030-0 Crankshaft assy (also needs 9311211600m)
NS18D,15C,9.9CCrankshaft assy (also needs 9311211600m)
NS18D,15C,9.9C -
3M2-00069-1 Crankshaft assy (also needs 9311211600m)Crankshaft assy (also needs 9311211600m)
-
00351-00001-0 Piston std
NS15C,9.9CPiston std
NS15C,9.9C -
00350-00042-0 New part
NS18D,15C,9.9CNew part
NS18D,15C,9.9C -
00350-00004-0 Piston (0.5 o/s)
NS18DPiston (0.5 o/s)
NS18D -
00350-00021-0 Палец поршня
NS18DПалец поршня
NS18D -
00351-00004-0 Piston (0.5mm o/s)
NS15C,9.9CPiston (0.5mm o/s)
NS15C,9.9C -
00332-00021-0 Палец поршня
NS15C,9.9CПалец поршня
NS15C,9.9C -
00350-00011-0 Кольцо поршня
NS18DКольцо поршня
NS18D -
00945-12250-0 C-Ring
NS18D,15C,9.9CC-Ring
NS18D,15C,9.9C -
00350-00024-1 Clip piston pin
NS18D,15C,9.9CClip piston pin
NS18D,15C,9.9C -
00350-00014-0 Кольцо поршня
NS18DКольцо поршня
NS18D -
00346-00116-0 Spacer main bearing
NS18D,15C,9.9CSpacer main bearing
NS18D,15C,9.9C -
00334-00131-0 Key Magneto
NS18D,15C,9.9CKey Magneto
NS18D,15C,9.9C -
003G2-00014-0 Piston ring 0.5o/s
NS15C,9.9CPiston ring 0.5o/s
NS15C,9.9C -
02350-00032-0 Crankshaft b
NS18D,15C,9.9CCrankshaft b
NS18D,15C,9.9C -
03350-00033-0 Кольцо стопорное
NS18D,15C,9.9CКольцо стопорное
NS18D,15C,9.9C -
04350-00034-0 Crankshaft d
NS18D,15C,9.9CCrankshaft d
NS18D,15C,9.9C -
05350-00061-0 Crank pin
NS18D,15C,9.9CCrank pin
NS18D,15C,9.9C -
069603-3-6305 Подшипник главный
NS18D,15C,9.9CПодшипник главный
NS18D,15C,9.9C -
07350-00051-0 Labyrinth packing
NS18D,15C,9.9CLabyrinth packing
NS18D,15C,9.9C -
08951407-0308 Spring Washer
NS18D,15C,9.9CSpring Washer
NS18D,15C,9.9C -
09350-00040-0 Connecting Rod
NS18D,15C,9.9CConnecting Rod
NS18D,15C,9.9C -
10350-00043-0 Big end bearing
NS18D,15C,9.9CBig end bearing
NS18D,15C,9.9C
