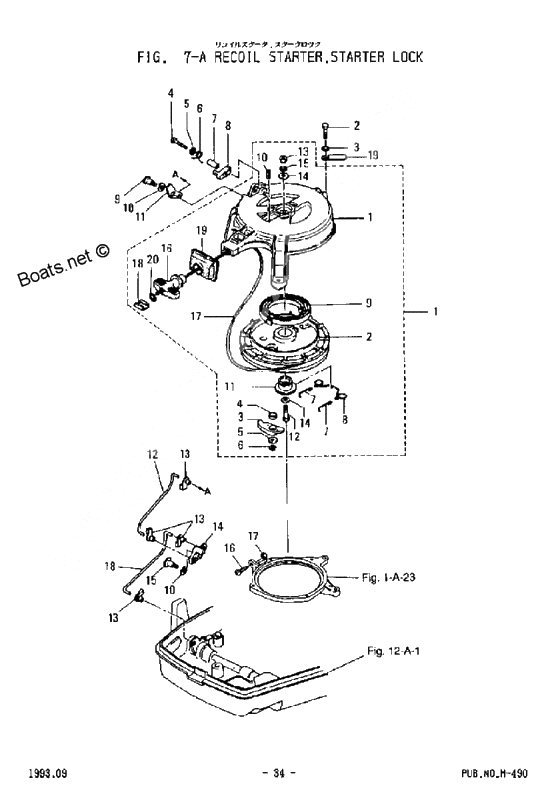

Recoil starter, starter lock для Tohatsu M9.9C - 2002 года выпуска
-
№АртикулНазвание
-
00338-05252-0 Lock starter
NS18D,15C,9.9CLock starter
NS18D,15C,9.9C -
00350-05227-0 Shaft, throttle stopper
NS18D,15C,9.9CShaft, throttle stopper
NS18D,15C,9.9C -
00350-05000-0 Recoil starter ass'y
NS18D,15C,9.9CRecoil starter ass'y
NS18D,15C,9.9C -
00338-05254-0 Cam shaft
NS18D,15C,9.9CCam shaft
NS18D,15C,9.9C -
00921-56052-5 Adjust screw, throttle stopper
NS18D,15C,9.9CAdjust screw, throttle stopper
NS18D,15C,9.9C -
00941403-0800 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
00940-13060-0 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
00350-05222-0 Stopper link throttle
NS18D,15C,9.9CStopper link throttle
NS18D,15C,9.9C -
00350-05253-0 Cam, starter lock
NS18D,15C,9.9CCam, starter lock
NS18D,15C,9.9C -
00940-13040-0 Washer, consent
NS18D,15C,9.9CWasher, consent
NS18D,15C,9.9C -
00309-06972-0 Clamp,6.5-47.5P
NS18D,15C,9.9CClamp,6.5-47.5P
NS18D,15C,9.9C -
00350-05217-0 Lock link starter
NS18D,15C,9.9CLock link starter
NS18D,15C,9.9C -
00338-05216-0 Spring starter lock shaft
NS18D,15C,9.9CSpring starter lock shaft
NS18D,15C,9.9C -
00345-05223-0 D3.5 rod snap
NS18D,15C,9.9CD3.5 rod snap
NS18D,15C,9.9C -
00338-05255-0 Coller starter lock shaft
NS18D,15C,9.9CColler starter lock shaft
NS18D,15C,9.9C -
00350-05211-0 Throttle stopper
NS18D,15C,9.9CThrottle stopper
NS18D,15C,9.9C -
01350-05105-0 Stater case
NS18D,15C,9.9CStater case
NS18D,15C,9.9C -
02350-05104-1 Reel
NS18D,15C,9.9CReel
NS18D,15C,9.9C -
03345-05003-1 Ratchet
NS18D,15C,9.9CRatchet
NS18D,15C,9.9C -
04345-05135-1 Bushing
NS18D,15C,9.9CBushing
NS18D,15C,9.9C -
05346-67115-0 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
06945-33050-0 E-Ring
NS18D,15C,9.9CE-Ring
NS18D,15C,9.9C -
07350-05123-0 Ratchet guide a
NS18D,15C,9.9CRatchet guide a
NS18D,15C,9.9C -
08350-05124-0 Ratchet guide b
NS18D,15C,9.9CRatchet guide b
NS18D,15C,9.9C -
09345-05004-0 Spring Washer
NS18D,15C,9.9CSpring Washer
NS18D,15C,9.9C -
10951403-0316 Spring Washer
NS18D,15C,9.9CSpring Washer
NS18D,15C,9.9C -
11350-05132-0 Вал стартера
NS18D,15C,9.9CВал стартера
NS18D,15C,9.9C -
12910114-0635 New part
NS18D,15C,9.9CNew part
NS18D,15C,9.9C -
13930103-0600 Nut
NS18D,15C,9.9CNut
NS18D,15C,9.9C -
14940-1D060-0 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
15941-3U060-0 Spring Washer
NS18D,15C,9.9CSpring Washer
NS18D,15C,9.9C -
16338-05019-0 Starter Handle
NS18D,15C,9.9CStarter Handle
NS18D,15C,9.9C -
17350-05013-1 Starter Rope
NS18D,15C,9.9CStarter Rope
NS18D,15C,9.9C -
18338-05131-0 Rope anchor
NS18D,15C,9.9CRope anchor
NS18D,15C,9.9C -
19350-05116-0 Seal plate, starter
NS18D,15C,9.9CSeal plate, starter
NS18D,15C,9.9C -
20350-05136-0 O-Ring
NS18D,15C,9.9CO-Ring
NS18D,15C,9.9C
