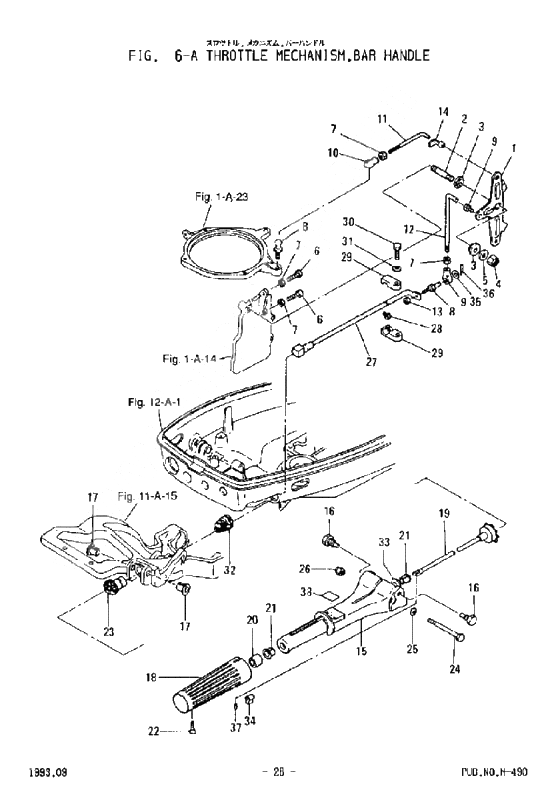

Throttle mechanism, bar handle для Tohatsu M9.9C - 2002 года выпуска
-
№АртикулНазвание
-
00398S63011-0 Handle a
NS18D,15C,9.9CHandle a
NS18D,15C,9.9C -
00945-33060-0 E-Ring
NS18D,15C,9.9CE-Ring
NS18D,15C,9.9C -
00353-83728-0 Cable Pin
NS18D,15C,9.9CCable Pin
NS18D,15C,9.9C -
353-83728-1 Cable PinCable Pin
-
00350-63046-0 Bushing
NS18D,15C,9.9CBushing
NS18D,15C,9.9C -
00369-72019-0 Label, throttle
NS18D,15C,9.9CLabel, throttle
NS18D,15C,9.9C -
00350-63711-1 Advancer Arm
NS18D,15C,9.9CAdvancer Arm
NS18D,15C,9.9C -
00346-63201-0 Bolt, handle a
NS18D,15C,9.9CBolt, handle a
NS18D,15C,9.9C -
00350-63063-0 Supporter, throttle shaft
NS18D,15C,9.9CSupporter, throttle shaft
NS18D,15C,9.9C -
00346-05234-0 New part
NS18D,15C,9.9CNew part
NS18D,15C,9.9C -
00921803-0525 Stud Bolt
NS18D,15C,9.9CStud Bolt
NS18D,15C,9.9C -
00915-21082-3 Stud Bolt
NS18D,15C,9.9CStud Bolt
NS18D,15C,9.9C -
00345-63207-0 Collar, 9.8-12-7.5
NS18D,15C,9.9CCollar, 9.8-12-7.5
NS18D,15C,9.9C -
00345-66226-0 Grommet, 17-3
NS18D,15C,9.9CGrommet, 17-3
NS18D,15C,9.9C -
003B7-05243-0 New part
NS18D,15C,9.9CNew part
NS18D,15C,9.9C -
00350-63064-0 Universal pinion
NS18D,15C,9.9CUniversal pinion
NS18D,15C,9.9C -
00345-63713-0 Bushing
NS18D,15C,9.9CBushing
NS18D,15C,9.9C -
00398-63012-0 Grip
NS18DGrip
NS18D -
00941403-1000 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
00350-63715-0 Advancer link rod
NS18D,15C,9.9CAdvancer link rod
NS18D,15C,9.9C -
00940-13060-0 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
00930-4K080-0 Nylon Nut
NS18D,15C,9.9CNylon Nut
NS18D,15C,9.9C -
003A0-63012-1 Grip
NS15C,9.9CGrip
NS15C,9.9C -
00398-63053-0 Spacer Throttle Shaft
NS18D,15C,9.9CSpacer Throttle Shaft
NS18D,15C,9.9C -
00398-63717-0 Link Rod
NS18D,15C,9.9CLink Rod
NS18D,15C,9.9C -
00930403-0600 Nylon Nut
NS18D,15C,9.9CNylon Nut
NS18D,15C,9.9C -
00334-66233-0 Bracket washer
NS18D,15C,9.9CBracket washer
NS18D,15C,9.9C -
00398-63041-0 Ось дросселя
NS18D,15C,9.9CОсь дросселя
NS18D,15C,9.9C -
00353-83719-0 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
00345-05224-0 Rod snap,5-2.5
NS18D,15C,9.9CRod snap,5-2.5
NS18D,15C,9.9C -
00350-63061-1 Throttle shaft b
NS18D,15C,9.9CThrottle shaft b
NS18D,15C,9.9C -
00921-56052-5 Adjust screw, throttle stopper
NS18D,15C,9.9CAdjust screw, throttle stopper
NS18D,15C,9.9C -
00345-63048-0 Rubber Throttle Shaft A
NS18D,15C,9.9CRubber Throttle Shaft A
NS18D,15C,9.9C -
00951603-0800 R-Pin
NS18D,15C,9.9CR-Pin
NS18D,15C,9.9C
