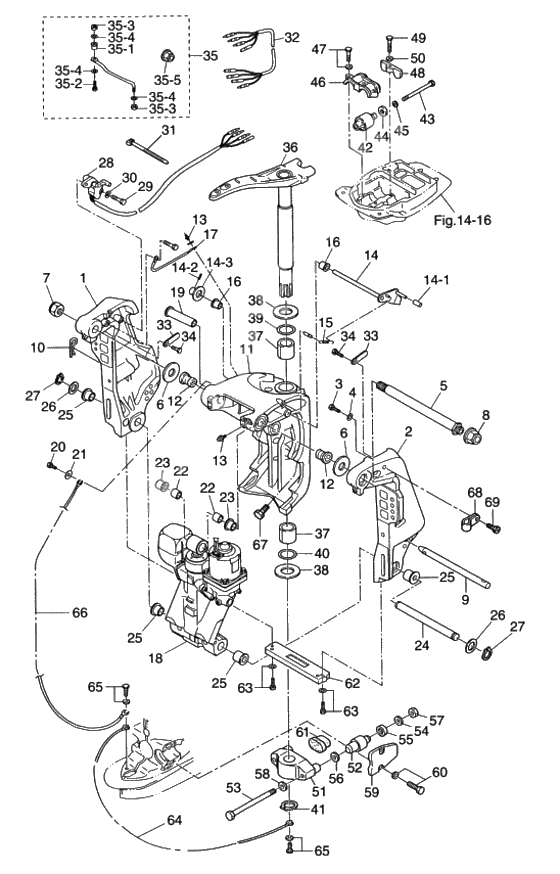

Bracket (1) (for ptt) для Tohatsu M70C - 2003 года выпуска
-
№АртикулНазвание
-
13E0S62112-0 Stern bracket r
STARBOARDStern bracket r
STARBOARD -
23E0S62113-1 Stern bracket l
PORTStern bracket l
PORT -
3910213-1020 BoltBolt
-
4940213-1000 WasherWasher
-
53E0-62191-1 Bracket Bolt Ass'yBracket Bolt Ass'y
-
63E0-62116-0 WasherWasher
-
7346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
8346-62127-0 Cap,Bracket Bolt
FOR F TYPECap,Bracket Bolt
FOR F TYPE -
93E0-62121-1 Thrust RodThrust Rod
-
103B7-62129-1 Pin, Thrust RodPin, Thrust Rod
-
113E0S62313-0 Swivel bracket ass'ySwivel bracket ass'y
-
123E0-62126-0 Bushing Bracket BoltBushing Bracket Bolt
-
13344-67177-0 МасленкаМасленка
-
143E0S62431-1 Tilt Stopper Ass'yTilt Stopper Ass'y
-
14-13E0-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
14-2951403-3516 New partNew part
-
14-3332-61315-0 WasherWasher
-
153E0-62473-1 Spring Tilt StopperSpring Tilt Stopper
-
16353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
173C8-62158-0 Ground Wire
L=130Ground Wire
L=130 -
183E0S77150-0 Power trim & tilt ass'yPower trim & tilt ass'y
-
193C8-77071-0 Upper Cylinder PinUpper Cylinder Pin
-
20910113-0612 BoltBolt
-
21345-05122-0 New partNew part
-
223C8-77075-0 New partNew part
-
233E0-77076-0 BushingBushing
-
243E0-77101-0 Cylinder pin lowerCylinder pin lower
-
253E0-77103-0 BushingBushing
-
26346-62412-1 WasherWasher
-
27945103-2200 ClipClip
-
283F3-72574-1 Гидроцилиндр
L=1700Гидроцилиндр
L=1700 -
29910113-0620 BoltBolt
-
303R0-66308-0 WasherWasher
-
31353-84398-0 Band Lead WireBand Lead Wire
-
323F3-72573-1 Extension cord trim sender
L=5300Extension cord trim sender
L=5300 -
33309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
34910113-0612 BoltBolt
-
353E0-84905-0 Drag link assyDrag link assy
-
35-13E0-84914-0 Spacer Drag Link HSpacer Drag Link H
-
35-23E0-84917-0 Bolt 3/8-50Bolt 3/8-50
-
35-3353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
35-4353-84916-0 WasherWasher
-
35-53F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
363B7S62010-1 Steering shaft ass'y
FOR P-PTT TYPESteering shaft ass'y
FOR P-PTT TYPE -
373B7-62417-0 BushingBushing
-
383B7-62423-1 Thrust PlateThrust Plate
-
393B7-62414-0 Seal Ring, Steering ShaftSeal Ring, Steering Shaft
-
403B7-62415-0 O-RingO-Ring
-
41945103-3200 C-RingC-Ring
-
423B7-61301-0 Upper Mount RobberUpper Mount Robber
-
433B7-61307-1 Bolt, upper mount rubberBolt, upper mount rubber
-
443C7-61338-0 Damper RubberDamper Rubber
-
453B7-61335-0 WasherWasher
-
463B7S61341-1 Cap, mount rubber upperCap, mount rubber upper
-
47910113-5835 BoltBolt
-
483B7-61339-0 Damper, Mount Rubber UpperDamper, Mount Rubber Upper
-
49910113-0625 BoltBolt
-
503R0-66308-0 WasherWasher
-
52353-61302-0 Lower Mount RubberLower Mount Rubber
-
53353-61321-3 BoltBolt
-
54353-61334-0 WasherWasher
-
553C7-61338-0 Damper RubberDamper Rubber
-
56353-61315-1 WasherWasher
-
573B7-61324-0 NutNut
-
58940213-1200 WasherWasher
-
593B7S61342-0 Cap lower mount rubberCap lower mount rubber
-
603N4-61343-0 Bolt,8-25Bolt,8-25
-
61353-61336-0 Damper RubberDamper Rubber
-
623C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
63910103-6630 BoltBolt
-
643A3-62396-0 New part
L=110New part
L=110 -
65910113-5612 BoltBolt
-
663B7-62396-0 Ground Wire
L=210Ground Wire
L=210 -
673B7-77085-1 Bolt 12-20Bolt 12-20
-
68345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
69921503-5612 Stud BoltStud Bolt
