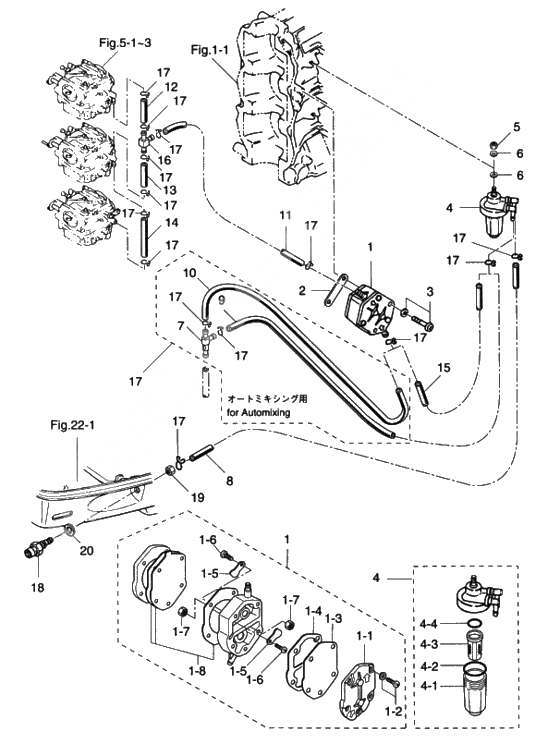

Fuel line для Tohatsu M70C - 2003 года выпуска
-
№АртикулНазвание
-
1356-04000-1 New partNew part
-
1-1334-04004-0 Fuel CoverFuel Cover
-
1-2922512-6528 Stud BoltStud Bolt
-
1-3334-04005-0 New partNew part
-
1-4334-04007-0 Gasket B DiaphragmGasket B Diaphragm
-
1-5356-04044-0 Check ValveCheck Valve
-
1-6921722-0306 Stud BoltStud Bolt
-
1-7930222-0300 NutNut
-
1-8356-04030-0 New partNew part
-
2346-04901-0 Gasket fuel pumpGasket fuel pump
-
3921503-6640 Stud BoltStud Bolt
-
43B7-02230-0 New partNew part
-
4-13B7-02237-0 CupCup
-
4-23B7-02235-0 O-Ring AO-Ring A
-
4-33B7-02234-0 FilterFilter
-
4-43B7-02236-0 O???? bO???? b
-
5930106-0800 Nut
OR 930113-0800Nut
OR 930113-0800 -
6940113-0800 Washer
OR 940103-0800Washer
OR 940103-0800 -
73C8-09075-0 Check Valve Complete
FOR AUTO-MIXINGCheck Valve Complete
FOR AUTO-MIXING -
898AB-5-0280 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
998AB-5-1000 New part
FOR AUTO-MIXINGNew part
FOR AUTO-MIXING -
1098AB-5-1000 New part
FOR AUTO-MIXINGNew part
FOR AUTO-MIXING -
1198AB-5-1000 New partNew part
-
1398AB-5-1000 New partNew part
-
1598AB-5-1000 New part
FOR PREMIXINGNew part
FOR PREMIXING -
16394-70013-0 Pipu Joint T-typePipu Joint T-type
-
17338-02215-0 Clip
FOR AUTO-MIXINGClip
FOR AUTO-MIXING -
183B2-70260-1 New partNew part
-
19931103-1000 NutNut
-
20336-70112-0 Gasket 10.2-16-0.5Gasket 10.2-16-0.5
