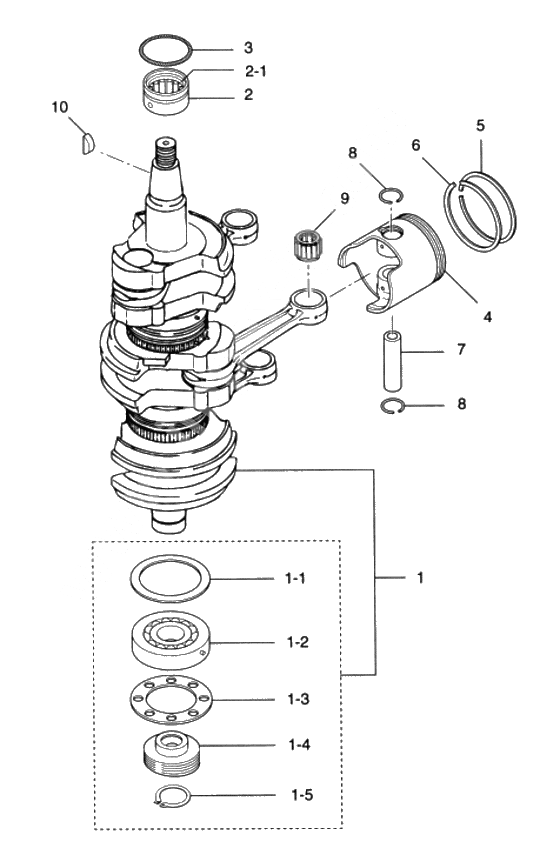

Piston & crank shaft для Tohatsu M70C - 2003 года выпуска
-
№АртикулНазвание
-
13F3-00030-0 Crankshaft Ass'yCrankshaft Ass'y
-
1-1353-00115-0 WasherWasher
-
1-2353-00118-0 Ball bearing 6306Ball bearing 6306
-
1-33F3-00115-0 WasherWasher
-
1-43F3-09060-0 Drive gear, oil pumpDrive gear, oil pump
-
1-5945107-3000 C-RingC-Ring
-
2353-00113-0 Needle BearingNeedle Bearing
-
2-1353-00121-0 Oil SealOil Seal
-
3353-00108-0 O-RingO-Ring
-
43F3-00001-0 New partNew part
-
43F3-00004-0 Piston, 0.5mm 0/s
OPTIONPiston, 0.5mm 0/s
OPTION -
53F3-00011-2 New partNew part
-
53F3-00014-2 Piston ring 1st, 0. 5mm 0/s
OPTIONPiston ring 1st, 0. 5mm 0/s
OPTION -
63F3-00012-1 New partNew part
-
63F3-00015-1 Piston ring 2nd, 0. 5mm 0/s
OPTIONPiston ring 2nd, 0. 5mm 0/s
OPTION -
73F3-00021-0 Палец поршняПалец поршня
-
8353-00024-1 ClipClip
-
93F3-00042-1 Needle bearing 20-25-24Needle bearing 20-25-24
-
10334-00131-0 Key MagnetoKey Magneto
