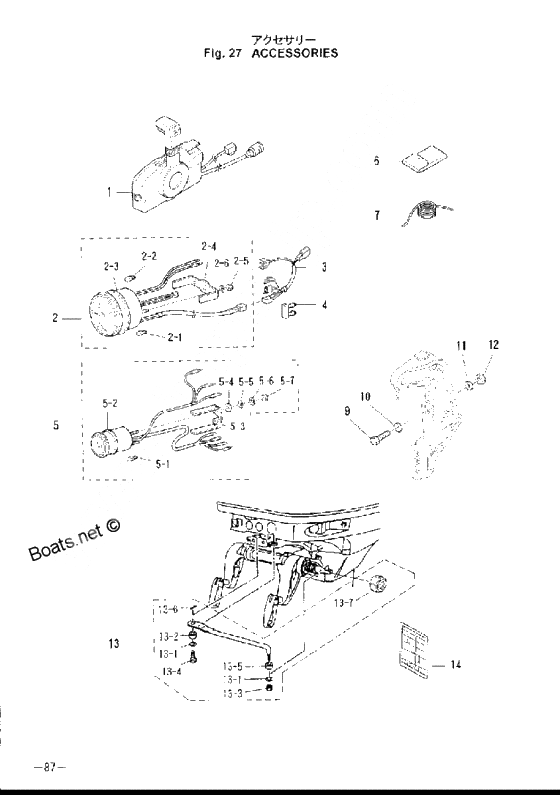

Accessories для Tohatsu MD40A - 2003 года выпуска
-
№АртикулНазвание
-
13T5-84500-0 Remote control box ass'y(rc5f)
UniqueRemote control box ass'y(rc5f)
Unique -
23T5-72640-0 ТАХОМЕТР
UniqueТАХОМЕТР
Unique -
2-13B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-33B7-72656-0 Damper, MeterDamper, Meter
-
2-43B7-72661-0 Plate, FittingPlate, Fitting
-
2-5930203-0500 NutNut
-
2-6941303-0500 Spring WasherSpring Washer
-
33T5-72537-0 Lead wire, meter
Unique, L=8000Lead wire, meter
Unique, L=8000 -
4353-76037-0 Plug Cable Terminal
UniquePlug Cable Terminal
Unique -
53E0-72571-0 Trim meter ass'y
Unique, for P TypeTrim meter ass'y
Unique, for P Type -
5-23B7-72655-0 Damper, MeterDamper, Meter
-
5-33B7-72665-0 Plate, FittingPlate, Fitting
-
5-43B7-72666-0 Insulated washerInsulated washer
-
5-5940103-0400 WasherWasher
-
5-6941303-0400 Spring WasherSpring Washer
-
5-7930203-0400 NutNut
-
63H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
73B7-72201-0 КанатКанат
-
93C7-62133-2 Bolt
L=105Bolt
L=105 -
10353-61334-0 WasherWasher
-
11940103-1200 Washer
or 940113-1200Washer
or 940113-1200 -
123C7-62139-1 Nut,P1.25Nut,P1.25
-
133C8-84910-2 Drag Link Ass'y
for P TypeDrag Link Ass'y
for P Type -
13-1353-84916-0 WasherWasher
-
13-23C8-84914-1 Collar 9.6-13-6.5Collar 9.6-13-6.5
-
13-3353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
13-43C8-84917-0 Bolt 3/8-19Bolt 3/8-19
-
13-53C8-84916-0 Collar 9.6-19-6Collar 9.6-19-6
-
13-6951503-0215 Split PinSplit Pin
-
13-73F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
143T5-72050-0 New partNew part
