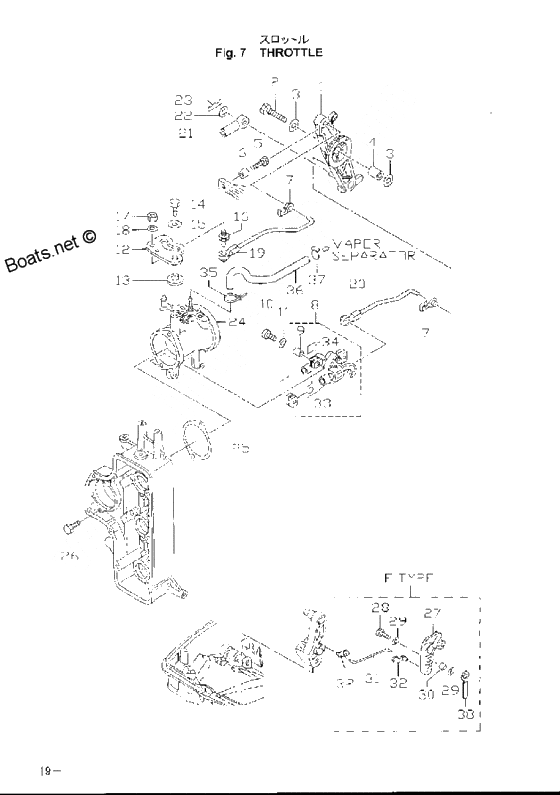

Throttle для Tohatsu MD40A - 2003 года выпуска
-
№АртикулНазвание
-
13C8-63711-1 Advancer ArmAdvancer Arm
-
2910103-0635 BoltBolt
-
3346-67115-0 WasherWasher
-
43C8-63732-0 Collar 6.2-12-17Collar 6.2-12-17
-
5910103-0618 BoltBolt
-
6353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
73C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
83T5-10110-0 TPS Ass'yTPS Ass'y
-
93T5-10128-0 Collar, 4.2-6-10.5Collar, 4.2-6-10.5
-
10921503-6420 Stud BoltStud Bolt
-
113T5-10129-0 WasherWasher
-
123T5-63718-0 Throttle CamThrottle Cam
-
133T5-63721-0 BushingBushing
-
14910103-6618 BoltBolt
-
16346-05228-0 New partNew part
-
17930203-0600 NutNut
-
18940103-0600 WasherWasher
-
193T5-63716-0 Звено дросселяЗвено дросселя
-
203T5-10109-0 Tps linkTps link
-
213B7-83715-0 Cable Joint
for P TypeCable Joint
for P Type -
22353-83719-0 Washer
for P TypeWasher
for P Type -
23951603-0800 R-Pin
for P TypeR-Pin
for P Type -
243T4-10100-0 Throttle body asss'yThrottle body asss'y
-
253T5-10104-0 Gasket, Throttle BodyGasket, Throttle Body
-
263T5-02241-0 Bolt, 6-25 PrecoatedBolt, 6-25 Precoated
-
273C8-05213-0 Arm Throttle Stop
for F TypeArm Throttle Stop
for F Type -
28910114-0625 Bolt
for F TypeBolt
for F Type -
313C8-05221-0 S-link 3.5-56
for F TypeS-link 3.5-56
for F Type -
323C8-05223-0 Rod Snap B 3.5-4
for F TypeRod Snap B 3.5-4
for F Type -
333T5-10107-0 Mount RubberMount Rubber
-
343T5-72195-0 Lavel, TPSLavel, TPS
-
353T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
37338-01133-0 ClipClip
-
38309-06972-0 Clamp,6.5-47.5P
for F TypeClamp,6.5-47.5P
for F Type
