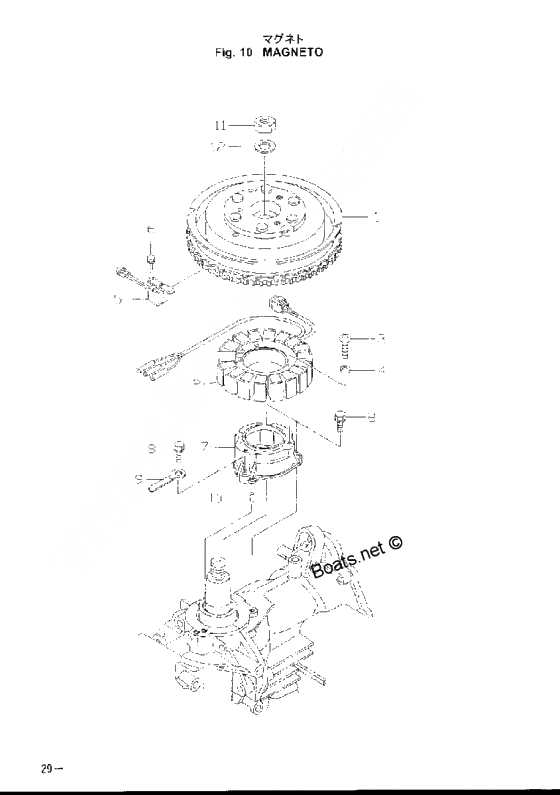

Magneto для Tohatsu MD40A - 2003 года выпуска
-
№АртикулНазвание
-
13T5-06101-0 Flywheel cup
F4T601-71Flywheel cup
F4T601-71 -
23T5-06123-0 Alternator Ass'yAlternator Ass'y
-
3921503-0635 Stud BoltStud Bolt
-
4941303-0600 New partNew part
-
53T5-06145-0 Pick Up CoilPick Up Coil
-
6910103-6512 BoltBolt
-
73T5-06008-1 Bracket CoilBracket Coil
-
8910103-7625 BoltBolt
-
9309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
10334-65012-0 СтопорСтопор
-
11353-00132-0 Nut 18P1.5Nut 18P1.5
-
12353-00133-0 WasherWasher
