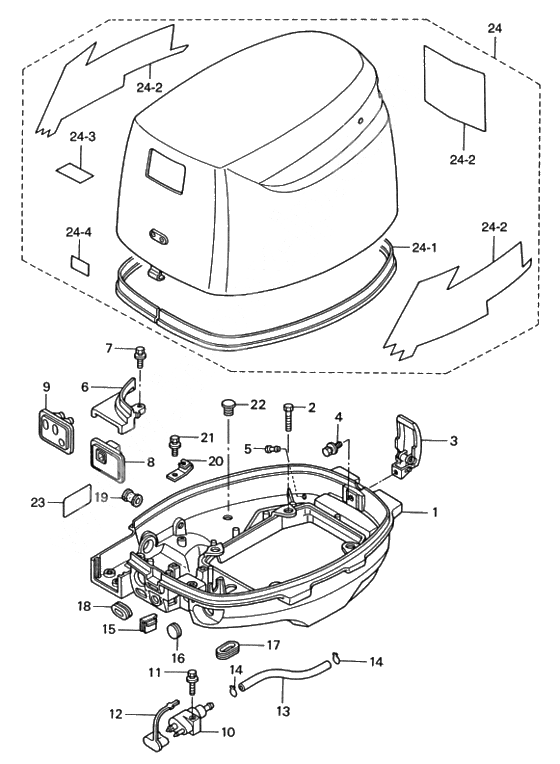

Cowl для Tohatsu MFS8A2 - 2004 года выпуска
-
№АртикулНазвание
-
13V2S67100-0 Поддон
# 031096XD~ / 9.8A2/8A2Поддон
# 031096XD~ / 9.8A2/8A2 -
13V1S67100-0 Поддон
~# 027338XD / 9.8A/8AПоддон
~# 027338XD / 9.8A/8A -
2910113-5625 BoltBolt
-
33V1-67120-0 Cowl latchCowl latch
-
4910113-5612 BoltBolt
-
5353-01138-0 Water NippleWater Nipple
-
63V1S67481-0 Bracket cover,shift leverBracket cover,shift lever
-
7910113-5616 BoltBolt
-
83V1-63621-0 Grommet
FOR MF & EFGrommet
FOR MF & EF -
93V1-83732-0 Grommet
FOR EPGrommet
FOR EP -
10394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
11910113-5625 BoltBolt
-
123H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
1398AB-5-0330 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
14338-02215-0 ClipClip
-
153V1-63624-0 Grommet
THROTTLE CABLEGrommet
THROTTLE CABLE -
16345-67117-0 New part
FOR MF & EPNew part
FOR MF & EP -
173R3-66226-0 Grommet, Shift RodGrommet, Shift Rod
-
183R3-67162-0 Grommet, Battery CordGrommet, Battery Cord
-
193B2-67187-0 Grommet Throttle Shaft
FOR MF & EFGrommet Throttle Shaft
FOR MF & EF -
203V1-69000-0 Bracket,Starter Lock CableBracket,Starter Lock Cable
-
21910113-5612 BoltBolt
-
223A3-60984-0 Plug Sub Water PipePlug Sub Water Pipe
-
233H6-67572-0 LABEL, STORAGELABEL, STORAGE
-
243V2S67630-0 Впуск
TOHATSUВпуск
TOHATSU -
243Y4N67630-1 Upper motor cover nsf8a/9.8a2 (gray)
NISSANUpper motor cover nsf8a/9.8a2 (gray)
NISSAN -
3Y3Q67645-2 Upper motor cover nsf8a/9.8a2 (gray)Upper motor cover nsf8a/9.8a2 (gray)
-
24-13V1-67501-0 Seal rubber,top cowlSeal rubber,top cowl
-
24-23V1S87801-0 Набор этикеток
TOHATSUНабор этикеток
TOHATSU -
24-23Y3N87801-0 Decal set nsf8a
NISSANDecal set nsf8a
NISSAN -
24-33R0-72180-0 Caution Lable ACaution Lable A
-
24-43H6-76199-0 Label,oil PressureLabel,oil Pressure
