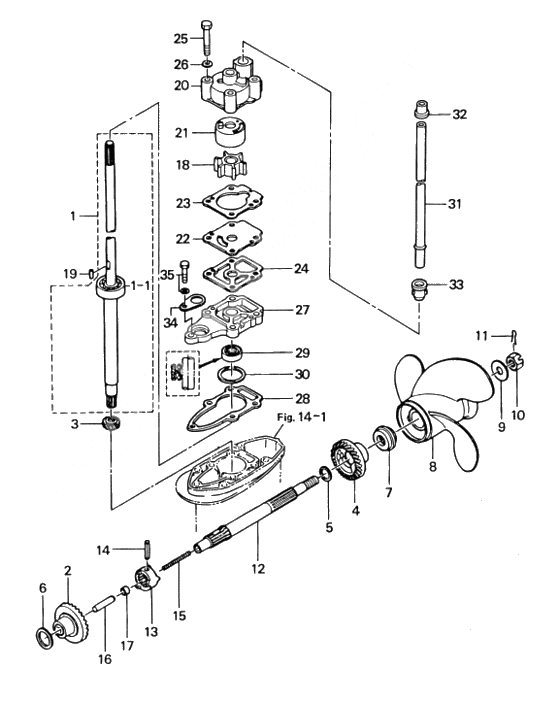

Drive system & water pump для Tohatsu MFS8A2 - 2004 года выпуска
-
№АртикулНазвание
-
13V1-64306-1 Drive Shaft S
FOR TRANSOM SDrive Shaft S
FOR TRANSOM S -
13V1-64307-1 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
13V1-64309-1 Drive Shaft UL
FOR TRANSOM ULDrive Shaft UL
FOR TRANSOM UL -
1-19601-0-6301 Ball BearingBall Bearing
-
23B2-64010-0 Bevel Gear ABevel Gear A
-
33B2-64020-0 Bevel Gear BBevel Gear B
-
43B2-64030-0 Bevel Gear CBevel Gear C
-
5369-64032-0 WasherWasher
-
6369-64014-0 Shim 21-28-0.1Shim 21-28-0.1
-
6369-64015-0 Shim 21-28-0.15Shim 21-28-0.15
-
73B2-64230-1 Thrust holder ass'y
# 044907XC~Thrust holder ass'y
# 044907XC~ -
83B2W64512-5 Prop 8 & 9.8 hp (8.0 dia x 5.0 pitch) blackProp 8 & 9.8 hp (8.0 dia x 5.0 pitch) black
-
3B2B64512-5 Prop 8 & 9.8 hp (8.0 dia x 5.0 pitch) blackProp 8 & 9.8 hp (8.0 dia x 5.0 pitch) black
-
83B2W64512-6 Prop 8 & 9.8 hp (8.3 dia x 6.0 pitch) blackProp 8 & 9.8 hp (8.3 dia x 6.0 pitch) black
-
3B2B64512-6 Prop 8 & 9.8 hp (8.3 dia x 6.0 pitch) blackProp 8 & 9.8 hp (8.3 dia x 6.0 pitch) black
-
83B2W64513-0 Propller 6.5Propller 6.5
-
83B2W64514-0 Propller 7Propller 7
-
83B2W64515-0 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
9.8A2 : L UL / 8 A2 : S. L. ULProp 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
9.8A2 : L UL / 8 A2 : S. L. UL -
3B2B64515-1 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
-
83B2W64517-1 Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
9.8A2 : SProp 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
9.8A2 : S -
3B2B64517-0 Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) blackProp 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
-
83B2W64519-1 Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch)
OLD PART NO. 3B2-64518-0Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch)
OLD PART NO. 3B2-64518-0 -
83B2B64512-0 Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) blackProp 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
-
83B2W64511-0 Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) blackProp 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
-
3B2B64511-0 Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) blackProp 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
-
9369-64124-0 WasherWasher
-
10369-64121-0 Nut PropellerNut Propeller
-
11951503-0318 New partNew part
-
123V1-64211-0 Propeller ShaftPropeller Shaft
-
133B2-64215-0 ClutchClutch
-
14301-64217-0 Pin ClutchPin Clutch
-
153V1-64221-0 Spring,ClutchSpring,Clutch
-
16369-64223-0 Push Rod ClutchPush Rod Clutch
-
173B2-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
183B2-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
193B2-65022-0 New partNew part
-
203B2-65016-0 Water Pump CaseWater Pump Case
-
213B2-65011-0 New partNew part
-
223B2-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
233B2-65018-0 New partNew part
-
243B2-65029-0 New partNew part
-
25916113-0650 BoltBolt
-
26940113-0600 WasherWasher
-
273V1-65017-0 Pump Case Lower
# 017458XD~Pump Case Lower
# 017458XD~ -
283B2-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
29309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
303B2-64023-0 Gap liner ,28-36.8
T=0.1 0.15 0.3Gap liner ,28-36.8
T=0.1 0.15 0.3 -
313V1-65100-0 Труба водная
FOR TRANSOM SТруба водная
FOR TRANSOM S -
313V1-65110-0 Труба водная
FOR TRANSOM LТруба водная
FOR TRANSOM L -
313V1-65120-0 Труба водная
FOR TRANSOM ULТруба водная
FOR TRANSOM UL -
33331-65014-0 Lock ring coolibg water pipeLock ring coolibg water pipe
-
34369-66033-0 Stopper Cam Rod BushingStopper Cam Rod Bushing
-
35910113-5625 BoltBolt
