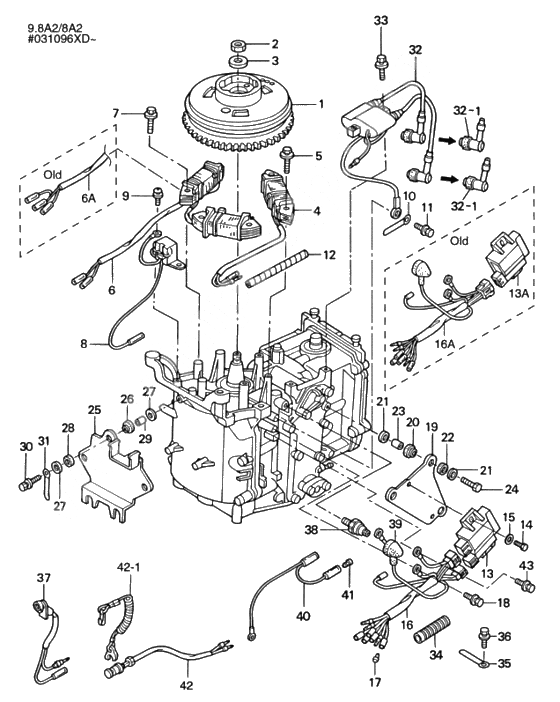

Magneto для Tohatsu MFS8A2 - 2004 года выпуска
-
№АртикулНазвание
-
13AA-06091-0 Flywheel Cap
# 031096XD~ / FF-51 WITH RING GEARFlywheel Cap
# 031096XD~ / FF-51 WITH RING GEAR -
2369-00132-0 Nut MagnetoNut Magneto
-
3940121-1200 WasherWasher
-
43AA-06021-0 Excite Coil
#031096XD~ / CORD COLOR BLACK/RED & BLUE/REDExcite Coil
#031096XD~ / CORD COLOR BLACK/RED & BLUE/RED -
43V1-06021-0 Exciter coil
~# 027338XD CORD COLOR BLACK/RED & BLUEExciter coil
~# 027338XD CORD COLOR BLACK/RED & BLUE -
5910103-5630 BoltBolt
-
63AA-06023-0 Alternator Ass'y
9.8A2/8A2 SINGLE CONNECTOR FOR EF & EP # 031096XD~Alternator Ass'y
9.8A2/8A2 SINGLE CONNECTOR FOR EF & EP # 031096XD~ -
6A3V1-06023-0 Alternator
9.8A/8A BRANCHING CONNECTOR FOR EF & EP ~# 027338XDAlternator
9.8A/8A BRANCHING CONNECTOR FOR EF & EP ~# 027338XD -
7910103-5630 Bolt
FOR EF & EPBolt
FOR EF & EP -
83V1-06071-0 Pulsar CoilPulsar Coil
-
9921503-0512 Stud BoltStud Bolt
-
10309-06972-0 Clamp,6.5-47.5P
ALTERNATOR & EXCITER CABLEClamp,6.5-47.5P
ALTERNATOR & EXCITER CABLE -
11910103-5616 BoltBolt
-
123V1-76148-0 Spiral Tube Protector
├╕10-100 / ALTERNATOR & EXCITER CABLESpiral Tube Protector
├╕10-100 / ALTERNATOR & EXCITER CABLE -
133AA-06060-0 C.D. Unit
9.8A2/8A2 # 031096XD~ / 6P & 4P-CONNECTORC.D. Unit
9.8A2/8A2 # 031096XD~ / 6P & 4P-CONNECTOR -
13A3V1-06060-1 C.d.unit
9.8A/8A ~# 027338XD / 8P-CONNECTORC.d.unit
9.8A/8A ~# 027338XD / 8P-CONNECTOR -
143V1-60108-0 Bolt,6-16 Pre Coated
OLD PART NO. 3V1-06864-0Bolt,6-16 Pre Coated
OLD PART NO. 3V1-06864-0 -
153R0-66308-0 WasherWasher
-
163AA-06167-0 Cord Ass'y C.D. Unit
9.8A2/8A2 # 031096XD~ / 6P & 4P-CONNECTORCord Ass'y C.D. Unit
9.8A2/8A2 # 031096XD~ / 6P & 4P-CONNECTOR -
16A3V1-06167-0 Cd unit cord ass'y
9.8A/8A ~# 027338XD / 8P-CONNECTORCd unit cord ass'y
9.8A/8A ~# 027338XD / 8P-CONNECTOR -
173A3-76037-0 Plug B Cable Terminal
LIGHT GREEN & WHITE CABLEPlug B Cable Terminal
LIGHT GREEN & WHITE CABLE -
18910103-5612 Bolt
GROUND CABLEBolt
GROUND CABLE -
193V1-06061-0 Cd unit bracketCd unit bracket
-
203T5-06920-0 Mount RubberMount Rubber
-
213R0-66308-0 WasherWasher
-
223B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
233A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
24910113-0625 BoltBolt
-
253V1-06900-0 Electric bracket
FOR EF & EPElectric bracket
FOR EF & EP -
263T5-06920-0 Mount Rubber
FOR EF & EPMount Rubber
FOR EF & EP -
273R0-66308-0 Washer
FOR EF & EPWasher
FOR EF & EP -
283B7-06305-0 Mount Rubber, 9-16-4.3
FOR EF & EPMount Rubber, 9-16-4.3
FOR EF & EP -
293A0-76079-0 Collar, 6.2-9-7.5
FOR EF & EPCollar, 6.2-9-7.5
FOR EF & EP -
30910113-0620 Bolt
FOR EF & EPBolt
FOR EF & EP -
313T4-06972-0 Плата струбцины
FOR EPПлата струбцины
FOR EP -
323V1-06040-0 Ignition CoilIgnition Coil
-
32-13H6-06999-0 Plug Cap (Registance)Plug Cap (Registance)
-
33910103-5625 BoltBolt
-
343V1-06133-0 Protector
ø34-70 / FOR MFProtector
ø34-70 / FOR MF -
353T4-06972-0 Плата струбцины
FOR MFПлата струбцины
FOR MF -
36910113-5612 Bolt
FOR MFBolt
FOR MF -
373R3-71040-0 Pilot Lamp Ass'yPilot Lamp Ass'y
-
383H6-07611-0 Switch, Oil PressureSwitch, Oil Pressure
-
393H6-07612-0 Grommet, oil pressure switchGrommet, oil pressure switch
-
403V5-72678-0 Separate Cord(Black)Separate Cord(Black)
-
413A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
-
42398-06830-0 Safety Switch Ass'y
FOR MF & EFSafety Switch Ass'y
FOR MF & EF -
42-1353-06821-0 Lock, lanyard stop switch
FOR MF & EFLock, lanyard stop switch
FOR MF & EF -
43910103-5612 Bolt
FOR MFBolt
FOR MF
