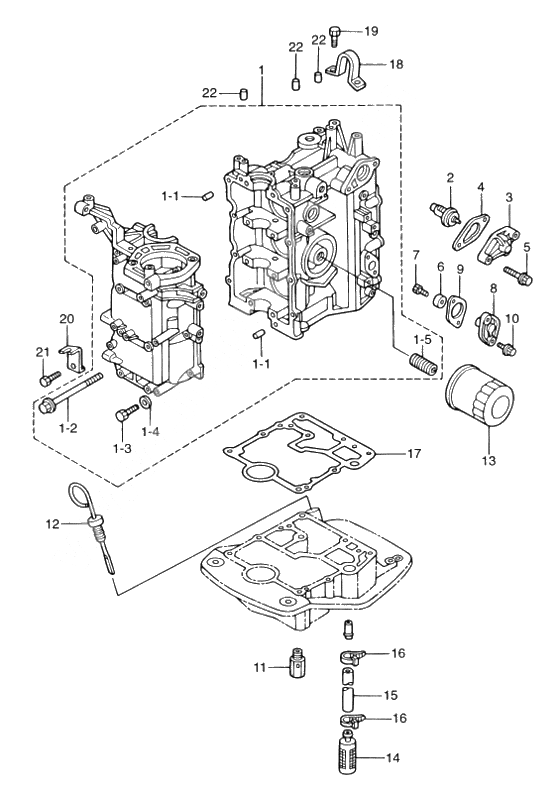

Cylinder для Tohatsu MFS25B - 2005 года выпуска
-
№АртикулНазвание
-
13ACB01100-0 Cylinder crank caseCylinder crank case
-
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-23R0-01113-0 Bolt,8-90Bolt,8-90
-
1-3916119-0640 BoltBolt
-
910103-0640 BoltBolt
-
1-4940113-0600 WasherWasher
-
1-53H8-07636-0 Bolt, Oil FilterBolt, Oil Filter
-
23R3-01030-0 ThermostatThermostat
-
4346-01032-0 New partNew part
-
5910113-5630 BoltBolt
-
6369-60218-1 New partNew part
-
7910103-0616 BoltBolt
-
83H8B01143-0 Cap, anodeCap, anode
-
93R3-01144-0 O-RingO-Ring
-
10910113-5620 BoltBolt
-
113V2-07620-0 Pluger Ass'y
OR 3R3-07620-0Pluger Ass'y
OR 3R3-07620-0 -
123V2-07620-0 Pluger Ass'y
OR 3R3-07620-0Pluger Ass'y
OR 3R3-07620-0 -
133R0-07615-0 Oil Filter Ass'yOil Filter Ass'y
-
143R3-07410-0 Oil Strainer Ass'yOil Strainer Ass'y
-
1598AH10022-0 Rubber hose 220Rubber hose 220
-
16369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
173R0-01303-0 Gasket,Engine BaseGasket,Engine Base
-
183C7B01513-1 HangerHanger
-
19910114-5820 BoltBolt
-
203AC-69000-0 Starter lock cable bracketStarter lock cable bracket
-
21910113-0612 BoltBolt
-
22345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
