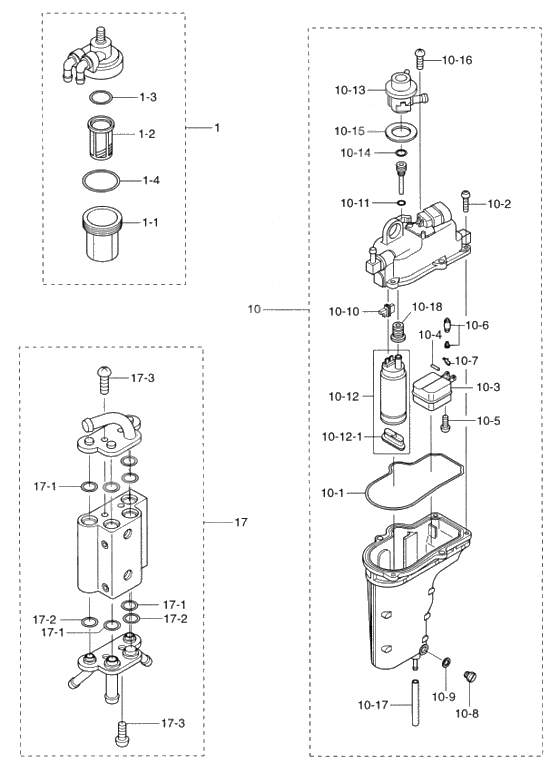

Fuel pump fuel rail & vapor separator (detail) для Tohatsu MFS25B - 2005 года выпуска
-
№АртикулНазвание
-
13AC-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
3AD-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
1-13B7-02237-0 CupCup
-
1-23AC-02234-0 FilterFilter
-
3AD-02234-0 FilterFilter
-
1-33B7-02236-0 O???? bO???? b
-
1-43B7-02235-0 O-Ring AO-Ring A
-
103AC-10150-0 Vapor separatorVapor separator
-
10-13AC-03235-0 O-RingO-Ring
-
10-103AC-06952-0 Terminal holderTerminal holder
-
10-113AD-03116-0 O-RingO-Ring
-
10-123AC-04302-0 Fuel feed pumpFuel feed pump
-
3AC-04310-0 Fuel feed pumpFuel feed pump
-
10-12-13AC-77434-0 FilterFilter
-
10-133AC-10154-0 Fuel regulatorFuel regulator
-
10-143AC-10095-0 O-RingO-Ring
-
10-153AC-04313-0 GrommetGrommet
-
10-163AC-03243-0 ScrewScrew
-
10-1798AB-3-1000 Rubber hose
FOR DRAINRubber hose
FOR DRAIN -
10-183AC-07404-0 GrommetGrommet
-
10-2921503-6416 ScrewScrew
-
10-33AC-03230-0 FloatFloat
-
10-43F3-03232-0 Arm Pin FloatArm Pin Float
-
10-5921503-0408 Stud BoltStud Bolt
-
10-63R3-03239-0 Floato Valve Assy
WITH VALVE PINFloato Valve Assy
WITH VALVE PIN -
10-7344-03244-0 ClipClip
-
10-83AC-03292-0 Drain ScrewDrain Screw
-
10-93AC-03116-0 O-ring drain screwO-ring drain screw
-
173AC-10175-0 Fuel coolerFuel cooler
-
17-13AC-10046-0 O-RingO-Ring
-
17-23AC-10164-0 O-RingO-Ring
-
17-3921503-6410 Stud BoltStud Bolt
