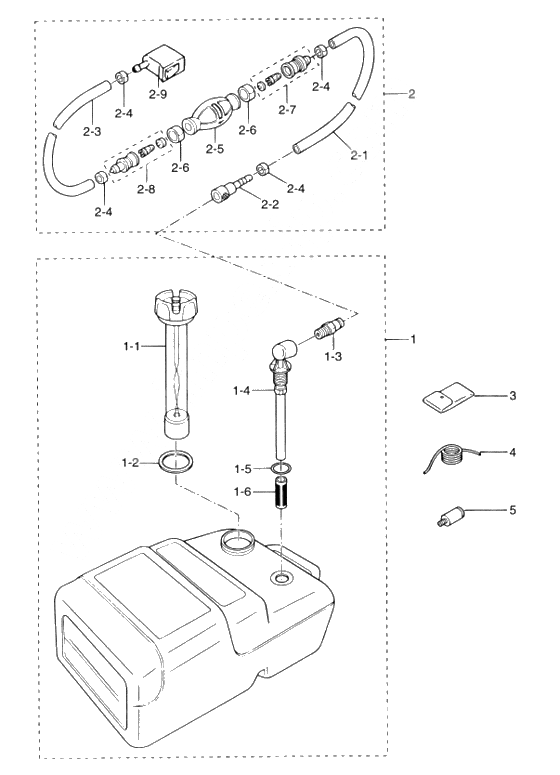

Separate fuel tank для Tohatsu MFS25B - 2005 года выпуска
-
№АртикулНазвание
-
13C7-70177-0 New part
TOHATSUNew part
TOHATSU -
19999-8-FT26 Fuel tank 25l (6.6 gal) epa cap (nissan)
NISSANFuel tank 25l (6.6 gal) epa cap (nissan)
NISSAN -
3AE-70177-1 Fuel tank 25l (6.6 gal) epa cap (nissan)Fuel tank 25l (6.6 gal) epa cap (nissan)
-
1-13C7-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43C7-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23H6-70200-0 New partNew part
-
2-198AB-7-1600 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
2-23B2-70281-0 New partNew part
-
2-398AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-9394-70250-0 Соединитель топливныйСоединитель топливный
-
33H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
43B7-72201-0 Канат
ø 6-1600Канат
ø 6-1600 -
5336-60007-0 New part
OPTIONNew part
OPTION
