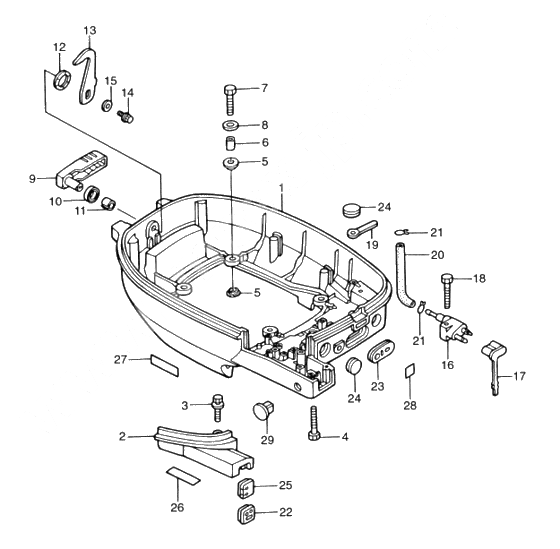

Bottom cowl для Tohatsu MFS30B - 2005 года выпуска
-
№АртикулНазвание
-
13R0Q67100-0 Lower motor cover f25/30b (no ptt)
MOTOR COVER (LOWER) PTT TYPE FIG. 21Lower motor cover f25/30b (no ptt)
MOTOR COVER (LOWER) PTT TYPE FIG. 21 -
23R0Q76118-0 Cable coverCable cover
-
3910113-5635 BoltBolt
-
4910113-5650 BoltBolt
-
5346-67113-0 Mount RubberMount Rubber
-
6346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
7910113-0630 BoltBolt
-
8346-67115-0 WasherWasher
-
93R3Q67141-0 Hook leverHook lever
-
10338-67147-0 New partNew part
-
11350-67105-0 New partNew part
-
12941403-1400 New partNew part
-
133R3-67142-0 Cover HookCover Hook
-
14910113-5612 BoltBolt
-
153R0-66308-0 WasherWasher
-
16394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
173H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
18910113-5630 BoltBolt
-
193T4-06972-0 Плата струбциныПлата струбцины
-
2098AB-5-1000 New partNew part
-
21338-02215-0 ClipClip
-
223R0-83732-0 Grommet,control Cable
FOR EP & EPTGrommet,control Cable
FOR EP & EPT -
23353-67162-0 Grommet, Bater CordGrommet, Bater Cord
-
24345-67117-0 New part
1 FOR EPNew part
1 FOR EP -
253R0-63621-0 Grommet,throttle Cable
FOR MF & EFGrommet,throttle Cable
FOR MF & EF -
263V9-67578-0 Shift decal (f-n-r)
FOR MF & EFShift decal (f-n-r)
FOR MF & EF -
273H6-67572-0 LABEL, STORAGELABEL, STORAGE
-
283H6-76199-0 Label,oil PressureLabel,oil Pressure
-
293B7-01046-0 Plug
FOR EP & EPTPlug
FOR EP & EPT
