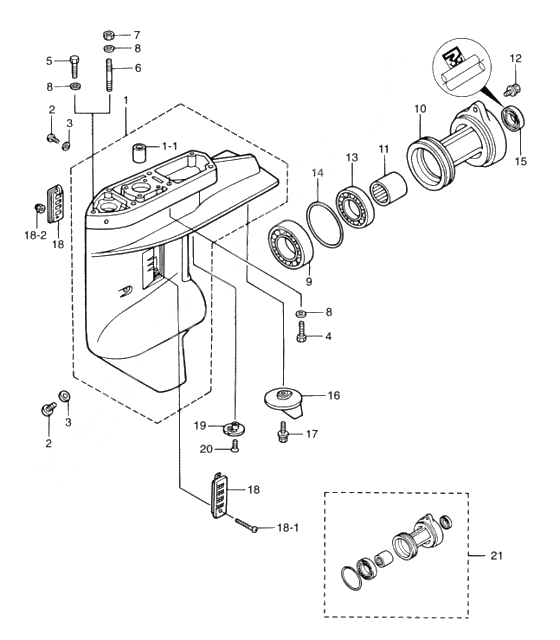

Gear case для Tohatsu MFS30B - 2005 года выпуска
-
№АртикулНазвание
-
1346Q60000-6 Gear caseGear case
-
3AEQ60000-2 Gear caseGear case
-
1-1346-60211-0 Needle bearing, 20-27-30Needle bearing, 20-27-30
-
2332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
3332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
4916113-0840 BoltBolt
-
5916113-0845 Bolt
FOR TRANSOM L & ULBolt
FOR TRANSOM L & UL -
6915313-0830 Stud Bolt
FOR TRANSOM SStud Bolt
FOR TRANSOM S -
7930113-0800 Nut
FOR TRANSOM SNut
FOR TRANSOM S -
8940113-0800 WasherWasher
-
9346-60215-0 Подшипник (30205) 25x52x16,25Подшипник (30205) 25x52x16,25
-
10346Q60101-5 Prop shaft housingProp shaft housing
-
346Q60101-8 Prop shaft housingProp shaft housing
-
11346-60102-0 Needle BearingNeedle Bearing
-
12910113-5830 BoltBolt
-
139601-0-6205 Подшипник 25x52x15Подшипник 25x52x15
-
14332-60103-0 O-RingO-Ring
-
15346-60111-0 Oil seal, 18-28-8Oil seal, 18-28-8
-
163C8-60217-1 Trim TabTrim Tab
-
17910103-5620 BoltBolt
-
183A1-60235-0 Water Strainer SetWater Strainer Set
-
18-1921513-0430 Stud BoltStud Bolt
-
18-2930403-0400 Nylon NutNylon Nut
-
19369-60206-0 Water StrainerWater Strainer
-
20920813-0620 Stud BoltStud Bolt
-
21346Q87323-5 Prop shaft housing assyProp shaft housing assy
-
349Q60100-7 Prop shaft housing assyProp shaft housing assy
