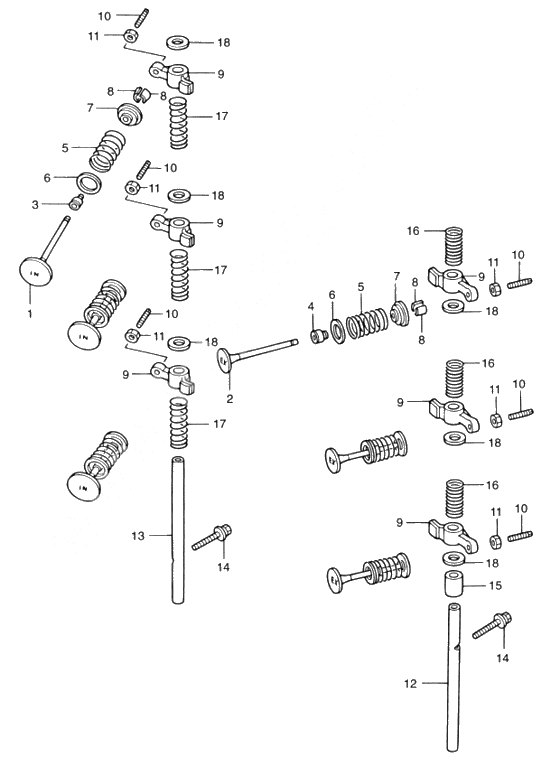

Intake valve & exhaust valve для Tohatsu MFS30B - 2005 года выпуска
-
№АртикулНазвание
-
13R3-07201-0 Floato Valve AssyFloato Valve Assy
-
23R0-07202-0 Exhausut ValveExhausut Valve
-
33R3-07204-0 Seal, In Valve Stem
BLACKSeal, In Valve Stem
BLACK -
43R3-07206-0 Seal, EX Valve Stem
GREENSeal, EX Valve Stem
GREEN -
53AE-07203-0 Valve springValve spring
-
63H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
73H6-07221-0 Retaine,int. & Exh.Retaine,int. & Exh.
-
83H6-07223-0 CotterCotter
-
93AE-07235-0 Rocker armRocker arm
-
103R0-07238-0 Stud BoltStud Bolt
-
113H8-07237-0 NutNut
-
123AE-07220-0 Shaft rocker arm (exhaust)Shaft rocker arm (exhaust)
-
133AE-07226-0 Shaft rocker arm (intake)Shaft rocker arm (intake)
-
14910114-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
153H8-07239-0 Collar, Rocker Arm ShaftCollar, Rocker Arm Shaft
-
163H8-07225-0 Spring Washer
L=30Spring Washer
L=30 -
173H8-07229-0 Spring Washer
L=51Spring Washer
L=51 -
183R3-07227-0 WasherWasher
