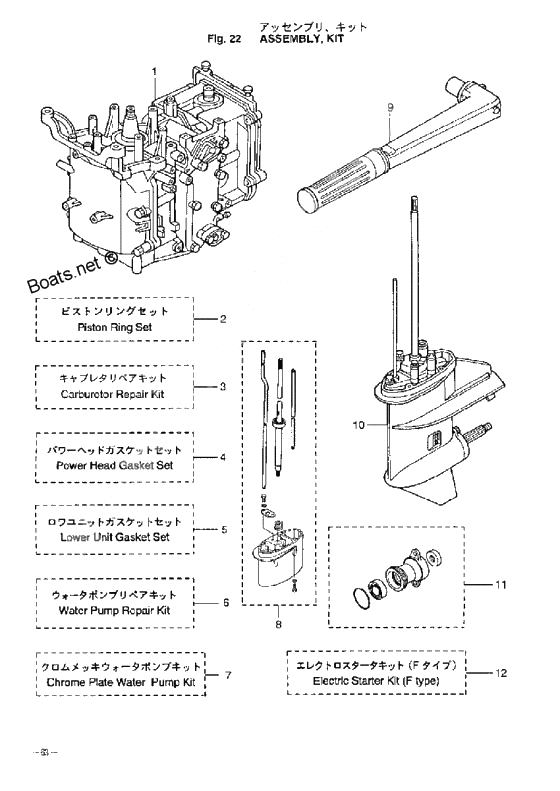

Assembly kit для Tohatsu MFS9.8A2 - 2005 года выпуска
-
№АртикулНазвание
-
13V1B87100-1 Short block (8-9.8/4-st)Short block (8-9.8/4-st)
-
3V1B87090-7 Short block (8-9.8/4-st)Short block (8-9.8/4-st)
-
23V1-00014-0 Piston Ring 0.5mm O/SPiston Ring 0.5mm O/S
-
23V1-00015-0 Piston Ring 2nd (0.5mm O/S)Piston Ring 2nd (0.5mm O/S)
-
23V1-87123-0 Кольца поршневыеКольца поршневые
-
23V1-00016-0 Piston Ring Oil 0.5mm O/SPiston Ring Oil 0.5mm O/S
-
23V1-00011-0 Piston Ring TOPPiston Ring TOP
-
23V1-00012-0 Piston Ring 2ndPiston Ring 2nd
-
23V1-00013-0 Piston Ring OilPiston Ring Oil
-
23V1-87124-0 Кольца поршневыеКольца поршневые
-
33C8-03126-0 Float Arm Pin
, Fig. 5-1-9Float Arm Pin
, Fig. 5-1-9 -
3922503-6410 Stud Bolt
, Fig. 5-1-21Stud Bolt
, Fig. 5-1-21 -
33C8-03125-0 Float
, Fig. 5-1-10Float
, Fig. 5-1-10 -
3921703-0406 Stud Bolt
, Fig. 5-1-11Stud Bolt
, Fig. 5-1-11 -
33V1-03121-0 Gasket,float Chamber
, Fig. 5-1-15Gasket,float Chamber
, Fig. 5-1-15 -
33V1-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
3922503-6412 Stud Bolt
, Fig. 5-1-16Stud Bolt
, Fig. 5-1-16 -
33V1-03116-0 O-Ring
, Fig. 5-1-5O-Ring
, Fig. 5-1-5 -
33V1-03193-0 O-Ring
, Fig. 5-1-18O-Ring
, Fig. 5-1-18 -
33V1-03147-1 Float Valve
, Fig. 5-1-8Float Valve
, Fig. 5-1-8 -
33V1-03182-0 Gasket,Cabretor Cover
, Fig. 5-1-20Gasket,Cabretor Cover
, Fig. 5-1-20 -
4346-01032-0 New partNew part
-
43H6-07422-0 New partNew part
-
43R3-01144-0 O-RingO-Ring
-
43V1-87121-0 Power Head Gasket SetPower Head Gasket Set
-
43V1-07653-0 Gasket,Oil PumpGasket,Oil Pump
-
43V1-01303-0 Gasket engine baseGasket engine base
-
43V1-01005-0 Cykinder Head GasketCykinder Head Gasket
-
43H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
43V1-00121-0 Oil Seal 30-45-8Oil Seal 30-45-8
-
43V1-01024-0 Gasket HeadcoverGasket Headcover
-
43B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
43V1-02104-0 O-RingO-Ring
-
43R0-07422-0 New partNew part
-
43V1-02011-0 Caburetor GasketCaburetor Gasket
-
43V1-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
43V1-02012-0 O-RingO-Ring
-
5332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
5345-65015-0 O-RingO-Ring
-
53B2-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
5369-60111-0 Oil SealOil Seal
-
53B2-02312-0 Gasket exhaust pipeGasket exhaust pipe
-
53B2-65029-0 New partNew part
-
53B2-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
5309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
53B2-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
5369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
5332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
63B2-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
6940113-0600 WasherWasher
-
63B2-87322-0 Water pump repair kit 8-9.8 hpWater pump repair kit 8-9.8 hp
-
3B2-87322-2 Water pump repair kit 8-9.8 hpWater pump repair kit 8-9.8 hp
-
63B2-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
63B2-65022-0 New partNew part
-
63B2-65011-0 New partNew part
-
73B2-65231-0 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
73B2-65238-0 Liner chrome plated water pump caseLiner chrome plated water pump case
-
73B2-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
83B2S61110-2 Extension housing ulExtension housing ul
-
83B2-60003-1 Bushing Drive Shaft HousingBushing Drive Shaft Housing
-
83V1-64332-0 Stopoer,BushingStopoer,Bushing
-
8910113-5612 BoltBolt
-
83V1-64309-1 Drive Shaft ULDrive Shaft UL
-
83V1-66014-0 Cam Rod(UL)Cam Rod(UL)
-
83V1S87314-2 Extension housing kit ul
for Transom UL""Extension housing kit ul
for Transom UL"" -
83V1-65120-0 Труба воднаяТруба водная
-
93V1S63003-0 Tiller handle ass'yTiller handle ass'y
-
103V1S87301-2 Lower unit ass'y s
for Transom S""Lower unit ass'y s
for Transom S"" -
103V1S87302-2 Lower unit ass'y l
for Transom L""Lower unit ass'y l
for Transom L"" -
113B2S60100-0 Propeller shaft housing ass'yPropeller shaft housing ass'y
-
123A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
123AA-06281-0 Hplder Cable TerminalHplder Cable Terminal
-
123AA-06023-0 Alternator Ass'yAlternator Ass'y
-
123B2-76147-1 STARTER CORDSTARTER CORD
-
123AA-76010-0 Starter Motor Ass'yStarter Motor Ass'y
-
123V1-06284-0 Stay,terminal holderStay,terminal holder
-
12910103-5630 BoltBolt
-
123V1-76148-0 Spiral Tube ProtectorSpiral Tube Protector
-
123V1-76011-0 Starter motor bracketStarter motor bracket
-
12174-35012-0 Collar 6-8-6Collar 6-8-6
-
123V1-06900-0 Electric bracketElectric bracket
-
123Y0-76145-0 Terminal CapTerminal Cap
-
123H8-76040-0 Starter SolenoidStarter Solenoid
-
123AA-06902-0 Cover Terminal HolderCover Terminal Holder
-
123T5-06920-0 Mount RubberMount Rubber
-
123Y1-76145-0 Terminal CapTerminal Cap
-
123AA-76065-0 Rectifire CompleteRectifire Complete
-
12398-76080-0 Neutral Switch Ass'yNeutral Switch Ass'y
-
123C8-66308-0 New partNew part
-
123V1-76066-0 Fuse WireFuse Wire
-
123V2-76300-0 Electric starter kit
# 031096XD- for 9.8A2/8A2 (New)Electric starter kit
# 031096XD- for 9.8A2/8A2 (New) -
123B2-76120-0 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
12398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
123B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
123R0-76064-0 Stay,Fuse HolderStay,Fuse Holder
-
123AA-06091-0 Flywheel CapFlywheel Cap
-
123AA-76145-0 Terminal CapTerminal Cap
-
123AA-76026-0 Main Switch
, or 3B2-76026-1Main Switch
, or 3B2-76026-1 -
12A3V1-76300-1 Electric start kit 8/9.8a (f type)
-027338XD for 9.8A/8A (Old)Electric start kit 8/9.8a (f type)
-027338XD for 9.8A/8A (Old) -
3V1-76300-0 Electric start kit 8/9.8a (f type)Electric start kit 8/9.8a (f type)
-
12A3V1-06023-0 Alternator
Same Parts as 3V2-76300-0 Except Alternator & RectifierAlternator
Same Parts as 3V2-76300-0 Except Alternator & Rectifier -
12A3V1-76065-0 Выпрямитель
Same Parts as 3V2-76300-0 Except Alternator & RectifierВыпрямитель
Same Parts as 3V2-76300-0 Except Alternator & Rectifier
