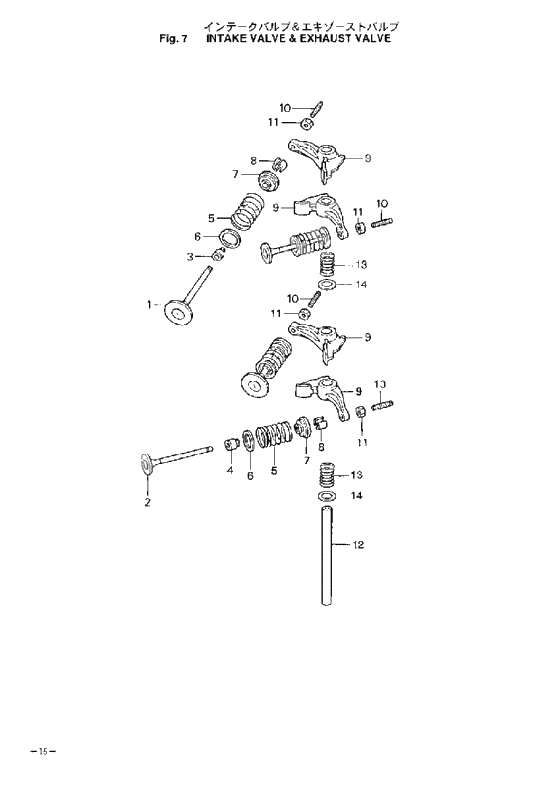

Intake valve & exhaust valve для Tohatsu MFS9.8A2 - 2005 года выпуска
-
№АртикулНазвание
-
13V1-07201-0 Intake ValveIntake Valve
-
23V1-07202-0 Exhaust ValveExhaust Valve
-
33R3-07204-0 Seal, In Valve Stem
BlackSeal, In Valve Stem
Black -
43R3-07206-0 Seal, EX Valve Stem
GreenSeal, EX Valve Stem
Green -
53AA-07203-0 Valbe Spring
# 002966XD-, L=38.3Valbe Spring
# 002966XD-, L=38.3 -
53H6-07203-1 Пружина клапана
-# 049138XC, L=35Пружина клапана
-# 049138XC, L=35 -
63V1-07205-0 Seat,Valve SpringSeat,Valve Spring
-
73V1-07221-0 RetainerRetainer
-
83H6-07223-0 CotterCotter
-
93V1-07235-0 Rocker armRocker arm
-
103R0-07238-0 Stud BoltStud Bolt
-
113H8-07237-0 NutNut
-
123H8-07226-0 Shaft, rocker armShaft, rocker arm
-
133AA-07225-0 Rocker Shaft Spring
# 002966XD-, L=25Rocker Shaft Spring
# 002966XD-, L=25 -
133H8-07225-0 Spring Washer
-# 049138XC, L=30Spring Washer
-# 049138XC, L=30 -
143R3-07227-0 Washer
# 002966XD-Washer
# 002966XD-
