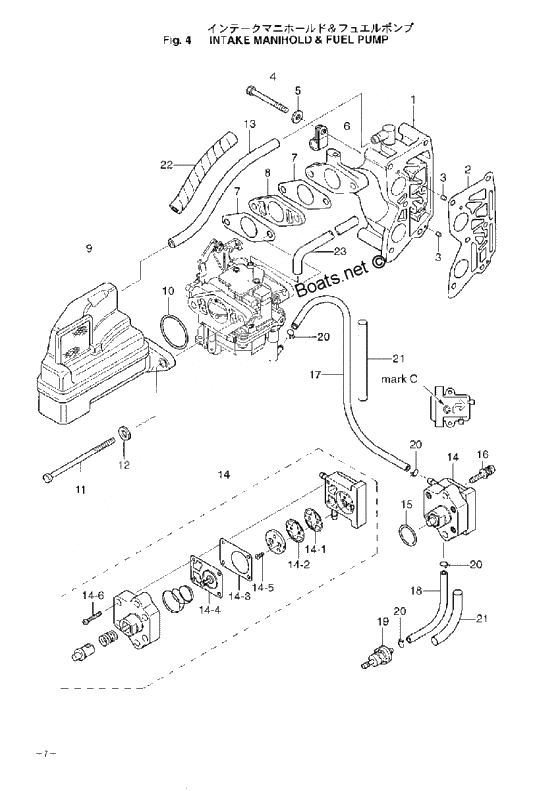

Inlet manifold, fuel pump для Tohatsu MFS9.8A2 - 2005 года выпуска
-
№АртикулНазвание
-
13V1-02010-1 Всасывающий коллектор
# 010322XD-Всасывающий коллектор
# 010322XD- -
23V1-02104-0 O-RingO-Ring
-
3951403-0310 New partNew part
-
4916114-0653 BoltBolt
-
5940113-0600 Washer
or 940103-0600Washer
or 940103-0600 -
6345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
73V1-02011-0 Caburetor GasketCaburetor Gasket
-
83V1-03952-0 InsukatorInsukator
-
93V1-02409-0 Air SilencerAir Silencer
-
103V1-02012-0 O-RingO-Ring
-
113H6-04014-1 Check ValveCheck Valve
-
123H6-04044-0 Check ValveCheck Valve
-
133H6-04028-0 O-RingO-Ring
-
143H6-04005-0 DiaphragmDiaphragm
-
143H6-04000-3 Fuel Pump Ass'y
# 002966XD-, Mark C""Fuel Pump Ass'y
# 002966XD-, Mark C"" -
15921603-0308 Stud BoltStud Bolt
-
153H6-07422-0 New partNew part
-
16922503-6418 Stud BoltStud Bolt
-
16921503-7630 Stud BoltStud Bolt
-
19369-02230-0 Фильтр топливныйФильтр топливный
-
20338-02215-0 ClipClip
-
213V2-06157-0 Protector
тИЕ12 - 120Protector
тИЕ12 - 120 -
223V1-76148-0 Spiral Tube Protector
тИЕ10 - 100 for EPSpiral Tube Protector
тИЕ10 - 100 for EP
