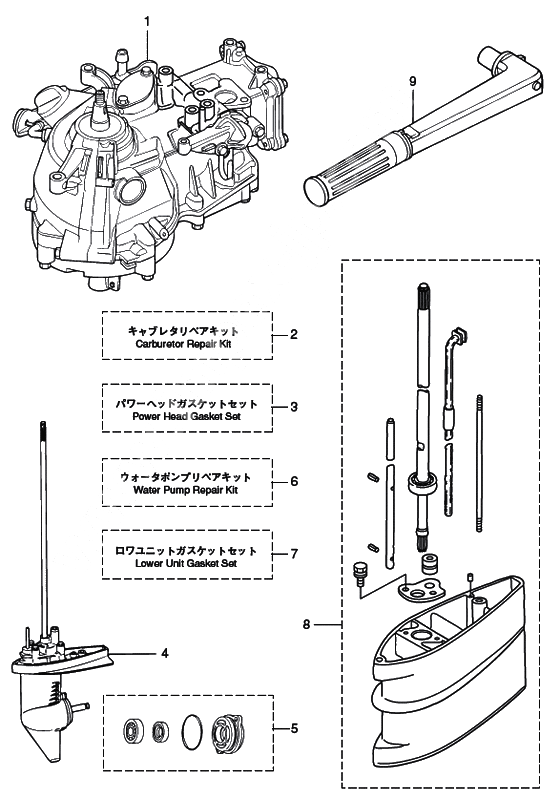

Assembly kit для Tohatsu MFS3.5B - 2009 года выпуска
-
№АртикулНазвание
-
13GTB87090-2 Engine short block 3.5b/2.5b/2b
3.5B/2.5B/2B~Engine short block 3.5b/2.5b/2b
3.5B/2.5B/2B~ -
3GTB87090-3 Engine short block 3.5b/2.5b/2bEngine short block 3.5b/2.5b/2b
-
19101E3-5620 Bolt & washer
OR 910113-5620Bolt & washer
OR 910113-5620 -
13AB-61012-0 Drive Shaft Housing GasketDrive Shaft Housing Gasket
-
19701-1-1103 Spark plug (dcpr6e)
NGK: DCPR6ESpark plug (dcpr6e)
NGK: DCPR6E -
23GT-87122-0 Carburetor Rerair Kit
3.5B/2.5B/2B~Carburetor Rerair Kit
3.5B/2.5B/2B~ -
3GT-87122-1 Carburetor Rerair KitCarburetor Rerair Kit
-
23AB-87122-0 Carburetor repair kit f2/2.5/3/5a
3.5A/2.5A/2ACarburetor repair kit f2/2.5/3/5a
3.5A/2.5A/2A -
23GT-03231-0 Float
3.5B/2.5B/2B~ / FIG. 3-1-4Float
3.5B/2.5B/2B~ / FIG. 3-1-4 -
23AB-03231-0 Float f2.5a/3.5a
3.5A/2.5A/2AFloat f2.5a/3.5a
3.5A/2.5A/2A -
23H6-03240-0 Float Valve
FIG. 3-1-5Float Valve
FIG. 3-1-5 -
23H6-03244-0 Clip
FIG. 3-1-6Clip
FIG. 3-1-6 -
23H6-03232-0 Aym Pin, Float
FIG. 3-1-7Aym Pin, Float
FIG. 3-1-7 -
23H6-03222-0 Gasket,float Chamber
FIG. 3-1-9Gasket,float Chamber
FIG. 3-1-9 -
2922503-6412 Stud Bolt
FIG. 3-1-10Stud Bolt
FIG. 3-1-10 -
23H6-03293-0 O-ring,drain Screw
FIG. 3-1-12O-ring,drain Screw
FIG. 3-1-12 -
33AB-87121-0 Power Head Gasket SetPower Head Gasket Set
-
33AB-01024-1 3AB-01024-13AB-01024-1
-
33AB-01032-0 Thermostat cap gasketThermostat cap gasket
-
33AB-07432-0 Breather chamber cover gasketBreather chamber cover gasket
-
33AB-00121-0 Oil Seal
CRANK SHAFTOil Seal
CRANK SHAFT -
33H6-03293-0 O-ring,drain Screw
CARBURETORO-ring,drain Screw
CARBURETOR -
33H6-02011-0 Gasket, carburetorGasket, carburetor
-
33AB-02104-0 Intake manifold gasketIntake manifold gasket
-
33AB-07402-0 Oil pan gasketOil pan gasket
-
33R0-07422-0 New part
ENGINE OIL FILLER CAPNew part
ENGINE OIL FILLER CAP -
33AB-01215-0 Oil Seal
DRIVE SHAFTOil Seal
DRIVE SHAFT -
33V1-02012-0 O-Ring
CRANK CASE HEADO-Ring
CRANK CASE HEAD -
33AB-61012-0 Drive Shaft Housing GasketDrive Shaft Housing Gasket
-
43BMQ87301-1 Lower unit assy insin f2.5a/3.5a/b
OR 3BMQ87301-0 / FOR TRANSOM SLower unit assy insin f2.5a/3.5a/b
OR 3BMQ87301-0 / FOR TRANSOM S -
3BMQ87301-0 Lower unit assy insin f2.5a/3.5a/bLower unit assy insin f2.5a/3.5a/b
-
43BMQ87302-1 Lower unit assy inlin f2.5a/3.5a/b
OR 3BMQ87302-0 / FOR TRANSOM LLower unit assy inlin f2.5a/3.5a/b
OR 3BMQ87302-0 / FOR TRANSOM L -
3BMQ87302-0 Lower unit assy inlin f2.5a/3.5a/bLower unit assy inlin f2.5a/3.5a/b
-
53F0Q87323-1 Propeller shaft housing assyPropeller shaft housing assy
-
63AB-87322-0 New partNew part
-
6369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
6369-65022-0 Key water pump impellerKey water pump impeller
-
63F0-65011-0 Liner Pump CaseLiner Pump Case
-
63F0-65018-0 New partNew part
-
63AB-65025-0 WATER PUMP GUIDE PLATEWATER PUMP GUIDE PLATE
-
63F0-65029-0 New partNew part
-
73F0-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
7369-65022-0 Key water pump impellerKey water pump impeller
-
73F0-65018-0 New partNew part
-
73F0-65029-0 New partNew part
-
73F0-60223-0 Oil Seal 10-22-8
PUMP CASE LOWEROil Seal 10-22-8
PUMP CASE LOWER -
73F0-65020-0 New partNew part
-
7309-60111-0 Oil Seal 12-24-8
PROPELLER SHAFTOil Seal 12-24-8
PROPELLER SHAFT -
7345-65015-0 O-Ring
PROPELLER SHAFT HOUSINGO-Ring
PROPELLER SHAFT HOUSING -
7369-66021-1 O?????2.5-4.9
CAM RODO?????2.5-4.9
CAM ROD -
7301-66023-0 O-Ring
BUSHINGO-Ring
BUSHING -
83ABQ87312-0 Extension housing kit inlin
FOR TRANSOM LExtension housing kit inlin
FOR TRANSOM L -
83ABQ61100-0 Extension housing inlin f2.5ab/3.5ab
FIG. 9-8Extension housing inlin f2.5ab/3.5ab
FIG. 9-8 -
83AB-60003-0 Drive shaft bushing
FIG. 9-9Drive shaft bushing
FIG. 9-9 -
83AB-64332-0 Drive shaft bushing stopper
FIG. 9-10Drive shaft bushing stopper
FIG. 9-10 -
8172-36008-0 Grommet
FIG. 9-11Grommet
FIG. 9-11 -
89101E3-5612 Bolt & washer
OR 910113-5612 / FIG. 9-12Bolt & washer
OR 910113-5612 / FIG. 9-12 -
83F0-61101-1 Stud Bolt
FIG. 9-13Stud Bolt
FIG. 9-13 -
89301E3-0600 Nut
OR 930113-0600 / FIG 9-14Nut
OR 930113-0600 / FIG 9-14 -
930103-0600 NutNut
-
83AB-60001-1 Bolt 6-30 precoated
FIG. 9-15Bolt 6-30 precoated
FIG. 9-15 -
83AB-64307-0 Drive shaft inlin f2.5a/3.5a
FIG. 10-1Drive shaft inlin f2.5a/3.5a
FIG. 10-1 -
83F0-66013-0 Cam Rod L
FIG 12-9Cam Rod L
FIG 12-9 -
8951407-0308 Spring Washer
FIG. 12-10Spring Washer
FIG. 12-10 -
83AB-65192-0 Water pipe inlin f2.5a/3.5a
FIG. 10-17Water pipe inlin f2.5a/3.5a
FIG. 10-17 -
83AB-01111-0 Dowel Pin 6-12
FIG. 9-25Dowel Pin 6-12
FIG. 9-25 -
93V1Q63003-3 Handle assy (amb)
OR 3V1Q63003-2Handle assy (amb)
OR 3V1Q63003-2 -
3V1Q63003-4 Handle assy (amb)Handle assy (amb)
-
93V1Q63011-2 Tiller handle (amb)
OR 3V1Q63011-1Tiller handle (amb)
OR 3V1Q63011-1 -
3V1Q63011-3 Tiller handle (amb)Tiller handle (amb)
-
93R3-63012-0 GripGrip
-
93H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
93H6-63510-0 BushingBushing
-
99208E3-0518 Screw
OR 920813-0518Screw
OR 920813-0518 -
920803-0518 ScrewScrew
-
93B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
9921503-0612 Stud Bolt
OR 921513-0612Stud Bolt
OR 921513-0612 -
93V1-63035-1 Friction PieceFriction Piece
-
93V1-63077-0 Adjusting NutAdjusting Nut
-
93V1-63036-0 Spring WasherSpring Washer
-
9910103-0625 Bolt
OR 910113-0625Bolt
OR 910113-0625 -
93V9-72019-0 Label,ThrottleLabel,Throttle
-
93V1-63041-0 Throttle ShaftThrottle Shaft
-
9350-67154-0 New partNew part
