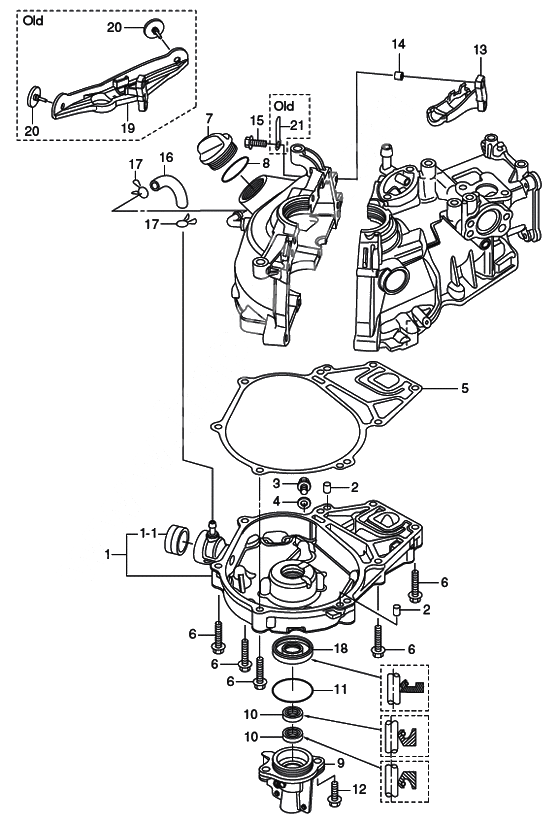

Oil pan для Tohatsu MFS3.5B - 2009 года выпуска

№

Артикул

Название
1

3ABB07400-0 Oil pan assy f2.5ab/3.5ab

Oil pan assy f2.5ab/3.5ab

19 050 ₽
1-1

3AB-07421-0 Oil level gauge

Oil level gauge

1 070 ₽
2

345-01111-0 Dowel Pin 6-12

Dowel Pin 6-12

170 ₽
3

3H6-07705-1 Bolt drain
(OLD PART NO 3H6-07405-0) / # 022564XH~

Bolt drain
(OLD PART NO 3H6-07405-0) / # 022564XH~

1 010 ₽
4

3H6-07406-0 Washer

Washer

320 ₽
5

3AB-07402-0 Oil pan gasket

Oil pan gasket

2 710 ₽
6

9101F4-5635 Bolt & washer
OR 910114-5635

Bolt & washer
OR 910114-5635

190 ₽
9101E3-5635 Bolt & washer

Bolt & washer

230 ₽
7

3R0-71015-0 Filler Cap,Engine Oil

Filler Cap,Engine Oil

360 ₽
8

3R0-07422-0 New part

New part

210 ₽
9

3AB-01210-0 Crank case head

Crank case head

2 090 ₽
10

3AB-01215-0 Oil Seal

Oil Seal

1 560 ₽
11

3V1-02012-0 O-Ring

O-Ring

270 ₽
12

9101E3-5620 Bolt & washer
OR 910113-5620

Bolt & washer
OR 910113-5620

360 ₽
13

3GT-05101-0 Bracket
3.5B /2.5B /2B~

Bracket
3.5B /2.5B /2B~

3 450 ₽
14

3A0-76079-0 Collar, 6.2-9-7.5

Collar, 6.2-9-7.5

600 ₽
15

9101E3-5620 Bolt & washer
OR 910113-5620

Bolt & washer
OR 910113-5620

360 ₽
16

98AB-5-0080 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

110 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
17

338-02215-0 Clip

Clip

140 ₽
18

3AB-00121-0 Oil Seal

Oil Seal

1 770 ₽
19

3AB-05101-0 Stopper bracket
3.5A/2.5A/2A

Stopper bracket
3.5A/2.5A/2A

1 800 ₽
20

1E0-09104-0 Rubber damper
3.5A//2.5A/2A

Rubber damper
3.5A//2.5A/2A

1 280 ₽
21

398-06972-0 Clamp,6.5-67P
# 01654XG~ / 3.5A/2.5A/2A

Clamp,6.5-67P
# 01654XG~ / 3.5A/2.5A/2A

200 ₽
