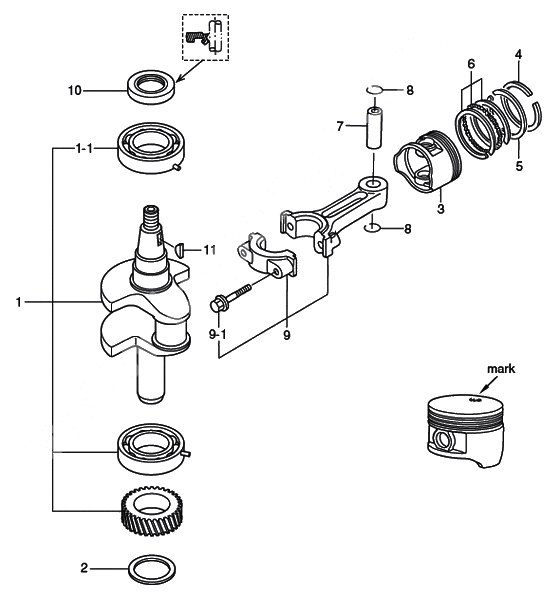

Piston & crank shaft для Tohatsu MFS3.5B - 2009 года выпуска
-
№АртикулНазвание
-
13AB-00070-0 PISTON & CRANKSHAFT
WITH GEARPISTON & CRANKSHAFT
WITH GEAR -
1-19603-3-6204 Ball BearingBall Bearing
-
23AB-00115-0 Thrust PlateThrust Plate
-
33AB-00001-1 PistonPiston
-
3AB-00001-0 PistonPiston
-
43V1-00011-0 Piston Ring TOPPiston Ring TOP
-
53V1-00012-0 Piston Ring 2ndPiston Ring 2nd
-
63V1-00013-0 Piston Ring OilPiston Ring Oil
-
7332-00021-1 Piston Pin
OR 332-00021-0Piston Pin
OR 332-00021-0 -
332-00021-0 Piston PinPiston Pin
-
8350-00024-1 Clip piston pinClip piston pin
-
93AB-00040-0 ШатунШатун
-
9-13AB-00059-0 Connecting rod boltConnecting rod bolt
-
103AB-00121-0 Oil SealOil Seal
-
11309-00131-0 Key, MagnetoKey, Magneto
Все узлы модели:
- Assembly kit
- Camshaft & valve
- Carburetor
- Clamp bracket & swivel bracket
- Cowl
- Cylinder-crankcase
- Drive shaft housing & gear case
- Gear case (drive shaft)
- Gear case (propeller shaft)
- Integral fuel tank
- Magneto
- Oil pan
- Optional parts & accessories
- • Piston & crank shaft
- Recoil starter
- Shift
- Tiller handle & throttle
