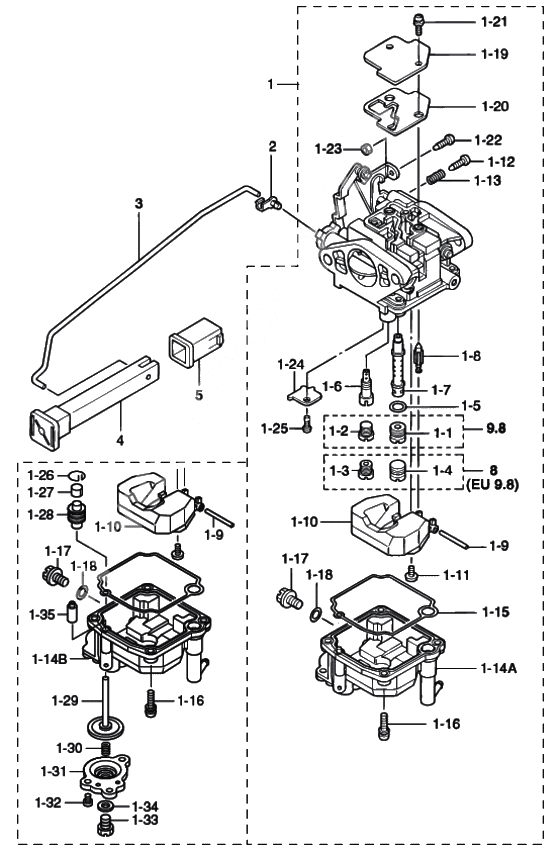

Carburetor для Tohatsu MFS8A3 - 2009 года выпуска
-
№АртикулНазвание
-
13V1-03100-2 Carburetor
# 036546XD~ / FOR MF & EF/EFT (MARK: 3V1FB)Carburetor
# 036546XD~ / FOR MF & EF/EFT (MARK: 3V1FB) -
13V1-03133-2 Carburetor
#036546XD~ / FOR EP (MARK: 3V1PB)Carburetor
#036546XD~ / FOR EP (MARK: 3V1PB) -
1-13V2-04492-0 Main Jet #92
NOT USEDMain Jet #92
NOT USED -
1-103C8-03125-0 FloatFloat
-
1-11921703-0406 Stud BoltStud Bolt
-
1-123V2-03179-0 Stop Screw
L=18 / # 036546XD~Stop Screw
L=18 / # 036546XD~ -
1-133V2-03157-0 Spring Washer
L=14 / # 036546XD~Spring Washer
L=14 / # 036546XD~ -
1-14A3V1-03120-0 Float ChamberFloat Chamber
-
1-14B3Y0-03120-0 Float chamber f9.9c/w/accellerator pump
OLD CARBURETOR (F9.8A3) / MARK 3DPFA & 3DPPAFloat chamber f9.9c/w/accellerator pump
OLD CARBURETOR (F9.8A3) / MARK 3DPFA & 3DPPA -
1-153V1-03121-0 Gasket,float ChamberGasket,float Chamber
-
1-16922503-6412 Stud BoltStud Bolt
-
1-173V1-03192-0 Drain ScrewDrain Screw
-
1-183V1-03193-0 O-RingO-Ring
-
1-193C8-03181-0 Cover PlateCover Plate
-
1-23V2-03169-0 Plug
NOT USEDPlug
NOT USED -
1-203V1-03182-0 Gasket,Cabretor CoverGasket,Cabretor Cover
-
1-21922503-6410 Stud BoltStud Bolt
-
1-223V1-03179-0 Stop Screw
L=15 / FOR MF & EF/EFTStop Screw
L=15 / FOR MF & EF/EFT -
1-233V1-03191-0 Nut
FOR MF & EF/EFTNut
FOR MF & EF/EFT -
1-243V1-03128-0 PlatePlate
-
1-25922503-0305 Stud BoltStud Bolt
-
1-263AA-03189-0 Retaining ring
FOR EURetaining ring
FOR EU -
1-273AA-03190-0 Cap
FOR EUCap
FOR EU -
1-283AA-03311-0 Rubber boot
FOR EURubber boot
FOR EU -
1-293AA-03315-0 Plunger f9.9c
FOR EUPlunger f9.9c
FOR EU -
1-33V1-04476-0 Main Jet #76
OLD PART NO. 3V1-04676-0Main Jet #76
OLD PART NO. 3V1-04676-0 -
1-33V1-04471-0 Main jet #71 8a (high altitude up to 10 000 ft)
FOR EUMain jet #71 8a (high altitude up to 10 000 ft)
FOR EU -
1-303AA-03314-0 Coil spring f9.9c
FOR EUCoil spring f9.9c
FOR EU -
1-313Y0-03197-0 Diaphragm cover
FOR EUDiaphragm cover
FOR EU -
1-32921503-0508 Stud Bolt
FOR EUStud Bolt
FOR EU -
1-333AA-03192-0 Drain Screw
FOR EUDrain Screw
FOR EU -
1-343AA-03193-0 Drain screw gasket
FOR EUDrain screw gasket
FOR EU -
1-43V1-03169-0 PlugPlug
-
1-53V1-03116-0 O-Ring
OLD PART NO. 3V1-03194-0O-Ring
OLD PART NO. 3V1-03194-0 -
1-63V1-04539-0 Slow Jet#39
OLD PART NO. 3V1-04739-0Slow Jet#39
OLD PART NO. 3V1-04739-0 -
1-63V1-04537-0 Slow jet (#37)(make-to order)
FOR EUSlow jet (#37)(make-to order)
FOR EU -
1-73V1-03141-0 Main NozzleMain Nozzle
-
1-83V1-03147-1 Float Valve
# 010322XD~Float Valve
# 010322XD~ -
1-93C8-03126-0 Float Arm PinFloat Arm Pin
-
2346-67196-1 Rod Snap 3-b
FOR MF & EF/EFTRod Snap 3-b
FOR MF & EF/EFT -
33Y3-67192-0 Choke Rod
9.8A3/8A3 # 026832XE~ / FOR MF & EF/EFTChoke Rod
9.8A3/8A3 # 026832XE~ / FOR MF & EF/EFT -
43C8-67151-1 Choke Rod
# 036546XD~ / FOR MF & EF/EFTChoke Rod
# 036546XD~ / FOR MF & EF/EFT -
53C8-67156-0 Bushing, Chrok Nobu
FOR MF & EF/EFTBushing, Chrok Nobu
FOR MF & EF/EFT
