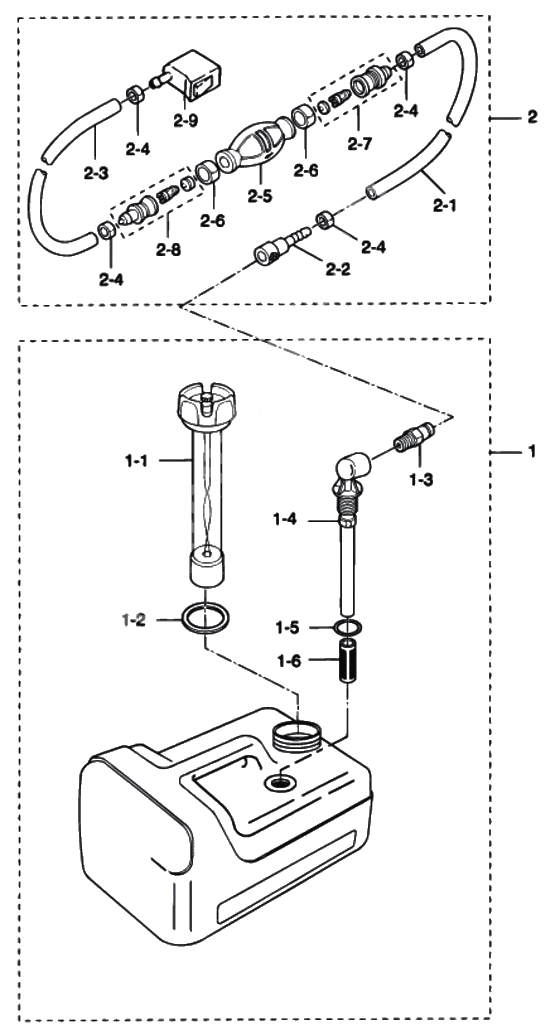

Fuel tank для Tohatsu MFS8A3 - 2009 года выпуска
-
№АртикулНазвание
-
13B2-70167-0 New part
TOHATSUNew part
TOHATSU -
19999-8-FT12 Fuel tank 12l (3.1 gal) epa cap (nissan)
NISSANFuel tank 12l (3.1 gal) epa cap (nissan)
NISSAN -
3Y3-70167-1 Fuel tank 12l (3.1 gal) epa cap (nissan)Fuel tank 12l (3.1 gal) epa cap (nissan)
-
1-13B2-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43B2-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23H6-70200-1 Primer bulb assy (4-stroke - 4-30hp)
L=3040Primer bulb assy (4-stroke - 4-30hp)
L=3040 -
3H6-70200-2 Primer bulb assy (4-stroke - 4-30hp)Primer bulb assy (4-stroke - 4-30hp)
-
23AC-70200-2 Primer bulb assy (low permeation)
# 004294XK~ / USA ONLYPrimer bulb assy (low permeation)
# 004294XK~ / USA ONLY -
3AD-70200-2 Primer bulb assy (low permeation)Primer bulb assy (low permeation)
-
2-198AB-7-1600 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
OR 98AB-701600Fuel pipe 7mm/5/16in (1 ea.=1 meter)
OR 98AB-701600 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
2-13GF-70240-0 Hose (low permeation)
USA ONLYHose (low permeation)
USA ONLY -
2-23GF-70281-0 Fuel connectorFuel connector
-
2-398AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
OR 98AB-70-700Fuel pipe 7mm/5/16in (1 ea.=1 meter)
OR 98AB-70-700 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
2-33GF-70241-0 Hose (low permeation)
USA ONLYHose (low permeation)
USA ONLY -
2-4332-70201-0 ClampClamp
-
2-53C7-70211-1 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-9394-70250-0 Соединитель топливныйСоединитель топливный
