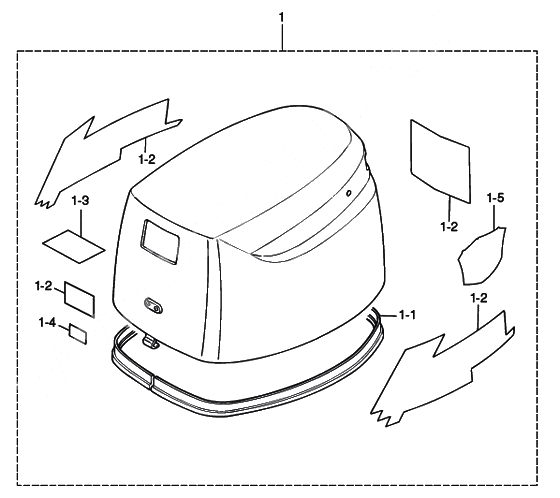

Top cowl для Tohatsu MFS8A3 - 2009 года выпуска
-
№АртикулНазвание
-
13V1Q67645-0 Motor cover upper mfs8/9.8a3 (aqua marine blue)
TOHATSU / OLD PART NO. 3V2Q67630-2Motor cover upper mfs8/9.8a3 (aqua marine blue)
TOHATSU / OLD PART NO. 3V2Q67630-2 -
3V1Q67645-4 Motor cover upper mfs8/9.8a3 (aqua marine blue)Motor cover upper mfs8/9.8a3 (aqua marine blue)
-
13Y3Q67645-0 Upper motor cover (nsf8a3/9.8a3) amb
NISSANUpper motor cover (nsf8a3/9.8a3) amb
NISSAN -
3Y3Q67645-2 Upper motor cover (nsf8a3/9.8a3) ambUpper motor cover (nsf8a3/9.8a3) amb
-
1-13V1-67501-0 Seal rubber,top cowl
L=1295Seal rubber,top cowl
L=1295 -
1-23V1-87801-1 Decal set mfs8a3 (aqua marine blue)
TOHATSUDecal set mfs8a3 (aqua marine blue)
TOHATSU -
3V1-87801-4 Decal set mfs8a3 (aqua marine blue)Decal set mfs8a3 (aqua marine blue)
-
1-23Y3N87801-1 Decal set nsf8a3 (aqua marine blue)
NISSANDecal set nsf8a3 (aqua marine blue)
NISSAN -
1-33R0-72180-0 Caution Lable ACaution Lable A
-
1-43H6-76199-0 Label,oil PressureLabel,oil Pressure
-
1-53BJ-67563-0 Decal ptt
FOR EFT/EPTDecal ptt
FOR EFT/EPT
Все узлы модели:
- Assembly kits
- Bottom cowl
- Bracket (for eft & ept type)
- Bracket (for ep type)
- Bracket (for mf & ef type)
- Cable
- Carburetor
- Component parts of remote control box assy. (electrical parts)
- Component parts of remote control box assy.
- Cylinder & crankcase
- Cylinder head & oil pump
- Drive shaft housing
- Electric parts
- Fuel tank
- Intake manifold & fuel pump
- Lower unit
- Magneto
- Optional parts (accessories)
- Optional parts (remote control for f type)
- Piston & crank shaft
- Power trim
- Pulley & timing belt
- Recoil starter
- Remote control parts
- Shift
- Tiller handle
- • Top cowl
