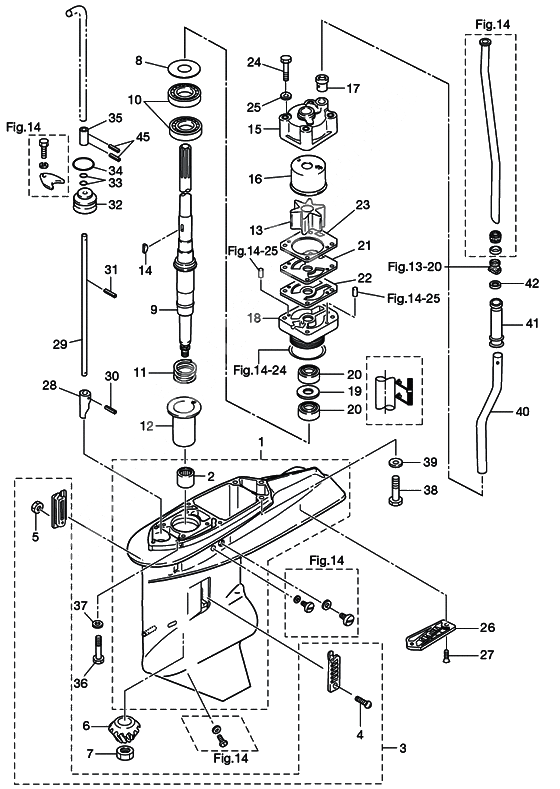

Gear case (drive shaft) for mwd50 bigfoot only для Tohatsu MD40B2 - 2010 года выпуска
-
№АртикулНазвание
-
2353-60211-0 New partNew part
-
33B7-60205-0 Water Strainer SetWater Strainer Set
-
4921503-0438 Stud BoltStud Bolt
-
5930403-0400 Nylon NutNylon Nut
-
63F3-64020-0 Bevel Gear BBevel Gear B
-
7353-64027-0 Nut Bevel Gear BNut Bevel Gear B
-
8353-64081-0 Shim 44-50.5-0.1Shim 44-50.5-0.1
-
8353-64082-0 Shim 44-50.5-0.15Shim 44-50.5-0.15
-
8353-64083-0 Shim 44-50.5-0.3Shim 44-50.5-0.3
-
103S7-60213-0 Bearing,6205rBearing,6205r
-
11353-64327-0 Пружина валаПружина вала
-
123A3-64328-0 Guide Drive Shaft SpringGuide Drive Shaft Spring
-
133B7-65021-2 Крыльчатка водной помпыКрыльчатка водной помпы
-
143B7-65022-0 Key, water pump impellerKey, water pump impeller
-
153B7-65016-0 Upper pump case ass'yUpper pump case ass'y
-
163B7-65238-0 Liner, chrome plated water pump case
CHROMIUM PLATEDLiner, chrome plated water pump case
CHROMIUM PLATED -
173B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
183F3-65017-1 Pump Case LowerPump Case Lower
-
193F3-64084-0 Shim,36.5-30-0.5Shim,36.5-30-0.5
-
203F3-60223-0 Oil Seal 22-37-8Oil Seal 22-37-8
-
213F3-65239-1 Guide plate,chrome plated
CHROMIUM PLATEDGuide plate,chrome plated
CHROMIUM PLATED -
223B7-65029-0 Gasket, guide plateGasket, guide plate
-
233B7-65018-0 Прокладка насосаПрокладка насоса
-
249161E3-0880 BoltBolt
-
25940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
263F3-60204-0 Sub Water StrainerSub Water Strainer
-
27921503-0608 Stud BoltStud Bolt
-
30951403-3514 Spring WasherSpring Washer
-
31951403-3510 New partNew part
-
323B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
33345-66021-0 O-RingO-Ring
-
343B7-66023-0 O-RingO-Ring
-
363T1-60001-0 Bolt 8-35Bolt 8-35
-
3T1-60001-1 Bolt 8-35Bolt 8-35
-
379402E3-0800 WasherWasher
-
940203-0800 WasherWasher
-
383B7-60001-4 BoltBolt
-
3B7-60001-5 BoltBolt
-
399402E3-1000 WasherWasher
-
42345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
