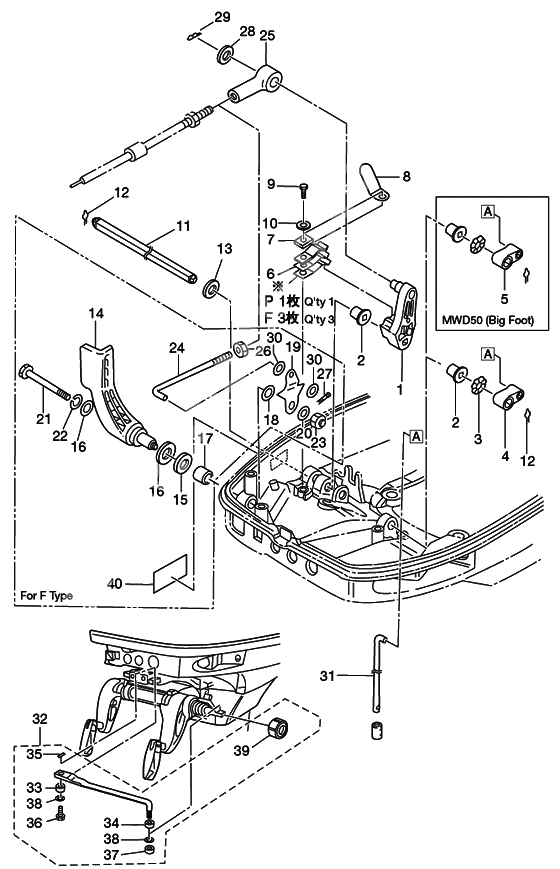

Shift для Tohatsu MD40B2 - 2010 года выпуска
-
№АртикулНазвание
-
13C8-66122-1 Shift ArmShift Arm
-
2350-67101-0 Bushing Shift LeverBushing Shift Lever
-
3941403-1200 WasherWasher
-
43C8-66225-0 Lever Shift RodLever Shift Rod
-
63C8-66112-0 Stopper shift lever
FOR P TYPEStopper shift lever
FOR P TYPE -
73C8-66116-0 Plate Shift Lever
FOR P TYPEPlate Shift Lever
FOR P TYPE -
8309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
99101F4-0614 BoltBolt
-
910114-0614 BoltBolt
-
10940103-0600 WasherWasher
-
113C8-66135-0 Shift Shaft
FOR P TYPEShift Shaft
FOR P TYPE -
12951703-0800 Snap Retainer
FOR P TYPESnap Retainer
FOR P TYPE -
133AA-83719-0 Washer
FOR P TYPEWasher
FOR P TYPE -
143T5-66110-0 Shift Lever
FOR F TYPEShift Lever
FOR F TYPE -
153T5-67147-0 Seal Ring,13.8-22-5
FOR F TYPESeal Ring,13.8-22-5
FOR F TYPE -
163C8-67146-0 Washer
FOR F TYPEWasher
FOR F TYPE -
17350-67105-0 New part
FOR F TYPENew part
FOR F TYPE -
18941403-1400 New part
FOR F TYPENew part
FOR F TYPE -
193T5-66129-0 Shift Lever B
FOR F TYPEShift Lever B
FOR F TYPE -
203C8-66308-0 New part
FOR F TYPENew part
FOR F TYPE -
21910103-0670 Bolt
FOR F TYPEBolt
FOR F TYPE -
22941303-0600 New part
FOR F TYPENew part
FOR F TYPE -
23930403-0600 Nylon Nut
FOR F TYPENylon Nut
FOR F TYPE -
243T5-66134-0 Rod, Shift Lever
FOR F TYPERod, Shift Lever
FOR F TYPE -
253B7-83715-1 Cable Joint
FOR P TYPECable Joint
FOR P TYPE -
3B7-83715-2 Cable JointCable Joint
-
263B2-83865-0 Nut(No,10-32VNF)
FOR F TYPENut(No,10-32VNF)
FOR F TYPE -
27951503-0212 Split Pin
FOR F TYPESplit Pin
FOR F TYPE -
283AA-83719-0 Washer
FOR P TYPEWasher
FOR P TYPE -
29951603-0800 R-Pin
FOR P TYPER-Pin
FOR P TYPE -
30940103-0500 Washer
FOR F TYPEWasher
FOR F TYPE -
313C8-66211-0 Shift RodShift Rod
-
323C8-84910-2 Drag Link Ass'y
FOR P TYPEDrag Link Ass'y
FOR P TYPE -
333C8-84914-1 Collar 9.6-13-6.5
FOR P TYPECollar 9.6-13-6.5
FOR P TYPE -
343C8-84916-0 Collar 9.6-19-6
FOR P TYPECollar 9.6-19-6
FOR P TYPE -
35951503-0215 Split Pin
FOR P TYPESplit Pin
FOR P TYPE -
363C8-84917-0 Bolt 3/8-19
FOR P TYPEBolt 3/8-19
FOR P TYPE -
37353-84918-0 Nylon Nut 3/8
FOR P TYPENylon Nut 3/8
FOR P TYPE -
38353-84916-0 Washer
FOR P TYPEWasher
FOR P TYPE -
393F3-84908-0 Seal Ring Drag Link
FOR P TYPESeal Ring Drag Link
FOR P TYPE -
403T5-67578-0 Lavel, Shift
FOR F TYPELavel, Shift
FOR F TYPE
