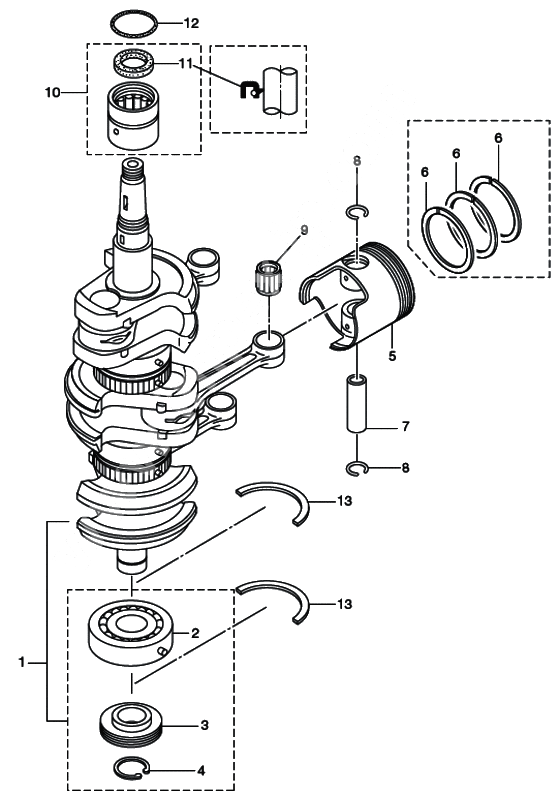

Piston & crank shaft для Tohatsu MD40B2 - 2010 года выпуска
-
№АртикулНазвание
-
13T5-00050-1 Crankshaft assyCrankshaft assy
-
23J2-00114-0 Подшипник 6305Подшипник 6305
-
33C8-09060-0 Drive Gear Oil PumpDrive Gear Oil Pump
-
4945107-2500 C-RingC-Ring
-
53GF-00001-0 Piston (std)
STDPiston (std)
STD -
3GF-00001-1 Piston (std)Piston (std)
-
53GF-00004-0 Piston (0.5mm o/z)
OPTPiston (0.5mm o/z)
OPT -
3GF-00004-1 Piston (0.5mm o/z)Piston (0.5mm o/z)
-
63T5-00011-0 Поршневые кольца
STDПоршневые кольца
STD -
63T5-00014-0 Поршневые кольца
OPTПоршневые кольца
OPT -
73C8-00021-1 Piston PinPiston Pin
-
8334-00024-1 Clip, Piston PinClip, Piston Pin
-
9345-00042-0 Needle Bearing 17-21-27Needle Bearing 17-21-27
-
103T5-00113-0 Main Bearing UpperMain Bearing Upper
-
113T5-00121-0 Oil Seal 36-46-6Oil Seal 36-46-6
-
12353-00108-0 O-RingO-Ring
-
13346-00115-0 Thrust Plate CrankshaftThrust Plate Crankshaft
