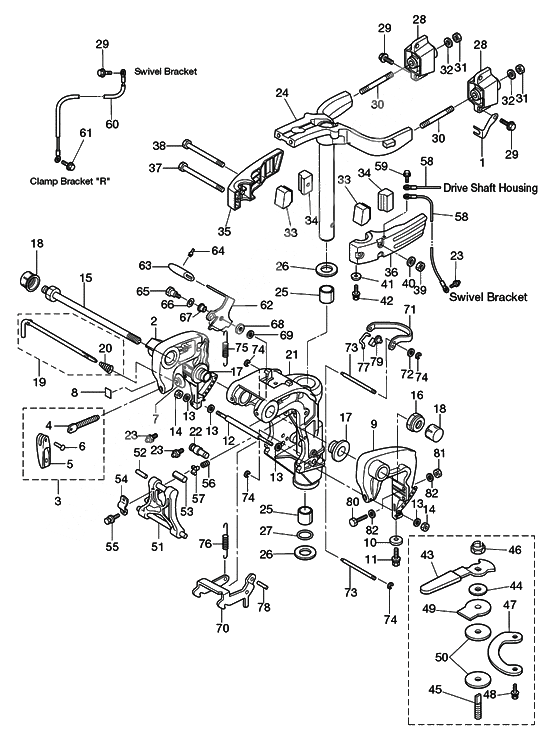

Bracket для Tohatsu MFS15C - 2010 года выпуска
-
№АртикулНазвание
-
13R3-65205-0 Rook Plate, Water PipeRook Plate, Water Pipe
-
23BJQ62112-0 Clamp bracket right (starboard)
STARBOARDClamp bracket right (starboard)
STARBOARD -
33AAQ62100-0 Clamp screw assy (amb)
RClamp screw assy (amb)
R -
3AAQ62105-0 Clamp screw assy (amb)Clamp screw assy (amb)
-
43AA-62103-0 Винт струбцины
RВинт струбцины
R -
5332Q62102-1 Handle clamp screw
RHandle clamp screw
R -
63C8-62104-2 Rivet
RRivet
R -
3C8-62104-1 RivetRivet
-
7332-62101-0 Pad clamp screw
RPad clamp screw
R -
83H8-72049-0 Labe
FOR MF/EFLabe
FOR MF/EF -
93BJQ62113-0 Clamp bracket left (port)
PORTClamp bracket left (port)
PORT -
10338-60218-2 New partNew part
-
11910103-5620 BoltBolt
-
123V6-62117-0 Distance PieceDistance Piece
-
139401E3-0600 Washer
RWasher
R -
940113-0600 WasherWasher
-
149301E3-0600 NutNut
-
930103-0600 NutNut
-
153AC-62191-0 Swivel bracket bolt
BRACKET BOLTSwivel bracket bolt
BRACKET BOLT -
16346-62124-1 Bracket nutBracket nut
-
17349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
18346-62127-0 Cap,Bracket Bolt
FOR MF/EFCap,Bracket Bolt
FOR MF/EF -
193BJ-62123-0 Thrust rod assy (w-spring)Thrust rod assy (w-spring)
-
20369-62122-2 Spring Thrust RodSpring Thrust Rod
-
213BJQ62309-0 Swivel bracket assy
FOR MF/EF/EPSwivel bracket assy
FOR MF/EF/EP -
223BA-66314-0 PinPin
-
23344-67177-0 МасленкаМасленка
-
243BKQ62010-0 Steering shaft assySteering shaft assy
-
253R3-62417-0 BushingBushing
-
263H8-62423-1 Surust PlateSurust Plate
-
273H8-62415-0 O-RingO-Ring
-
283BJ-61301-0 Rubber mount (upper)
FOR TRANSOM S & LRubber mount (upper)
FOR TRANSOM S & L -
283BA-61301-0 Rubber mount (upper)
FOR TRANSOM ULRubber mount (upper)
FOR TRANSOM UL -
299101E3-5830 BoltBolt
-
910103-5830 BoltBolt
-
303R3-61313-1 Stud BoltStud Bolt
-
31930403-1000 Nylon NutNylon Nut
-
329401E3-1000 WasherWasher
-
333BJ-61336-0 Damper (lower)Damper (lower)
-
343BJ-61302-0 Rubber mount (lower)Rubber mount (lower)
-
353BJQ61401-0 Mount bracket right (starboard)
STARBOARDMount bracket right (starboard)
STARBOARD -
363BJQ61402-0 Mount bracket left (port)
PORTMount bracket left (port)
PORT -
379101E3-0855 BoltBolt
-
910103-0855 BoltBolt
-
389101E3-0885 BoltBolt
-
9161E3-0885 BoltBolt
-
399301E3-0800 NutNut
-
930103-0800 NutNut
-
403P0-66233-0 New partNew part
-
41338-60218-2 New partNew part
-
42910103-5620 BoltBolt
-
433AA-62441-0 Handle,Co-Pilot
FOR MF/EF/EFTHandle,Co-Pilot
FOR MF/EF/EFT -
443R3-62443-0 Washer
FOR MF/EF/EFTWasher
FOR MF/EF/EFT -
453R3-62445-0 Bolt
FOR MF/EF/EFTBolt
FOR MF/EF/EFT -
463V5-62442-0 Nylon Nut(2T)M8 P1.25
FOR MF/EF/EFTNylon Nut(2T)M8 P1.25
FOR MF/EF/EFT -
473R3-62447-0 Plate, Co Pilot
FOR MF/EF/EFTPlate, Co Pilot
FOR MF/EF/EFT -
489101E3-5616 Bolt & washer
FOR MF/EF/EFTBolt & washer
FOR MF/EF/EFT -
493R3-62448-1 Washer, Co Pilot
FOR MF/EF/EFTWasher, Co Pilot
FOR MF/EF/EFT -
503R3-62449-0 Disk, Co Pilot
FOR MF/EF/EFTDisk, Co Pilot
FOR MF/EF/EFT -
513G2Q62993-1 Tilt stopper (amb)Tilt stopper (amb)
-
52951403-0540 Spring PinSpring Pin
-
951403-0535 Spring PinSpring Pin
-
53350-62437-0 Bushing Tilt StopperBushing Tilt Stopper
-
54350-62439-1 Set Plate Tilt StopperSet Plate Tilt Stopper
-
559101E3-5818 BoltBolt
-
910103-5818 BoltBolt
-
563C8-62421-1 Spring Friction PlateSpring Friction Plate
-
57346-62438-0 Set PieceSet Piece
-
58398-62396-1 Ground WireGround Wire
-
59910103-5610 BoltBolt
-
60398-62396-1 Ground WireGround Wire
-
61910103-5612 BoltBolt
-
623BA-66311-0 Lever reverse lockLever reverse lock
-
633AL-66333-0 Lock lever gripLock lever grip
-
64346-66334-0 StopperStopper
-
653AL-05254-0 Shoulder boltShoulder bolt
-
669401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
673AL-05212-0 BushingBushing
-
683AA-83719-0 WasherWasher
-
693R0-66308-0 WasherWasher
-
703BA-66322-0 Reverse LockReverse Lock
-
713BA-66313-0 Arm reverse lockArm reverse lock
-
723BA-63207-0 CollarCollar
-
733G2-66324-0 Shaft Reverse Lock BShaft Reverse Lock B
-
74945303-0500 E-RingE-Ring
-
753BA-66323-0 Spring reverse lock leverSpring reverse lock lever
-
763BA-66315-0 Spring reverse lockSpring reverse lock
-
773BA-66305-0 Link reverse lockLink reverse lock
-
78951403-0535 Spring WasherSpring Washer
-
79345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
809101E3-0885 Bolt
OPTBolt
OPT -
9161E3-0885 BoltBolt
-
819301E3-0800 Nut
OPTNut
OPT -
930103-0800 NutNut
-
829401E3-0800 Washer
OPTWasher
OPT -
940103-0800 WasherWasher
