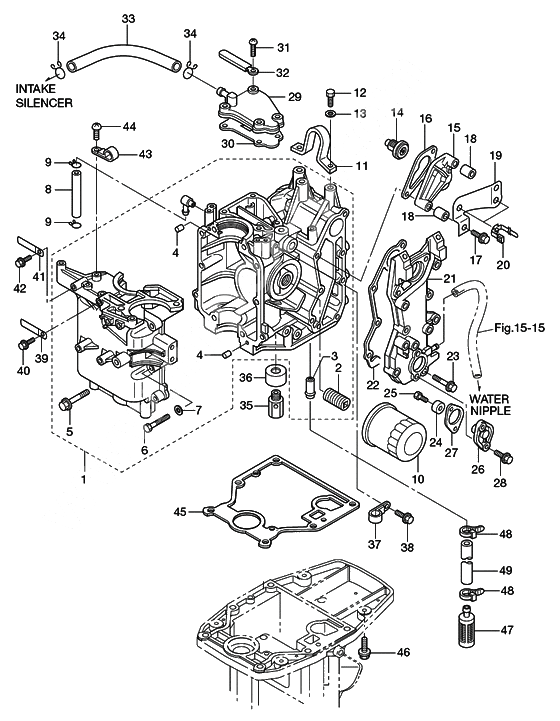

Cylinder & crankcase для Tohatsu MFS15C - 2010 года выпуска
-
№АртикулНазвание
-
13BJB01100-0 Cylinder crank caseCylinder crank case
-
23H8-07636-0 Bolt, Oil FilterBolt, Oil Filter
-
33H8-02093-0 ЗолотникЗолотник
-
4345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
53H8-01012-1 BoltBolt
-
69161F9-0630 BoltBolt
-
916119-0630 BoltBolt
-
79401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
898AB-5-0110 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
9338-02215-0 ClipClip
-
103R0-07615-0 Oil Filter Ass'yOil Filter Ass'y
-
113C7-01513-2 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
3C7B01513-0 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
129101E4-0820 BoltBolt
-
910114-0820 BoltBolt
-
139402E3-0800 WasherWasher
-
940203-0800 WasherWasher
-
143R3-01030-0 Thermostat
MARK 60Thermostat
MARK 60 -
16346-01032-0 New partNew part
-
179101E3-5650 BoltBolt
-
183AL-76079-0 Collar 6.2-9-9.55Collar 6.2-9-9.55
-
193BJ-06869-0 BracketBracket
-
203BJ-84398-0 Lead wire band 135Lead wire band 135
-
213BJB02301-0 Exhaust CoverExhaust Cover
-
223R3-02305-0 Exhaust CoverExhaust Cover
-
239101F4-5625 BoltBolt
-
910114-5625 BoltBolt
-
24369-60218-1 New partNew part
-
25910103-0616 BoltBolt
-
263H8B01143-1 Cap anodeCap anode
-
273R3-01144-0 O-RingO-Ring
-
289101E3-5620 Bolt & washerBolt & washer
-
293R3B07431-0 Cap,Breather VoverCap,Breather Vover
-
303R3-07432-1 GascketGascket
-
313R3-07430-0 screw,6-20screw,6-20
-
32309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
3398AB-7-0120 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FOR BREATHER / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FOR BREATHER / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
343C7-02215-0 ClipClip
-
353V2-07620-0 Pluger Ass'yPluger Ass'y
-
363H8-07629-0 Cover, PlungerCover, Plunger
-
37345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
389101E3-5612 Bolt & washerBolt & washer
-
39398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
409101E3-5612 Bolt & washerBolt & washer
-
413Z5-06972-1 Clamp 6.5-120p
FOR EP/EPTClamp 6.5-120p
FOR EP/EPT -
3Z5-06972-0 Clamp 6.5-120pClamp 6.5-120p
-
429101E3-5612 Bolt & washer
FOR EP/EPTBolt & washer
FOR EP/EPT -
43345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
449215E3-0616 ScrewScrew
-
921503-0616 ScrewScrew
-
453V9-07402-1 Gasket oil panGasket oil pan
-
463BJ-61017-1 BoltBolt
-
473R3-07710-1 Oil strainerOil strainer
-
48369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
4998AH-9-5150 Hose
98AH-951000Hose
98AH-951000 -
98AH-951000 HoseHose
