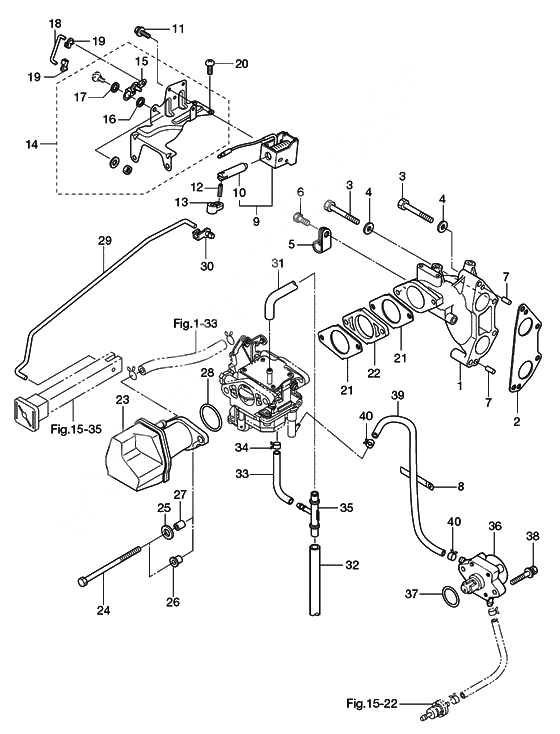

Intake manifold & fuel pump для Tohatsu MFS15C - 2010 года выпуска
-
№АртикулНазвание
-
13BJ-02091-0 Intake manifoldIntake manifold
-
23BJ-02104-0 Gasket intake manifoldGasket intake manifold
-
39161F4-0645 BoltBolt
-
916114-0645 BoltBolt
-
49401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
5345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
6910103-5612 BoltBolt
-
7345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
8309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
93BJ-76050-0 Choke Solenoid
FOR EP/EPTChoke Solenoid
FOR EP/EPT -
10361-76073-0 Plunger,Choke Solenoid
FOR EP/EPTPlunger,Choke Solenoid
FOR EP/EPT -
11921503-6406 Stud Bolt
FOR EP/EPTStud Bolt
FOR EP/EPT -
12951403-0312 Spring Washer
FOR EP/EPTSpring Washer
FOR EP/EPT -
133BJ-76057-0 Hook choke solenoid
FOR EP/EPTHook choke solenoid
FOR EP/EPT -
143BJ-76078-0 Bracket assy choke solenoid
FOR EP/EPTBracket assy choke solenoid
FOR EP/EPT -
153BJ-67152-0 Choke lever
FOR EP/EPTChoke lever
FOR EP/EPT -
163BJ-63721-0 Bushing 8.1-15-2.9
8.1-15-2.9 / FOR EP/EPTBushing 8.1-15-2.9
8.1-15-2.9 / FOR EP/EPT -
173BJ-05245-0 Washer 8.1-15-1.3
FOR EP/EPTWasher 8.1-15-1.3
FOR EP/EPT -
183BJ-76076-0 Link Rod
FOR EP/EPTLink Rod
FOR EP/EPT -
193V1-67196-0 Rod Snap
FOR EP/EPTRod Snap
FOR EP/EPT -
209215E3-0510 Screw
FOR EP/EPTScrew
FOR EP/EPT -
921503-0510 ScrewScrew
-
213BJ-02011-0 Gasket carburetorGasket carburetor
-
223BJ-03952-0 Insulator
15/20PSInsulator
15/20PS -
233BJ-02409-0 Intake silencerIntake silencer
-
243R0-03215-0 Bolt,6-100Bolt,6-100
-
259401E3-0600 Washer
FOR EP/EPTWasher
FOR EP/EPT -
940113-0600 WasherWasher
-
263BJ-06283-0 Collar 6.1-14-8.9
FOR MF/EFCollar 6.1-14-8.9
FOR MF/EF -
273A0-76079-0 Collar, 6.2-9-7.5
FOR EP/EPTCollar, 6.2-9-7.5
FOR EP/EPT -
283BJ-02419-0 Seal ring 2.4-35Seal ring 2.4-35
-
293BH-67192-0 Choke link rod
FOR MF/EF/EFTChoke link rod
FOR MF/EF/EFT -
303BJ-67196-0 Rod Snap
FOR MF/EF/EFTRod Snap
FOR MF/EF/EFT -
313BJ-07735-1 Breather hose (l=290mm)
FOR CARBURETORBreather hose (l=290mm)
FOR CARBURETOR -
3BJ-07735-0 Breather hose (l=290mm)Breather hose (l=290mm)
-
323BA-07735-0 Breather hose (l=50mm)
FOR CARBURETORBreather hose (l=50mm)
FOR CARBURETOR -
3398AL-3-0200 Hose - local purchaseHose - local purchase
-
34369-70098-2 Clip 6.8Clip 6.8
-
353BJ-01176-1 NippleNipple
-
3BJ-01176-0 NippleNipple
-
363H8-04000-1 Fuel Pump Ass'yFuel Pump Ass'y
-
389101E3-5625 Bolt & washerBolt & washer
-
3998AB-5-0260 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
403AB-35143-0 Clip @ 9.5Clip @ 9.5
