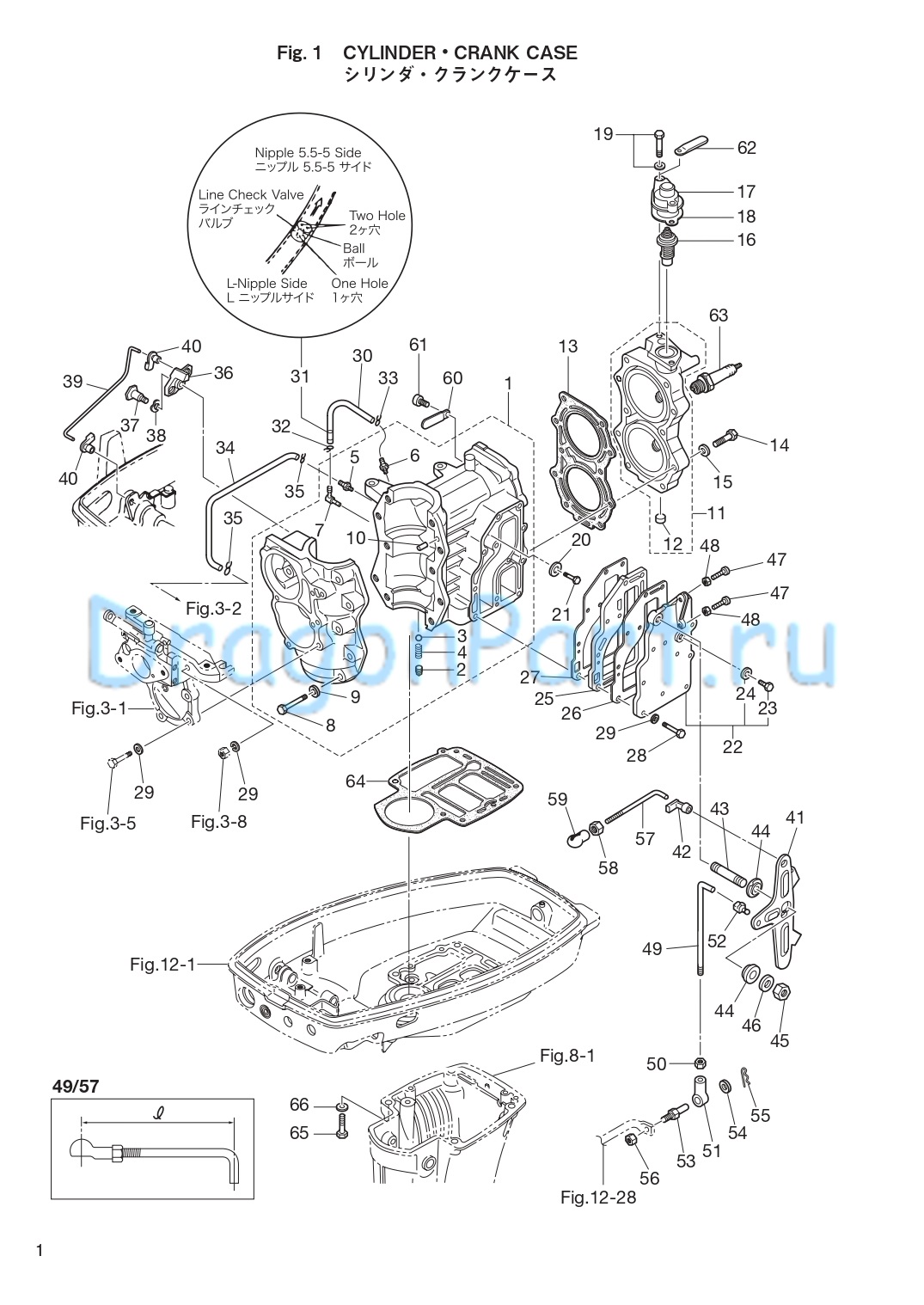

CYLINDER CRANK CASE для Tohatsu M9.9D2 - 2012 года выпуска
-
№АртикулНазвание
-
13G2B01100-2 Cyl Block & Crankcase Ass'y
for M15D2, M9.9D2Cyl Block & Crankcase Ass'y
for M15D2, M9.9D2 -
2350-00063-0 * Sealing Plug 4.9-4* Sealing Plug 4.9-4
-
3332-01121-1 * Nylon Ball 3/16* Nylon Ball 3/16
-
4332-01122-0 * Spring* Spring
-
5338-01131-1 * Nipple 4.8-5* Nipple 4.8-5
-
6393-01131-0 * Nipple 5.5-5* Nipple 5.5-5
-
7393-01137-0 * Nipple* Nipple
-
8910124-0845 * Bolt* Bolt
-
9940121-0800 * Washer* Washer
-
10345-01111-0 * Dowel Pin 6-12* Dowel Pin 6-12
-
11397B01001-0 Cylinder Head Ass'y
for M15D2, M9.9D2Cylinder Head Ass'y
for M15D2, M9.9D2 -
12350-01093-0 * Welch Plug* Welch Plug
-
13351-01005-1 Cylinder Head Gasket
for M15D2, M9.9D2Cylinder Head Gasket
for M15D2, M9.9D2 -
149161F9-0840 BoltBolt
-
15940121-0800 WasherWasher
-
16350-01030-1 Thermostat
Mark 52C PRVThermostat
Mark 52C PRV -
173H6B01031-0 Thermostat CapThermostat Cap
-
18346-01032-0 Thermostat Cap GasketThermostat Cap Gasket
-
199101F4-5630 BoltBolt
-
20338-60218-2 AnodeAnode
-
21910103-0616 BoltBolt
-
22350B02300-0 Exhaust Cover Ass'yExhaust Cover Ass'y
-
239106E3-0808 * Bolt* Bolt
-
24332-60006-0 * Gasket 8.1-15-1* Gasket 8.1-15-1
-
25350B02302-0 Exhaust Cover (Inner)Exhaust Cover (Inner)
-
26350-02305-2 Exhaust Cover GasketExhaust Cover Gasket
-
27350-02306-2 Exhaust Cover GasketExhaust Cover Gasket
-
289101F4-0625 BoltBolt
-
29940121-0600 WasherWasher
-
3098AL-40-270 Hose
98AL-401000Hose
98AL-401000 -
31393-01160-0 Check ValveCheck Valve
-
323T5-01133-0 Clip Ø8Clip Ø8
-
33338-01133-0 Clip Ø7Clip Ø7
-
3498AB-30-270 Hose
98AB-301000Hose
98AB-301000 -
35338-01133-0 Clip Ø7Clip Ø7
-
36350-05211-0 Throttle Limiter ArmThrottle Limiter Arm
-
37350-05227-1 Throttle Limiter ShaftThrottle Limiter Shaft
-
38941403-0800 Wave Washer d=8Wave Washer d=8
-
39350-05222-0 Starter Lock RodStarter Lock Rod
-
40345-05223-1 Rod Snap 3.5-2Rod Snap 3.5-2
-
41350-63711-1 Advancer ArmAdvancer Arm
-
423B7-63733-0 Rod Snap 5-2.5Rod Snap 5-2.5
-
43915221-0823 StudStud
-
44345-63713-0 Bushing 8-14-4Bushing 8-14-4
-
45930403-0800 Nylon Nut 8-P1.25Nylon Nut 8-P1.25
-
46334-66233-0 WasherWasher
-
47921503-0525 ScrewScrew
-
48930103-0500 NutNut
-
49398-63717-1 Rod 5-65L
for M18E2/15D2 1=78 for M9.9D2 1=75Rod 5-65L
for M18E2/15D2 1=78 for M9.9D2 1=75 -
50930103-0500 NutNut
-
51346-05234-0 Rod Joint Ø5Rod Joint Ø5
-
523B7-63733-0 Rod Snap 5-2.5Rod Snap 5-2.5
-
53353-83728-1 PinPin
-
543AA-83719-0 Washer 8.5-18-1.6Washer 8.5-18-1.6
-
55951603-0800 Snap Pin d=8Snap Pin d=8
-
56930103-0600 NutNut
-
57350-63715-1 Rod 5-60L
1=73Rod 5-60L
1=73 -
58930103-0500 NutNut
-
593B7-05243-0 Ball Joint ConnectorBall Joint Connector
-
60398-06972-0 Clamp 6.5-67PClamp 6.5-67P
-
61921503-0610 ScrewScrew
-
62398-06972-0 Clamp 6.5-67PClamp 6.5-67P
-
639701-1-1005 Spark Plug (B7HS10)
for DO STDSpark Plug (B7HS10)
for DO STD -
639701-1-1015 Spark Plug (BR7HS10)
for EX STD, DO OPTSpark Plug (BR7HS10)
for EX STD, DO OPT -
643M3-01303-0 Engine Basement GasketEngine Basement Gasket
-
653M3-61017-1 Bolt 8-45 8-45Bolt 8-45 8-45
-
669401E3-0800 WasherWasher
