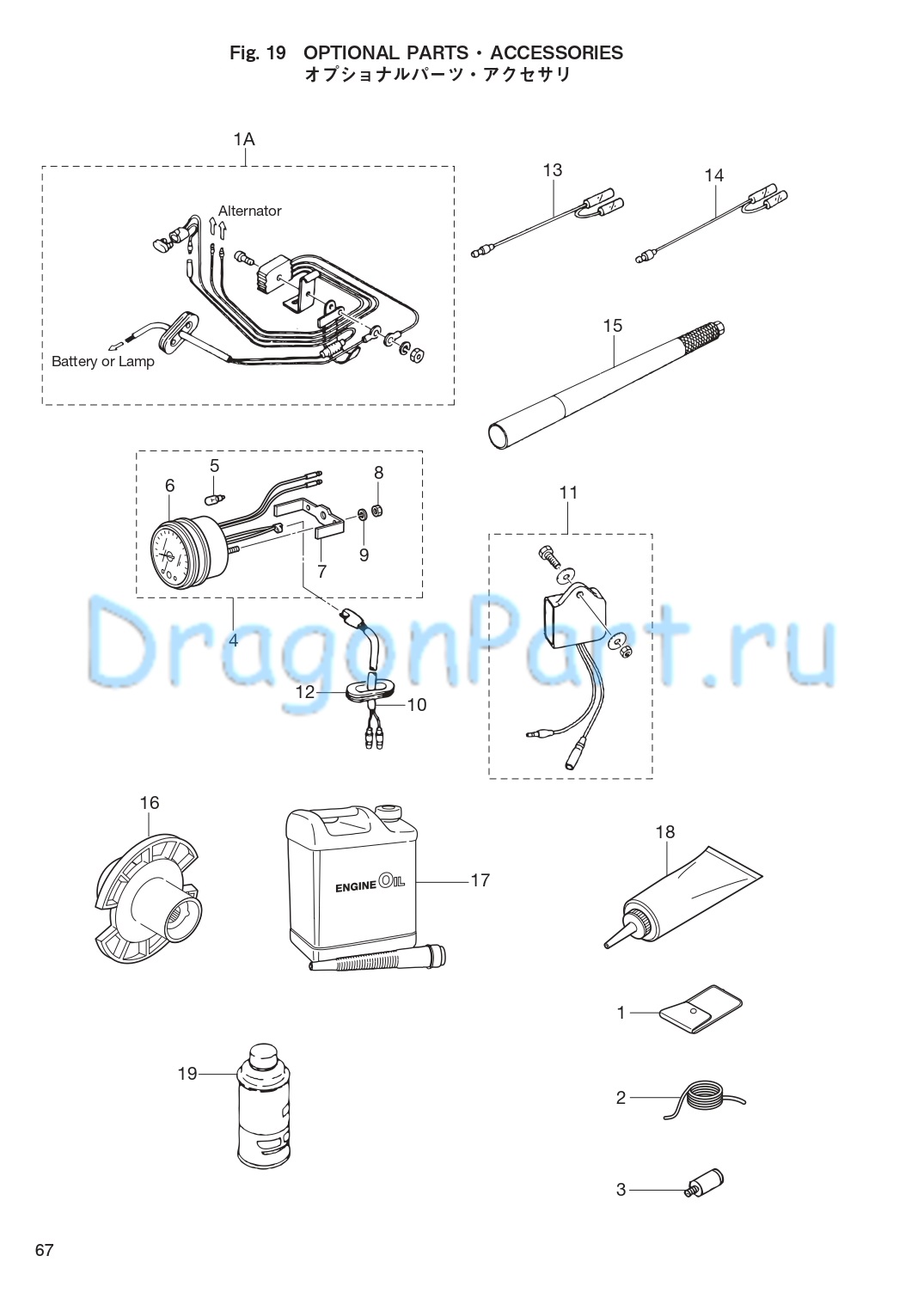

OPTIONAL PARTS ACCESSORIES для Tohatsu M9.9D2 - 2012 года выпуска
-
№АртикулНазвание
-
13C8-72100-1 Tool KitTool Kit
-
1a346-76160-2 Rectifier KitRectifier Kit
-
23B7-72201-0 Safety Rope Ø 6-1600Safety Rope Ø 6-1600
-
3336-60007-0 Flushing Plug
OPTFlushing Plug
OPT -
43B7-72530-2 Tachometer Ass'yTachometer Ass'y
-
53B7-72659-0 * Meter Bulb 12V-1.8W* Meter Bulb 12V-1.8W
-
63B7-72656-0 * Meter Damper* Meter Damper
-
73B7-72661-0 * Fitting Plate* Fitting Plate
-
8930103-0500 * Nut* Nut
-
9941303-0500 * Spring Washer* Spring Washer
-
10361-72539-0 Tachometer Lead WireTachometer Lead Wire
-
113P0-72679-0 Tachometer Unit KitTachometer Unit Kit
-
12345-67169-0 GrommetGrommet
-
13361-72542-0 Separate Cord
WhiteSeparate Cord
White -
14361-72543-0 Separate Cord
YellowSeparate Cord
Yellow -
153A1-63038-0 Long Handle L=1000Long Handle L=1000
-
153A1-63039-0 Long Handle L=800Long Handle L=800
-
16362-64110-0 Test Propeller Ass'yTest Propeller Ass'y
-
173C7-72301-0 Engine Oil 0.4LEngine Oil 0.4L
-
173C7-72302-0 Engine Oil1LEngine Oil1L
-
173C7-72304-0 Engine Oil 4LEngine Oil 4L
-
173C7-72303-0 Engine Oil 20LEngine Oil 20L
-
18332-72306-0 Gear Oil 500mlGear Oil 500ml
-
193AC-72326-0 Touch-Up Paint
Aqua MarineTouch-Up Paint
Aqua Marine
