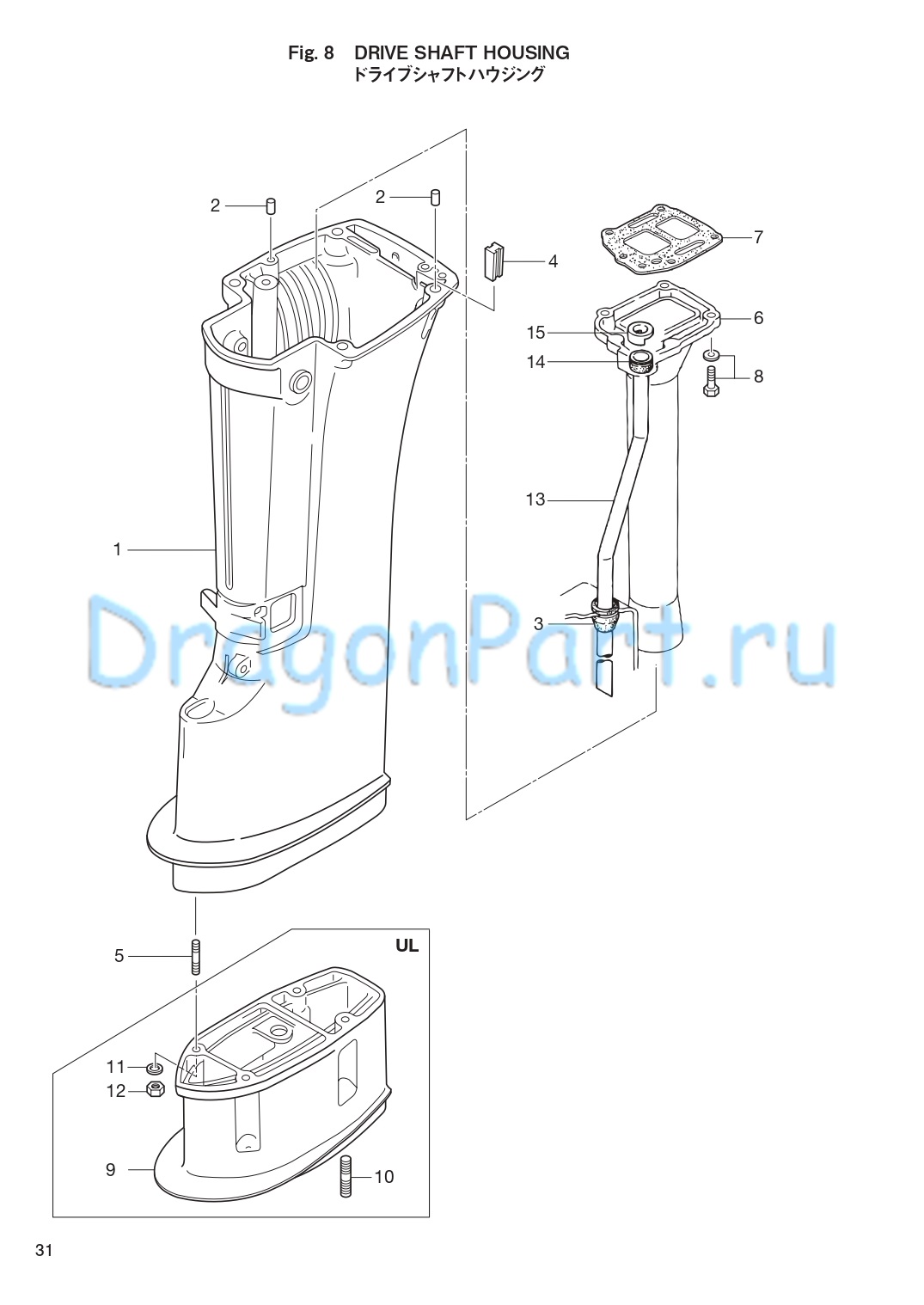

DRIVE SHAFT HOUSING для Tohatsu M9.9D2 - 2012 года выпуска
-
№АртикулНазвание
-
1350Q61191-3 Drive Shaft Housing (S)
for Transom “S”Drive Shaft Housing (S)
for Transom “S” -
1350Q61192-3 Drive Shaft Housing (L)
for Transom “L”，“UL”Drive Shaft Housing (L)
for Transom “L”，“UL” -
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
3350-65204-0 Water Pipe Auxiliary Mount
Water Pipe Guide RubberWater Pipe Auxiliary Mount
Water Pipe Guide Rubber -
4398-61207-0 Idle Exhaust Port GrommetIdle Exhaust Port Grommet
-
59153E3-0825 StudStud
-
6362-02311-0 Exhaust PipeExhaust Pipe
-
7362-02312-2 Exhaust Pipe GasketExhaust Pipe Gasket
-
8910103-5625 BoltBolt
-
9350Q61110-0 Extension Housing
for Transom “UL”Extension Housing
for Transom “UL” -
109153E3-0825 Stud
for Transom “UL”Stud
for Transom “UL” -
113P0-66233-0 Washer 8.1-16-1.5
for Transom “UL”Washer 8.1-16-1.5
for Transom “UL” -
12930103-0800 Nut
for Transom “UL”Nut
for Transom “UL” -
13350-65100-0 Water Pipe (S)
for Transom “S”Water Pipe (S)
for Transom “S” -
13350-65110-0 Water Pipe (L)
for Transom “L”Water Pipe (L)
for Transom “L” -
13350-65120-0 Water Pipe (Ul)
for Transom “UL”Water Pipe (Ul)
for Transom “UL” -
14350-65206-0 Water Pipe Seal (Upper)Water Pipe Seal (Upper)
-
15350-65205-0 CollarCollar
