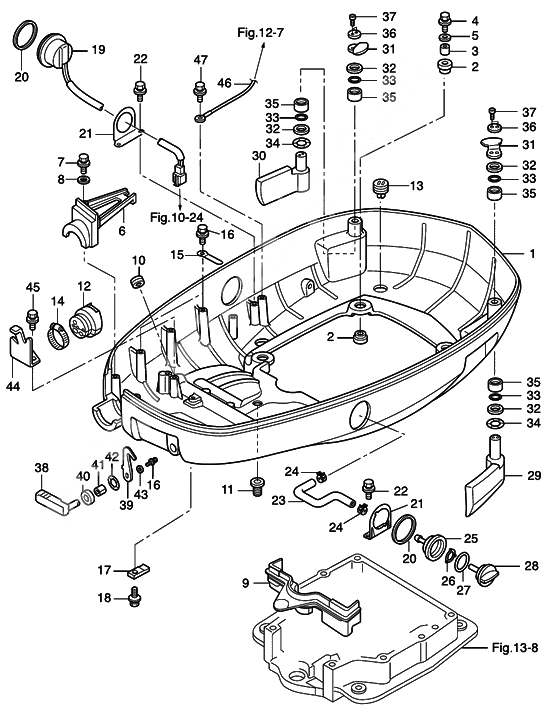

Bottom cowl для Tohatsu MD115A2 - 2014 года выпуска
-
№АртикулНазвание
-
13T1Q67100-2 Lower motor cover d75/90c2d115a (amb)Lower motor cover d75/90c2d115a (amb)
-
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-1 Spacer 8.4-12-17Spacer 8.4-12-17
-
3C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
49101E3-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63T1Q76118-0 Cord clamp (amb)Cord clamp (amb)
-
7910103-6625 BoltBolt
-
8940103-0600 WasherWasher
-
93C7-67164-0 Grommet A Lower CoverGrommet A Lower Cover
-
103C7-77156-0 GrommetGrommet
-
11345-66226-0 Grommet, 17-3Grommet, 17-3
-
123T1-76116-1 GrommetGrommet
-
3T1-76116-0 GrommetGrommet
-
133T1-67161-0 GrommetGrommet
-
143R0-02426-0 Clamp,60Clamp,60
-
15398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
16910103-6612 Bolt
CLAMP / HOOK LEVERBolt
CLAMP / HOOK LEVER -
173C7-72577-0 ClampClamp
-
18910103-5616 BoltBolt
-
193AC-72615-0 Ptt switchPtt switch
-
203F3-72616-1 Gasket Ptt Switch Ass'yGasket Ptt Switch Ass'y
-
213T1-72617-0 Bracket ptt switchBracket ptt switch
-
229101E3-5616 Bolt & washerBolt & washer
-
233T1-72410-0 Flushing hoseFlushing hose
-
243T1-07737-1 Clip 17.8Clip 17.8
-
3T1-07437-0 Clip 17.8Clip 17.8
-
253T1-72403-0 Flushing connectorFlushing connector
-
263T1-67147-0 Seal ringSeal ring
-
273R0-07422-0 New partNew part
-
283T1-72404-0 Cap flushing connectorCap flushing connector
-
293T1-67680-0 Hook lever assy (left)Hook lever assy (left)
-
303T1-67681-0 Hook lever assy (right)Hook lever assy (right)
-
313T1-67142-0 Cover HookCover Hook
-
323T1-63731-0 WasherWasher
-
333T1-62435-0 O-ring 3.5-18O-ring 3.5-18
-
343T1-63109-0 Wave WasherWave Washer
-
353C8-77075-0 New partNew part
-
363T1-67146-0 WasherWasher
-
37910203-0520 Bolt
HEXAGON CAP BOLTBolt
HEXAGON CAP BOLT -
383R3Q67141-0 Hook leverHook lever
-
393R3-67142-0 Cover HookCover Hook
-
40338-67147-0 New partNew part
-
41332-67105-1 BushingBushing
-
332-67105-0 BushingBushing
-
42941403-1400 New partNew part
-
433R0-66308-0 WasherWasher
-
443B7-83720-0 Cable ClipCable Clip
-
45910103-6616 BoltBolt
-
463N4-76142-1 Grounding wire
OIL PUMP BRACKET-BOTTOM COWLGrounding wire
OIL PUMP BRACKET-BOTTOM COWL -
3N4-76142-0 Grounding wireGrounding wire
-
47910103-6612 BoltBolt
