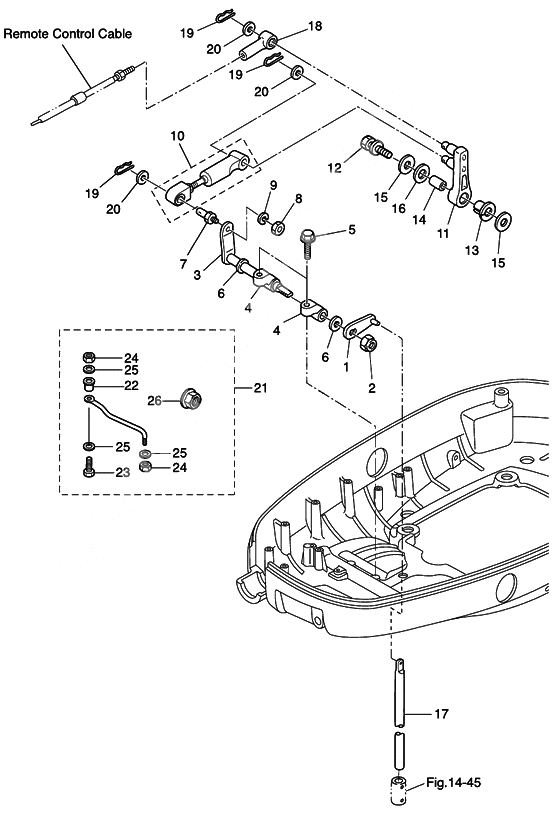

Shift для Tohatsu MD115A2 - 2014 года выпуска
-
№АртикулНазвание
-
13C7-66110-0 Lever Shift RodLever Shift Rod
-
2930403-1000 Nylon NutNylon Nut
-
33C7-66225-0 Shift Lever ShaftShift Lever Shaft
-
4353-66145-1 Holder shift lever shaftHolder shift lever shaft
-
53T1-60108-0 Bolt 8-25 pre-coatedBolt 8-25 pre-coated
-
6332-61315-0 WasherWasher
-
7353-83728-1 Cable PinCable Pin
-
8930103-0600 NutNut
-
9941303-0600 New partNew part
-
103FW-66148-0 Shift assist assyShift assist assy
-
113B7-66122-2 Shift ArmShift Arm
-
3B7-66122-0 Shift ArmShift Arm
-
12910103-6835 BoltBolt
-
133B7-63713-0 BushingBushing
-
143B7-63732-1 CollarCollar
-
3B7-63732-0 CollarCollar
-
153B7-63730-0 WasherWasher
-
163B7-63731-0 WasherWasher
-
17353-66215-1 New partNew part
-
183B7-83715-2 Cable JointCable Joint
-
19951603-0800 R-PinR-Pin
-
203AA-83719-0 WasherWasher
-
213E0-84905-0 Drag link assyDrag link assy
-
223E0-84914-0 Spacer Drag Link HSpacer Drag Link H
-
233E0-84917-0 Bolt 3/8-50Bolt 3/8-50
-
24353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
25353-84916-0 WasherWasher
-
263F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
