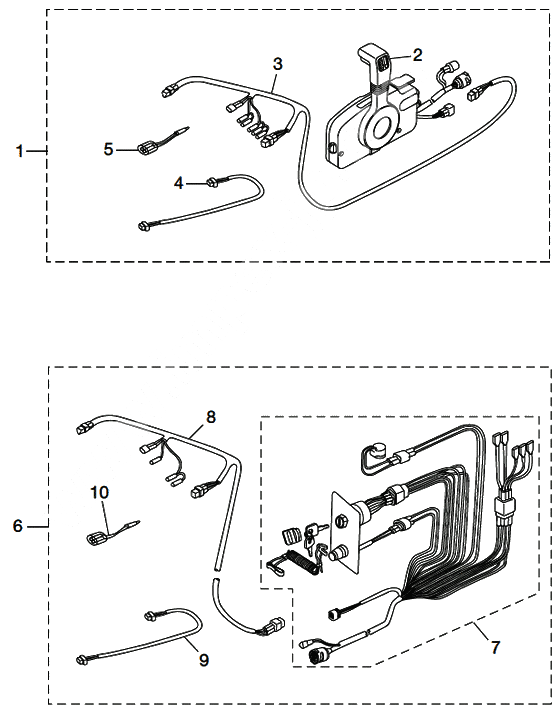

Rigging kit для Tohatsu MD115A2 - 2014 года выпуска
-
№АртикулНазвание
-
13GLQ84550-1 Pre-rigging kit (without meter)
WITH REMOTE CONTROL WITHOUT METERPre-rigging kit (without meter)
WITH REMOTE CONTROL WITHOUT METER -
3GLQ84550-0 Pre-rigging kit (without meter)Pre-rigging kit (without meter)
-
23GFQ84500-0 Remote control assy. (RC5F)
RC5FRemote control assy. (RC5F)
RC5F -
33T5-72537-1 Lead wire meter (l=8000 mm)Lead wire meter (l=8000 mm)
-
43T1-72573-0 Extension cord trim (2-wire) 6mExtension cord trim (2-wire) 6m
-
5353-72548-0 Assist Cord(black)Assist Cord(black)
-
63GM-84550-1 Pre-rig kit 40hp-115hp tldi
WITHOUT REMOTE CONTROL & METERPre-rig kit 40hp-115hp tldi
WITHOUT REMOTE CONTROL & METER -
73GF-84560-0 Rigging control cord (osprey single binnacle)
WITH PANEL MAIN SWITCH & OVER HEAT BUZZERRigging control cord (osprey single binnacle)
WITH PANEL MAIN SWITCH & OVER HEAT BUZZER -
83T5-72537-1 Lead wire meter (l=8000 mm)Lead wire meter (l=8000 mm)
-
93T1-72573-0 Extension cord trim (2-wire) 6mExtension cord trim (2-wire) 6m
-
10353-72548-0 Assist Cord(black)Assist Cord(black)
