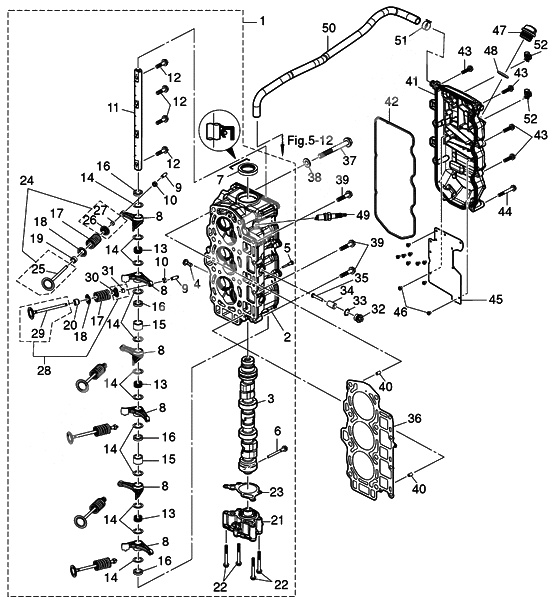

Cylinder head & oil pump для Tohatsu MFS40A - 2014 года выпуска
-
№АртикулНазвание
-
13KYB01000-0 Cylinder head, complete mfs40a/50aCylinder head, complete mfs40a/50a
-
23KYB01001-0 Cylinder head, mfs40a/50a
VALVE GUIDE / VALVE SEATCylinder head, mfs40a/50a
VALVE GUIDE / VALVE SEAT -
33KY-07810-0 Camshaft assyCamshaft assy
-
43KY-07960-0 LifterLifter
-
53KY-07962-0 Lifter boltLifter bolt
-
63KY-07950-0 Thrust bolt
CAMSHAFTThrust bolt
CAMSHAFT -
73V1-00121-0 Oil Seal 30-45-8
CAMSHAFT / UPPEROil Seal 30-45-8
CAMSHAFT / UPPER -
83KY-07935-0 Rocker armRocker arm
-
93KY-07938-0 Adjusting screwAdjusting screw
-
103KY-07937-0 Adjusting NutAdjusting Nut
-
113KY-07920-0 Rocker arm shaftRocker arm shaft
-
123KY-07922-0 Rocker shaft boltRocker shaft bolt
-
133KY-07925-0 Rocker Shaft SpringRocker Shaft Spring
-
143KY-07927-0 WasherWasher
-
153KY-07939-0 Collar, 16-21.7-14.25Collar, 16-21.7-14.25
-
163KZ-07939-0 Collar, 16-21.7-4.25Collar, 16-21.7-4.25
-
173KY-07903-0 Valve springValve spring
-
183KY-07905-0 Valve spring seatValve spring seat
-
193R3-07204-0 Seal, In Valve Stem
BLACKSeal, In Valve Stem
BLACK -
203R3-07206-0 Seal, EX Valve Stem
GREENSeal, EX Valve Stem
GREEN -
213KY-07600-0 Oil pump assyOil pump assy
-
229101E3-5650 BoltBolt
-
233KY-07653-0 Oil pump gasketOil pump gasket
-
243KY-07895-0 Intake valve kitIntake valve kit
-
253KY-07901-0 Intake ValveIntake Valve
-
263KY-07921-0 RetainerRetainer
-
273H6-07223-0 CotterCotter
-
283KY-07896-0 Exhaust valve kitExhaust valve kit
-
293KY-07902-0 Exhaust ValveExhaust Valve
-
303KY-07921-0 RetainerRetainer
-
313H6-07223-0 CotterCotter
-
323P0-01143-0 Anode plugAnode plug
-
333T5-10046-0 O-RingO-Ring
-
343P0-60218-0 AnodeAnode
-
35921503-0530 Stud BoltStud Bolt
-
363KY-01005-0 Cylinder head gasketCylinder head gasket
-
373KY-01013-0 Cylinder head boltCylinder head bolt
-
38940121-1000 WasherWasher
-
393BJ-61017-1 BoltBolt
-
40345-01111-0 Dowel Pin 6-12
CYLINDER BLOCK-CYLINDER HEADDowel Pin 6-12
CYLINDER BLOCK-CYLINDER HEAD -
413KYB01020-0 Cylinder head coverCylinder head cover
-
423KY-01024-0 Cylinder head cover gasketCylinder head cover gasket
-
43910103-5625 BoltBolt
-
44910103-5645 BoltBolt
-
453KY-07731-0 Breather chamber coverBreather chamber cover
-
46921521-0406 Stud BoltStud Bolt
-
473R0-71015-1 Filler Cap,Engine OilFiller Cap,Engine Oil
-
483R0-07422-0 New partNew part
-
499701-1-1103 Spark plug (dcpr6e)
NGKSpark plug (dcpr6e)
NGK -
503KY-07735-0 Breather hose
CYLINDER HEAD COVER-INTAKE SILENCERBreather hose
CYLINDER HEAD COVER-INTAKE SILENCER -
513R0-07737-1 Clip @15.5-local purchaseClip @15.5-local purchase
-
523KY-84398-0 BandBand
