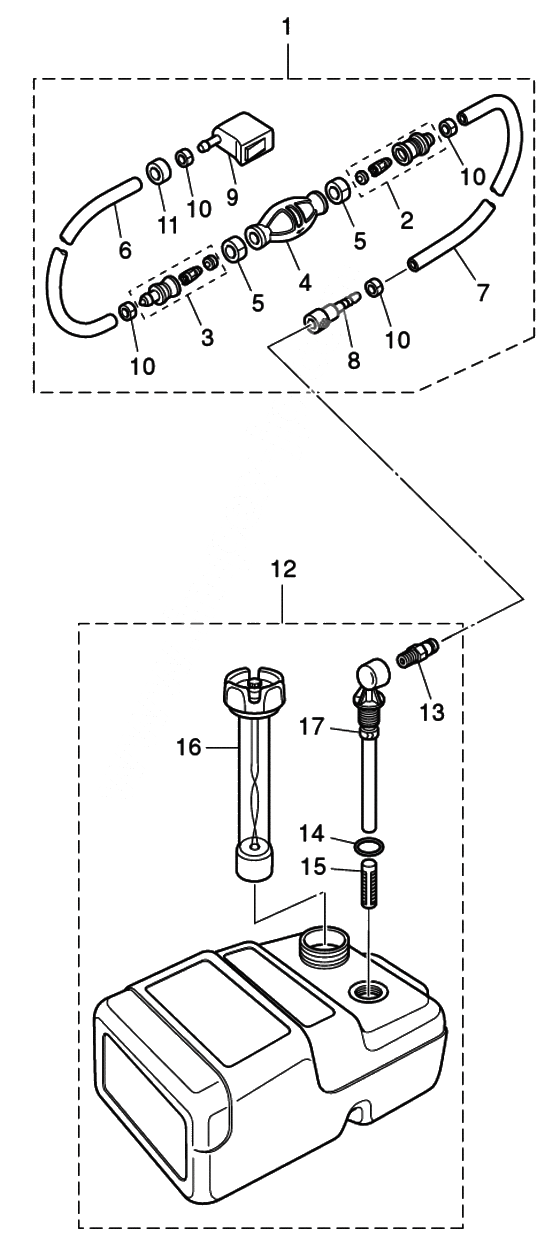

Fuel tank для Tohatsu MFS40A - 2014 года выпуска
-
№АртикулНазвание
-
13AD-70200-2 Primer bulb assy (low permeation)
LOW PERMEATION PARTS / FOR USA MODELPrimer bulb assy (low permeation)
LOW PERMEATION PARTS / FOR USA MODEL -
13H6-70200-2 Primer bulb assy (4-stroke - 4-30hp)
STDPrimer bulb assy (4-stroke - 4-30hp)
STD -
23C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
33C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
43GF-70211-1 Primer bulb low permeation
LOW PERMEATION PARTS / FOR USA MODELPrimer bulb low permeation
LOW PERMEATION PARTS / FOR USA MODEL -
43C7-70211-1 Primer Bulb
STDPrimer Bulb
STD -
53C7-70217-0 ClampClamp
-
63GF-70241-1 Hose (low permeation)
LOW PERMEATION PARTS / FOR USA MODELHose (low permeation)
LOW PERMEATION PARTS / FOR USA MODEL -
3GF-70241-0 Hose (low permeation)Hose (low permeation)
-
698AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
73GF-70240-1 Hose (low permeation)
LOW PERMEATION PARTS / FOR USA MODELHose (low permeation)
LOW PERMEATION PARTS / FOR USA MODEL -
3GF-70240-0 Hose (low permeation)Hose (low permeation)
-
798AB70160-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000X2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000X2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
83GF-70281-0 Fuel connector
TANK SIDE / FOR USA MODELFuel connector
TANK SIDE / FOR USA MODEL -
93GR-70250-0 Fuel conn engine side female 4 stroke 4-30
ENGINE SIDE / FOR USA MODELFuel conn engine side female 4 stroke 4-30
ENGINE SIDE / FOR USA MODEL -
10332-70201-0 ClampClamp
-
113GR-70280-0 Fuel connector mark
LOW PERMEATION PARTS / FOR USA MODELFuel connector mark
LOW PERMEATION PARTS / FOR USA MODEL -
123AC-70177-2 Fuel tank 25l (6.6 gal) epa cap (tohatsu)
FOR USA MODEL / TOHATSUFuel tank 25l (6.6 gal) epa cap (tohatsu)
FOR USA MODEL / TOHATSU -
3AC-70177-1 Fuel tank 25l (6.6 gal) epa cap (tohatsu)Fuel tank 25l (6.6 gal) epa cap (tohatsu)
-
123AE-70177-1 Fuel tank 25l (6.6 gal) epa cap (nissan)
FOR USA MODEL / NISSANFuel tank 25l (6.6 gal) epa cap (nissan)
FOR USA MODEL / NISSAN -
123C7-70177-1 Fuel tank 25l (6.6 gal) epa cap (tohatsu)Fuel tank 25l (6.6 gal) epa cap (tohatsu)
-
3AC-70177-1 Fuel tank 25l (6.6 gal) epa cap (tohatsu)Fuel tank 25l (6.6 gal) epa cap (tohatsu)
-
133E0-70270-0 New partNew part
-
143C7-70199-0 O-RingO-Ring
-
153C7-70113-0 FilterFilter
-
163C7-70050-1 Fuel gauge vented cap 6 gal tankFuel gauge vented cap 6 gal tank
-
173C7-70155-0 Fuel PickupFuel Pickup
