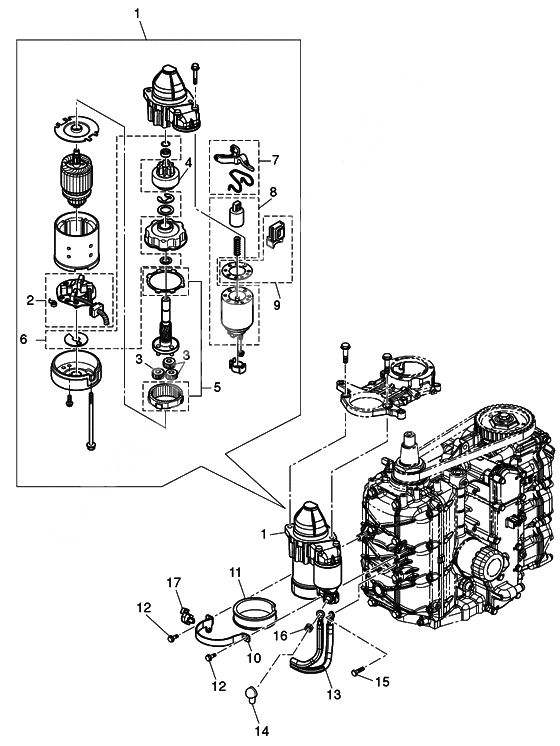

Electric parts (starter motor) для Tohatsu MFS40A - 2014 года выпуска
-
№АртикулНазвание
-
13KY-76010-0 Starter motor assyStarter motor assy
-
23FW-76014-0 Brush HolderBrush Holder
-
33FW-76314-0 Internal gearInternal gear
-
43FW-76015-0 Pinion assyPinion assy
-
53FW-76317-0 Planet gearPlanet gear
-
63FW-76318-0 Washer set starterWasher set starter
-
73FW-76320-0 Shift lever setShift lever set
-
83FW-76321-0 Magnetic switchMagnetic switch
-
93FW-76322-0 Dust cover setDust cover set
-
103KY-76009-0 Starter motor bandStarter motor band
-
113FW-76007-0 DamperDamper
-
12910103-5616 BoltBolt
-
133FW-76120-0 Battery cord d75/90c2Battery cord d75/90c2
-
143FW-76145-0 Terminal Cap
REDTerminal Cap
RED -
15910103-5612 Bolt
BATTERY CABLE-GROUNDBolt
BATTERY CABLE-GROUND -
16930103-0800 Nut
STARTER MOTORNut
STARTER MOTOR -
173BJ-84398-0 Lead wire band 135Lead wire band 135
