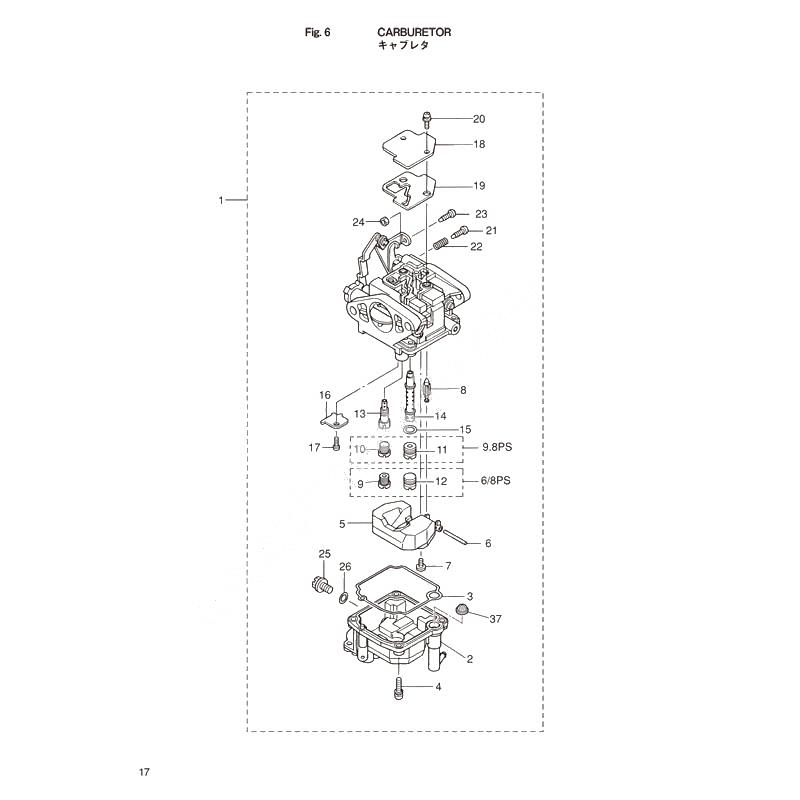

Carburetor для Tohatsu MFS8B - 2016 года выпуска
-
№АртикулНазвание
-
13V1-03133-3 キャブレタアッシ (EP)
EPモデルキャブレタアッシ (EP)
EPモデル -
23V1-03120-0 Float ChamberFloat Chamber
-
33V1-03121-0 Gasket,float ChamberGasket,float Chamber
-
4922503-6412 ScrewScrew
-
53C8-03125-0 FloatFloat
-
63C8-03126-0 Float Arm PinFloat Arm Pin
-
7921703-0406 ScrewScrew
-
83V1-03147-1 Float ValveFloat Valve
-
93V1-04476-0 Main Jet #76Main Jet #76
-
103V2-03169-0 PlugPlug
-
133V1-04539-0 Slow Jet#39Slow Jet#39
-
143V1-03141-0 Main NozzleMain Nozzle
-
153V1-03116-0 O-RingO-Ring
-
163V1-03128-0 PleatPleat
-
17922503-0305 ScrewScrew
-
183C8-03181-0 Cover PlateCover Plate
-
193V1-03182-0 Gasket,Cabretor CoverGasket,Cabretor Cover
-
20922503-6410 ScrewScrew
-
213V2-03179-0 Stop ScrewStop Screw
-
223V2-03157-0 SpringSpring
-
233V1-03179-0 Stop Screw
FモデルStop Screw
Fモデル -
243V1-03191-0 Nut
FモデルNut
Fモデル -
253V1-03192-0 Drain ScrewDrain Screw
-
263V1-03193-0 GasketGasket
-
373BJ-02234-0 Fuel FilterFuel Filter
