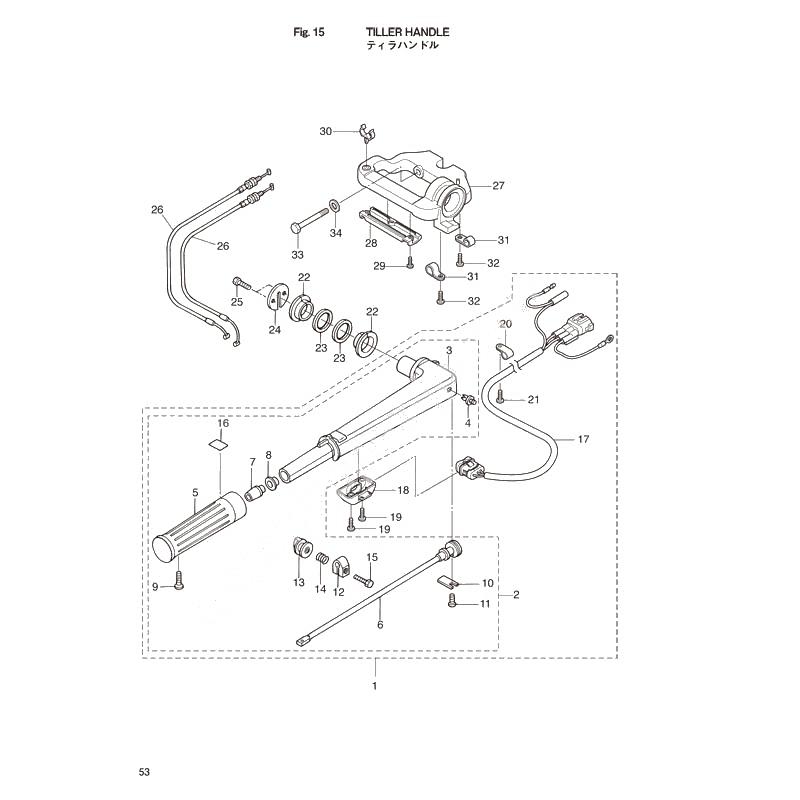

Tiller handle для Tohatsu MFS8B - 2016 года выпуска`
![](/wa-data/public/shop/sheme/tohatsu/3a89bb14f67550d7a1e07b06387c2b7a.jpg)
-
№АртикулНазвание
-
23V1Q63003-5 ティラハンドルアッシ
MF/EFモデルティラハンドルアッシ
MF/EFモデル -
33V1Q63011-3 ティラハンドルティラハンドル
-
4350-67154-0 プラスチック リベット 6.5プラスチック リベット 6.5
-
53R3-63012-0 グリップグリップ
-
63V1-63041-0 Throttle ShaftThrottle Shaft
-
73H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
83H6-63510-0 Bushing, 14-15.8-7Bushing, 14-15.8-7
-
9920803-0518 ScrewScrew
-
103B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
119215E3-0612 ScrewScrew
-
921503-0612 ScrewScrew
-
123V1-63035-1 Friction PiceceFriction Picece
-
133V1-63077-0 Adjusting NutAdjusting Nut
-
143V1-63036-0 SpringSpring
-
159101E3-0625 New partNew part
-
910103-0625 New partNew part
-
163V9-72019-0 Label,ThrottleLabel,Throttle
-
223V1-63102-0 BushingBushing
-
233V1-63108-1 WasherWasher
-
243V1-63107-0 CoverCover
-
259101E3-0616 BoltBolt
-
910103-0616 BoltBolt
-
263V1-63600-0 Throttle WireThrottle Wire
