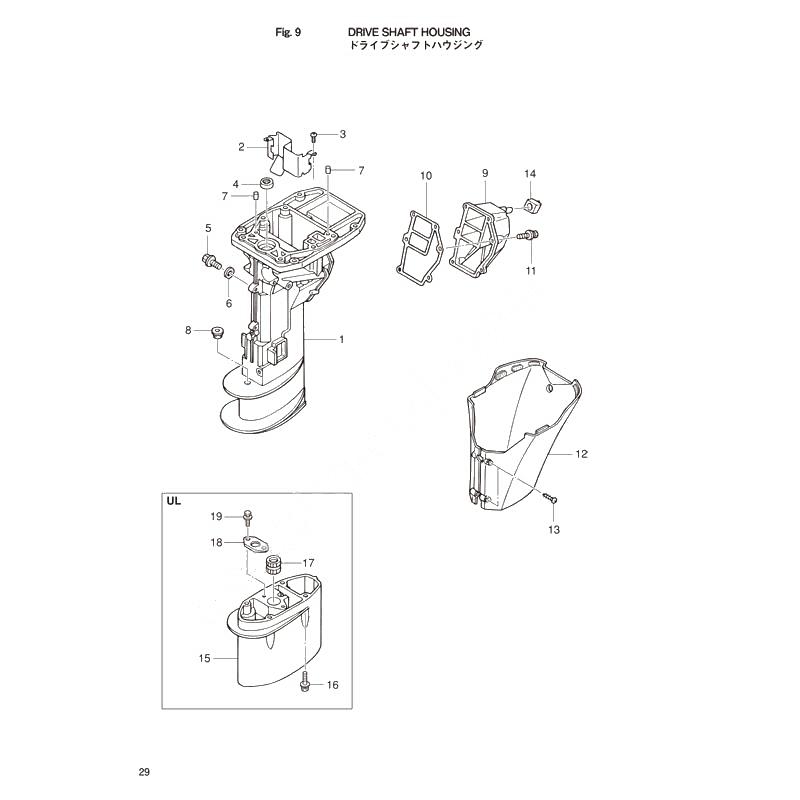

Drive shaft housing для Tohatsu MFS8B - 2016 года выпуска
-
№АртикулНазвание
-
13V1Q61030-1 ドライブシャフトハウジングアッシ (L)
トランサムL&ULモデルドライブシャフトハウジングアッシ (L)
トランサムL&ULモデル -
23V1-07440-1 ガイドプレートガイドプレート
-
3921503-6510 ScrewScrew
-
43B2-01215-0 オイルシール 12-28-5オイルシール 12-28-5
-
53R3-07705-1 Bolt, DrainBolt, Drain
-
63R3-07406-0 Washer, 14.5-24-1Washer, 14.5-24-1
-
7345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
8369-66043-1 Grommet Cam RodGrommet Cam Rod
-
93V1-61208-0 Cover,Idol PortCover,Idol Port
-
103V1-61220-0 Gasket,Idle PortGasket,Idle Port
-
119101E3-5620 BoltBolt
-
123V1Q61225-0 ApronApron
-
133F3-02423-0 Screw 5-30Screw 5-30
-
143V1-61212-0 Grommet,Idle PortGrommet,Idle Port
