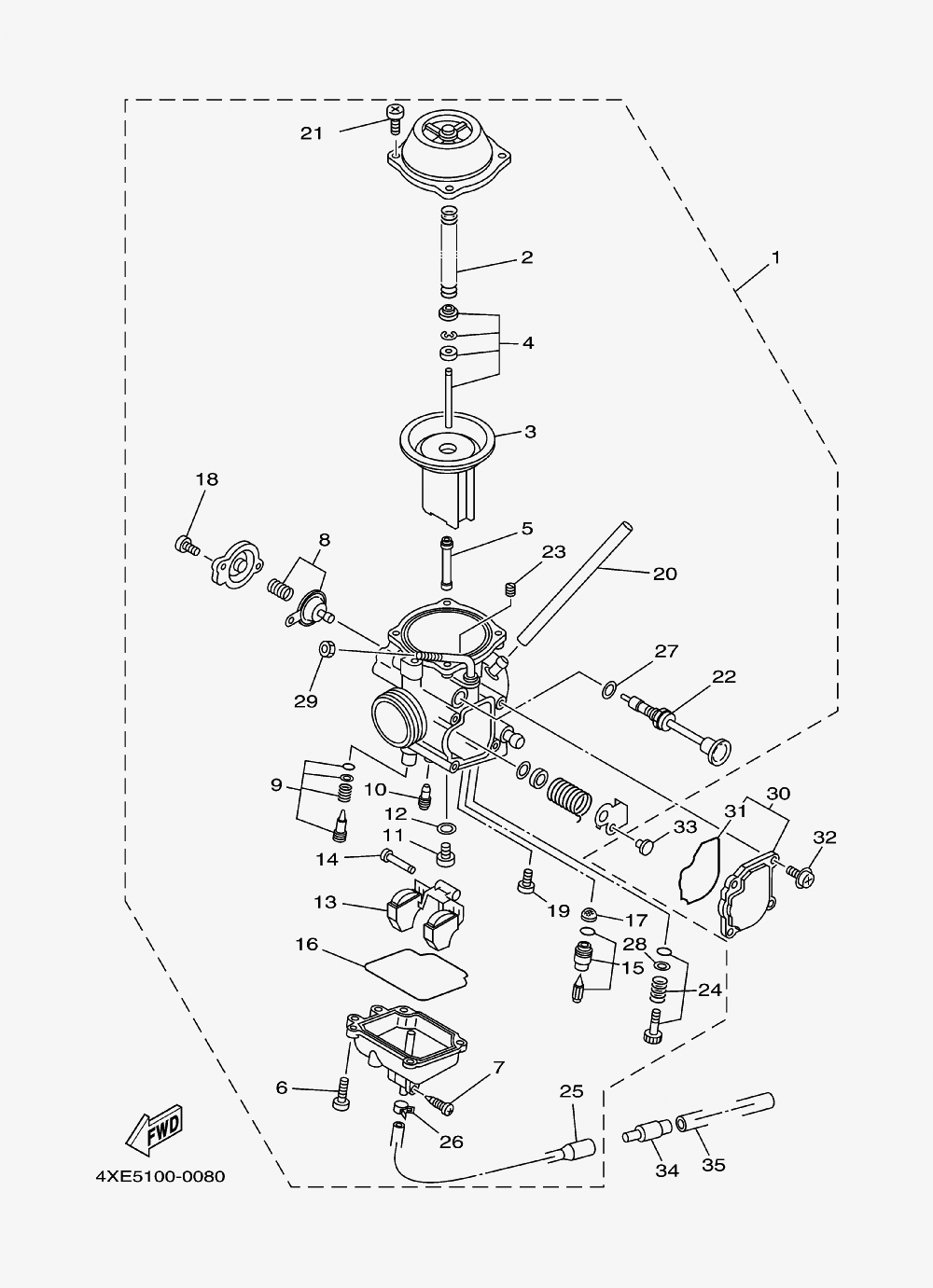

CARBURETOR для Yamaha BEARTRACKER 2WD YFM250M (4XE5) - 2000 года выпуска
-
№АртикулНазвание
-
14XE-14140-01-00 CARB. SUB ASSY (EXCEPT CALIF)CARB. SUB ASSY (EXCEPT CALIF)
-
14XE-14140-11-00 CARB. SUB ASSY (CALIF ONLY)CARB. SUB ASSY (CALIF ONLY)
-
24XE-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
34WU-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
44XE-1490J-00-00 ...NEEDLE SET (EXCEPT CALIF)...NEEDLE SET (EXCEPT CALIF)
-
44XE-1490J-10-00 ...NEEDLE SET (CALIF ONLY)...NEEDLE SET (CALIF ONLY)
-
54WU-14141-42-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
698507-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
712R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
826H-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
94RF-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
104G0-14142-42-00 ...JET, PILOT ( 42.5)...JET, PILOT ( 42.5)
-
11620-14231-19-00 ...JET, MAIN ( 95)...JET, MAIN ( 95)
-
12137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
132VA-14185-00-00 ...FLOAT...FLOAT
-
14537-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
151UY-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
162LN-14147-00-00 ...O-RING...O-RING
-
171J7-14994-00-00 ...NET, FILTER...NET, FILTER
-
181UY-14565-00-00 ...SCREW, PANHEAD...SCREW, PANHEAD
-
192LN-14565-00-00 ...SCREW STOP...SCREW STOP
-
202J2-14197-00-00 ...HOSE...HOSE
-
2198507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
224KB-14993-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
232A2-14172-16-00 ...PILOT JET, AIR (1.6)...PILOT JET, AIR (1.6)
-
242VA-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
254KB-14193-20-00 ...PIPE...PIPE
-
264XE-14937-00-00 ...CLIP...CLIP
-
274KB-14285-00-00 ...WASHER...WASHER
-
2822U-14952-00-00 ...WASHER...WASHER
-
29522-14161-00-00 ...NUT, CABLE ADJ...NUT, CABLE ADJ
-
304XE-14480-00-00 COVER SUB ASSYCOVER SUB ASSY
-
314KB-14147-00-00 ...O-RING...O-RING
-
321UY-14565-00-00 SCREW, PANHEADSCREW, PANHEAD
-
331UY-14155-00-00 GUIDE, CABLEGUIDE, CABLE
-
3424W-14193-00-00 PIPEPIPE
-
3591A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
